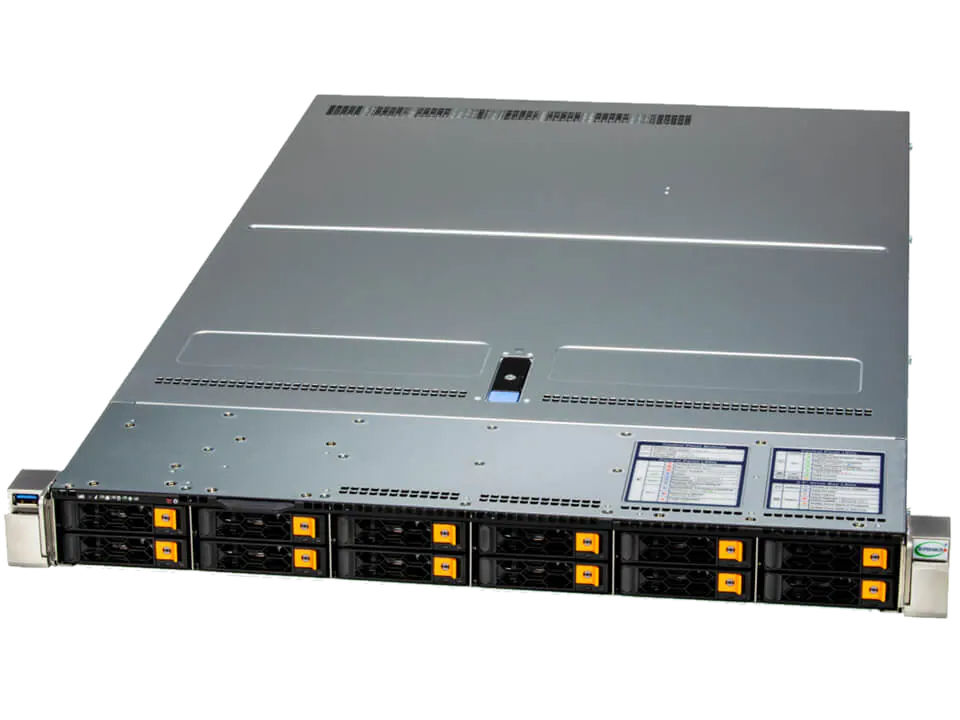

MegaDC ARS-111M-NR
- Form Factor 1U Rackmount
- Supported CPU Ampere AmprereOne
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
- Drive Bays 12 front hot-swap 2.5" NVMe Hot swap 2.5" Drive Bays
-
Power Supply
860 W Titanium Redundant
Key Applications
- Enterprise Server
- Hyperscale Data Center
- Front End Server
- Infrastructure
Key Features
- Processor: Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores); Up to 400W TDP
- Memory: 16 DIMMs; Up to 4TB ECC Registered DDR5-5600MHz RDIMM/LRDIMM
- Expansion: 3 PCIe 5.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
- Networking: 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
- Storage: 10x 2.5" U.2 NVMe Hot-Swap Drive Bays
- Power: 860W Redundant Titanium Level High-efficiency Power Supplies

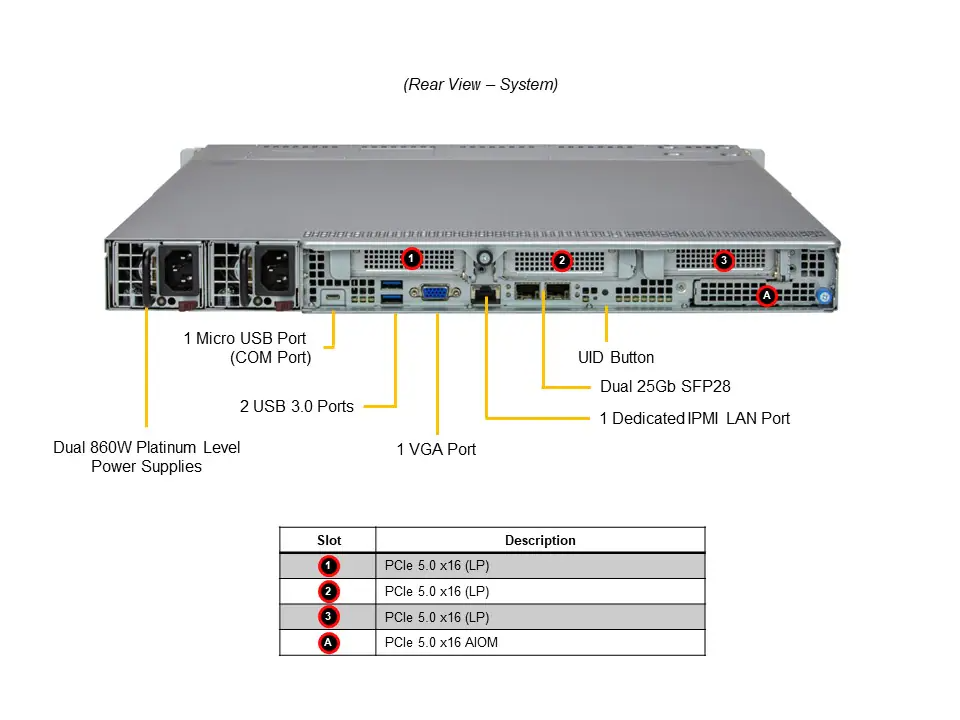

- I/O: 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 192
- TDP 250 W
- M.2 1 M.2 NVMe slot (M-key 22110)
- PCI-e Default: 3 PCIe 5.0 x16 LP slots
- Dimensions 1.7" (43.18 mm) Height
- Dimensions 17.2" (436.88 mm) Width
- Dimensions 23.5" (596.9 mm) Depth
- Product Model ARS-111M-NR
- LAN 2 SFP28 25GbE
- NVMe 12 NVMe
- USB 2 USB 3.0 ports(rear)
- Video Output 1 1 VGA port
- DIMM Type LRDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
