Storage ARS-121L-NE316R
- Form Factor 1U Rackmount
- Supported CPU NVIDIA Grace CPU Superchip
- CPU Socket 1
-
Max Supported Memory
960 GB DDR5 ECC Supported
- Drive Bays 16 Hot Swap E3.S1T NVMe
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Software-defined Storage
- In-Memory Computing
- Data Intensive HPC
- Private & Hybrid Cloud
- NVMe Over Fabrics Solution
Key Features

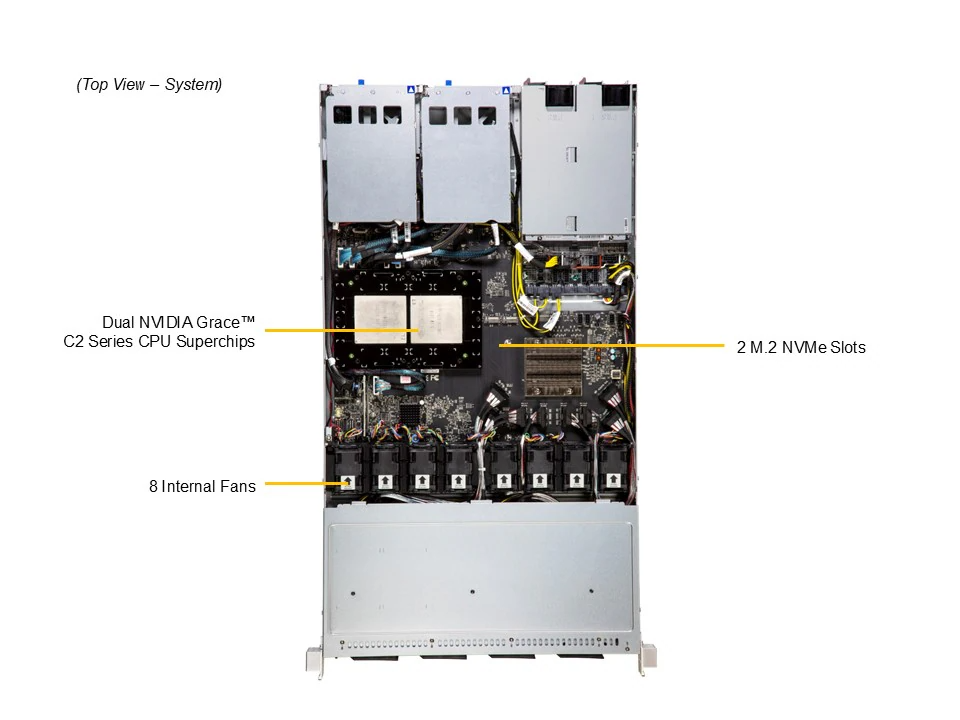

- NVIDIA Grace™ CPU Superchip (Dual-Core), 144 ARM v9 cores, TDP 500W
- Up to 960GB LPDDR onboard memory

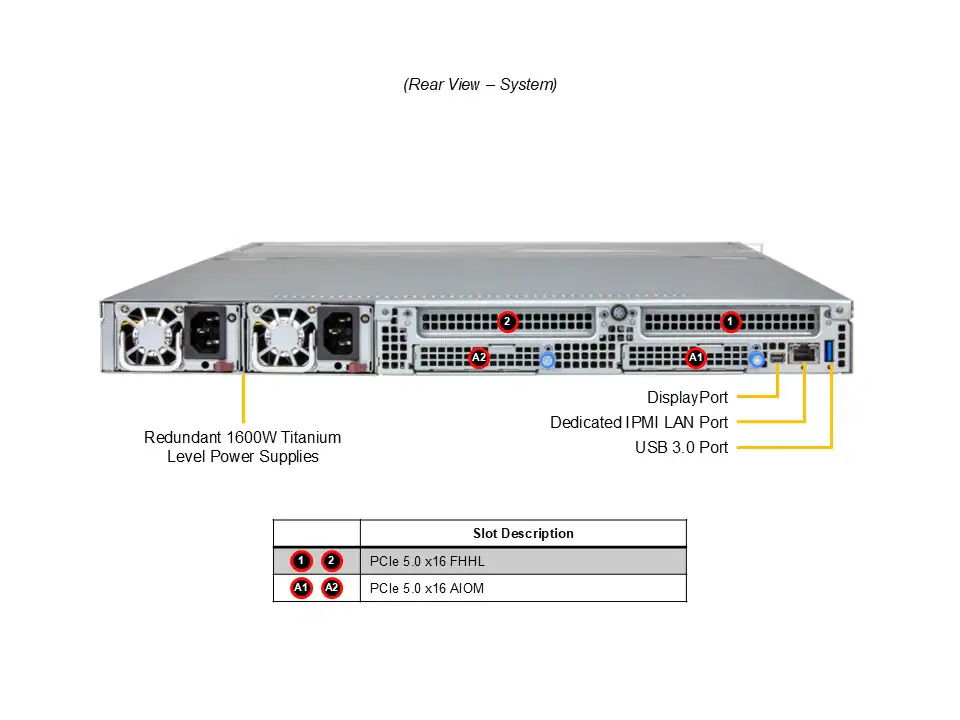

- 2 PCIe 5.0 x16 FHHL slots & 2 AIOM connector (OCP 3.0 SFF Compliant)

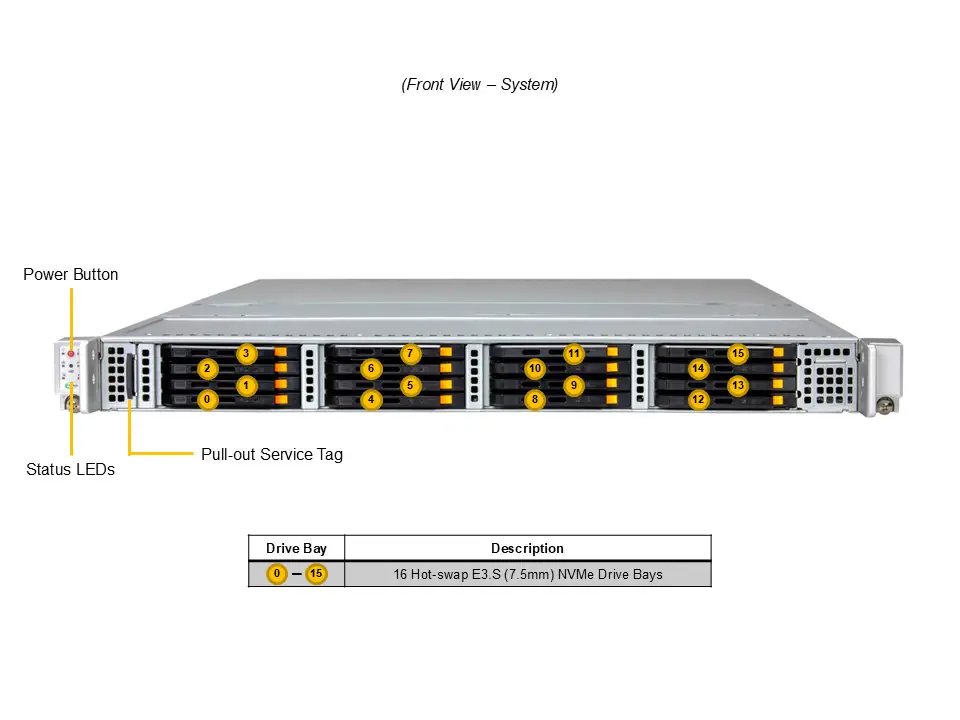

- 16 Front Hot-Swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 600 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 2 PCIe 5.0 x16 FHFL slots
- Dimensions 1.7" (43.6 mm) Height
- Dimensions 17.26" (438.4 mm) Width
- Dimensions 30.4" (772.15 mm) Depth
- Product Model ARS-121L-NE316R
- LAN 1 RJ45 1 GbE
- NVMe 16 E1.s NVMe
- USB 1 USB 3.0 Type-A port(Rear)
- Video Output 1 mini-DP
- DIMM Type LPDDR5X
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
