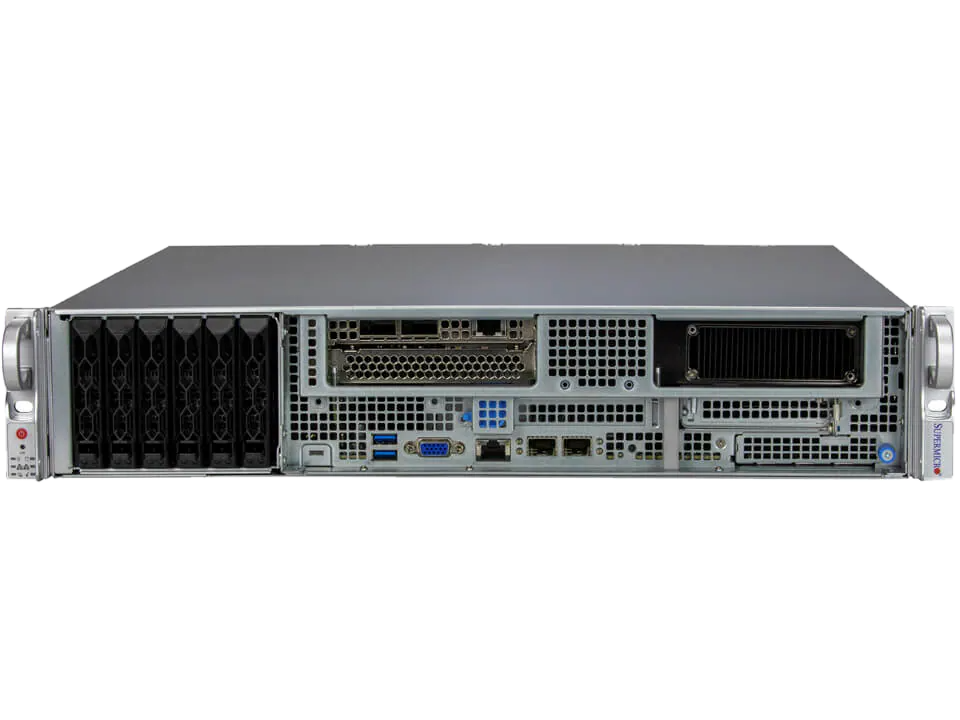

ARS-211ME-FNR
- Form Factor 2U Rackmount
- Supported CPU Ampere AmprereOne
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported

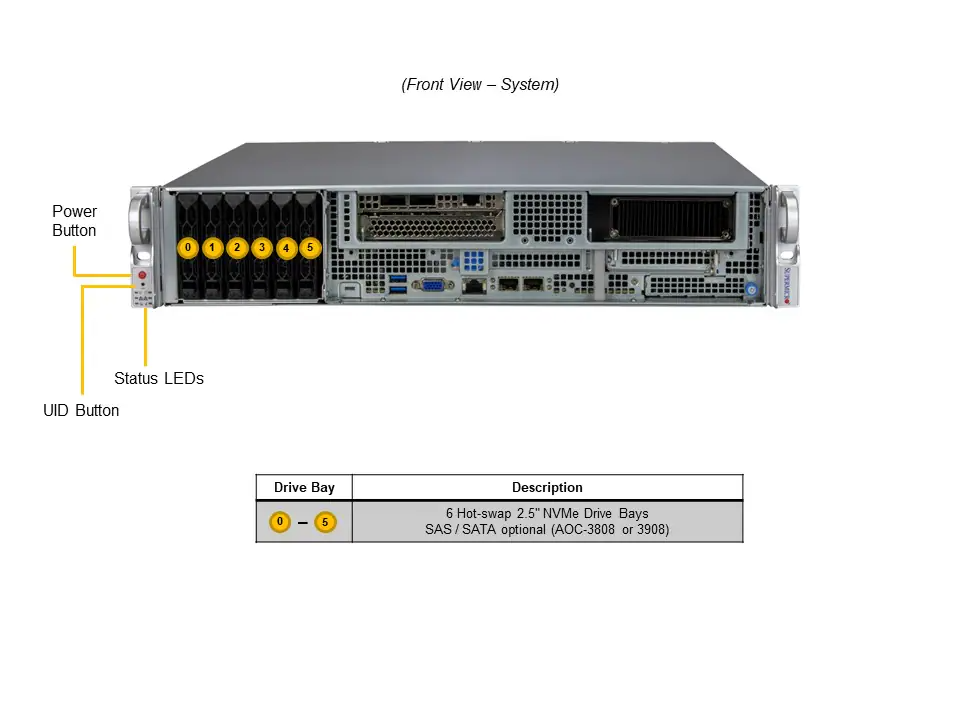

- Drive Bays 6 front hot-swap 2.5" NVMe Hot swap 2.5" Drive Bays
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Telco Edge
- Cloud Service Providers
- Open-RAN
- Artificial Intelligence (AI) on Edge
Key Features

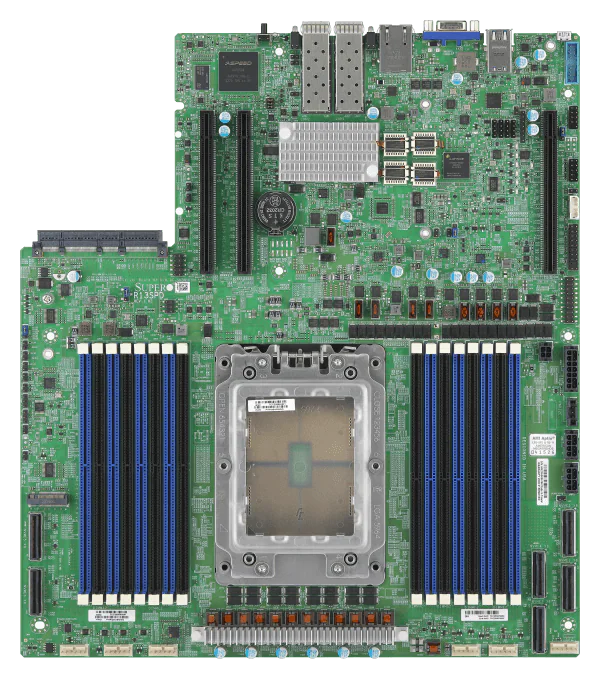

- Processor: Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores; Up to 3.2GHz); Up to 400W TDP
- Memory: 16 DIMMs; Up to 4TB ECC Registered DDR5-5600/4800MHz RDIMM/LRDIMM

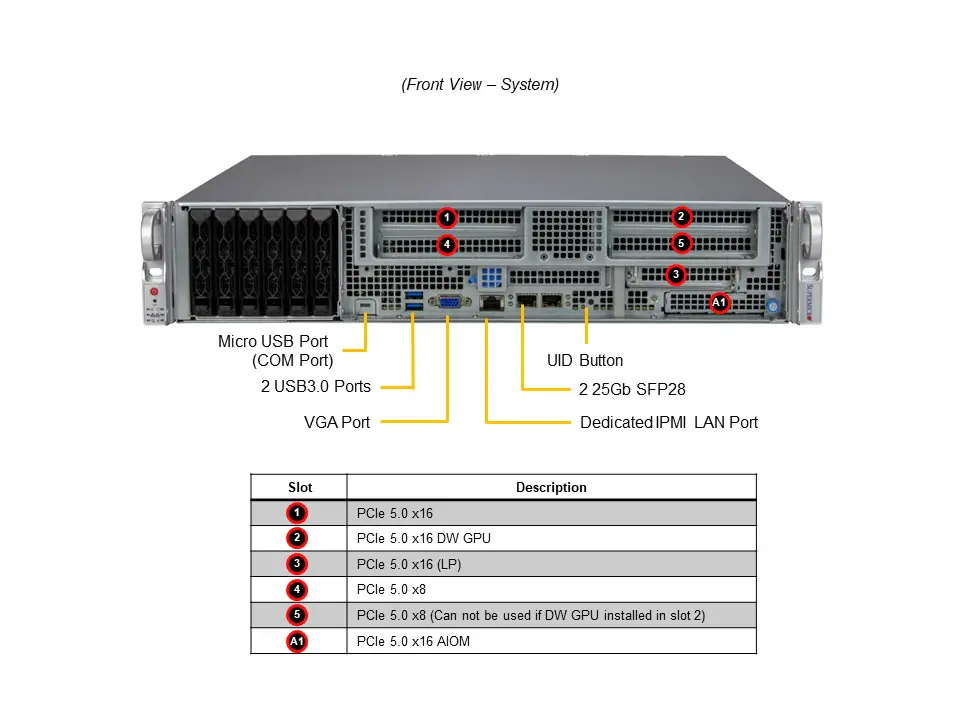

- Expansion / GPU Support: Supports 1 PCIe 5.0 x16 Double Wide FPFL GPU Card (or 1 PCIe 5.0 x16 FPFL Single Slot and 1 PCIe 5.0 x8 FPFL Single Slot), 1 PCIe 5.0 x16 FPHL Slot, 1 PCIe 5.0 x8 FPHL Slot, 1 PCIe 5.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
- Networking: 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
- Storage: 6x 2.5" U.2 NVMe Hot-Swap Drive Bays
- Power: 1600W Redundant Titanium Level High-efficiency Power Supplies
- I/O: 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 192
- TDP 400 W
- M.2 1 M.2 NVMe slot (M-key 22110)
- PCI-e Default: 2 PCIe 5.0 x8 FHFL slots
- Dimensions 17" (431.8 mm) Depth
- Dimensions 17.2" (436.88 mm) Width
- Dimensions 3.5" (88.9 mm) Height
- Product Model ARS-211ME-FNR
- LAN 2 SFP28 25 GbE
- NVMe 6 NVMe
- USB 2 USB 3.0 ports(front)
- Video Output 1 1 VGA port
- DIMM Type LRDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
