MicroCloud A+ Server AS -3015MR-H5TNR
- Form Factor 3U Rackmount
- Supported CPUs AMD EPYC 4004
- AMD EPYC 4005
- AMD Ryzen 7000
- AMD Ryzen 9000
- CPU Sockets 5
-
Max Supported Memory
960 GB DDR5 ECC Supported
- Drive Bays 2 internal fixed 2.5" PCIe 5.0 NVMe Fixed 2.5" Drive Bays
-
Power Supply
2000 W Titanium Redundant
Key Applications
- Cloud Computing
- Web / Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate – WINS, DNS, Print, Login
Key Features
- Single Socket AM5 (LGA-1718) AMD EPYC™ 4005 / 4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling

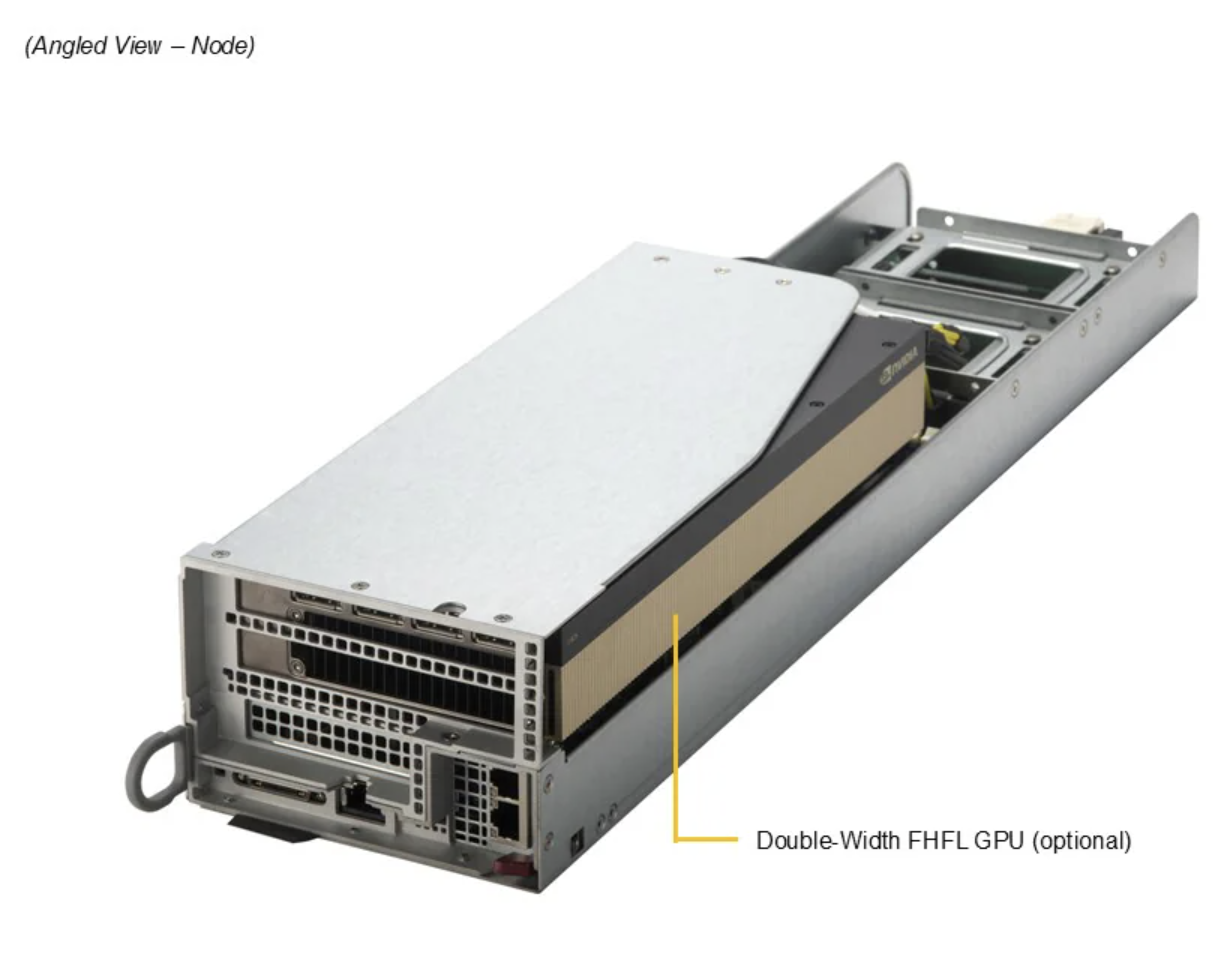

- Support for up to 1 double-width PCIe GPU accelerator card
- Up to 4 DIMMs supporting up to 192 GB DDR5-5600 MT/s (1DPC) / 3600 MT/s (2DPC)

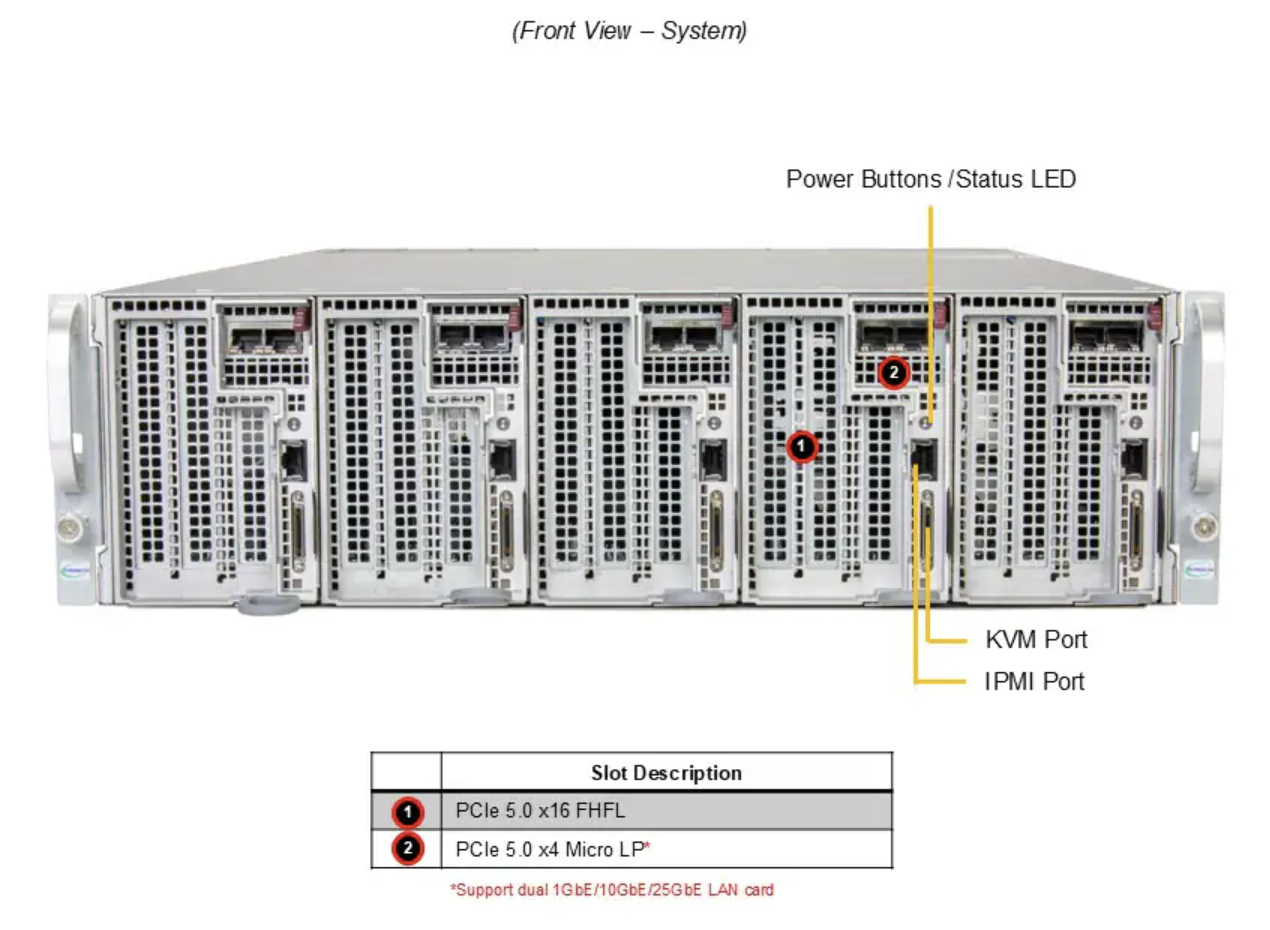

- Up to 1 PCIe 5.0 ×16 LP + 1 PCIe 5.0 ×4 MicroLP slots

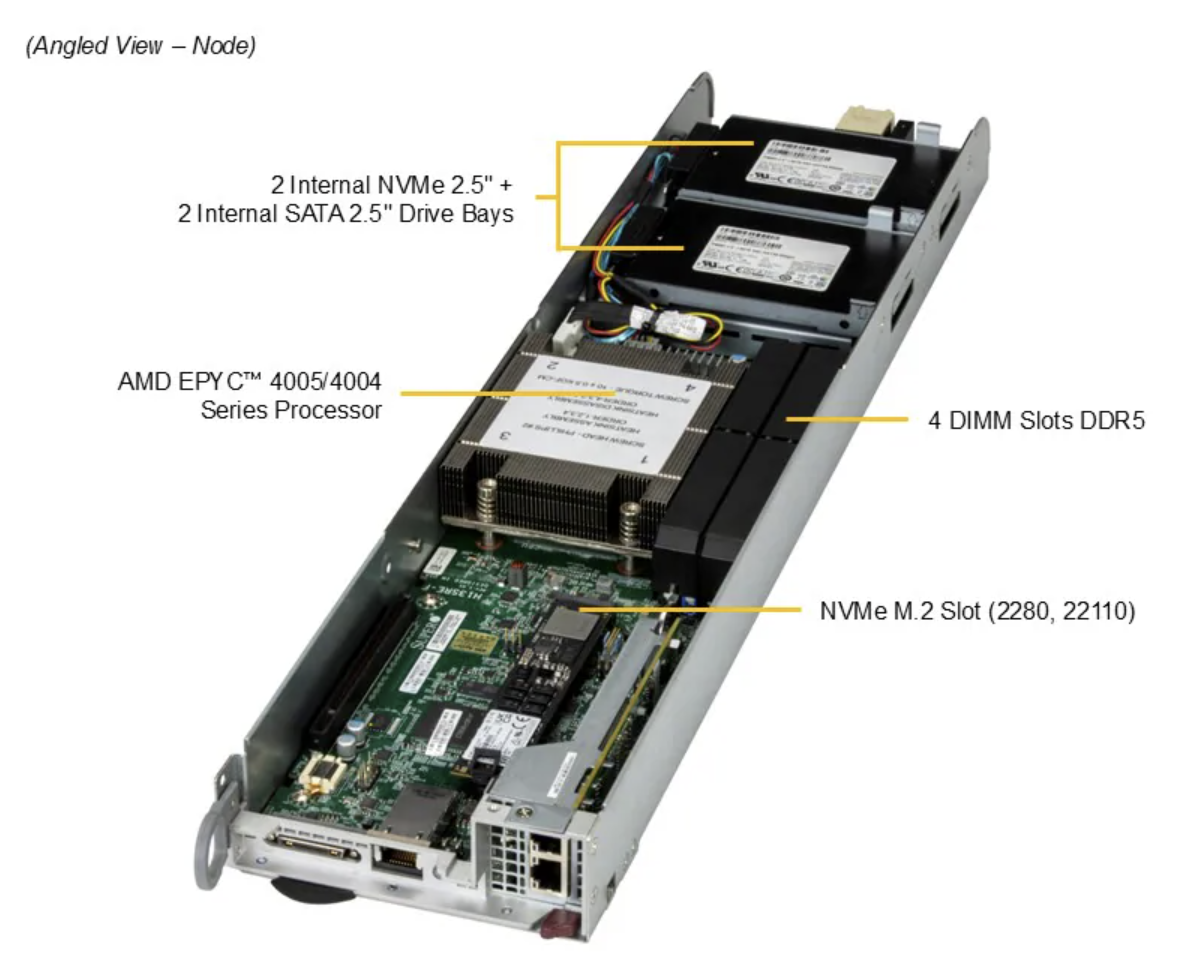

- Up to 2 internal fixed 2.5″ NVMe + 2 internal fixed 2.5″ SATA drive bays

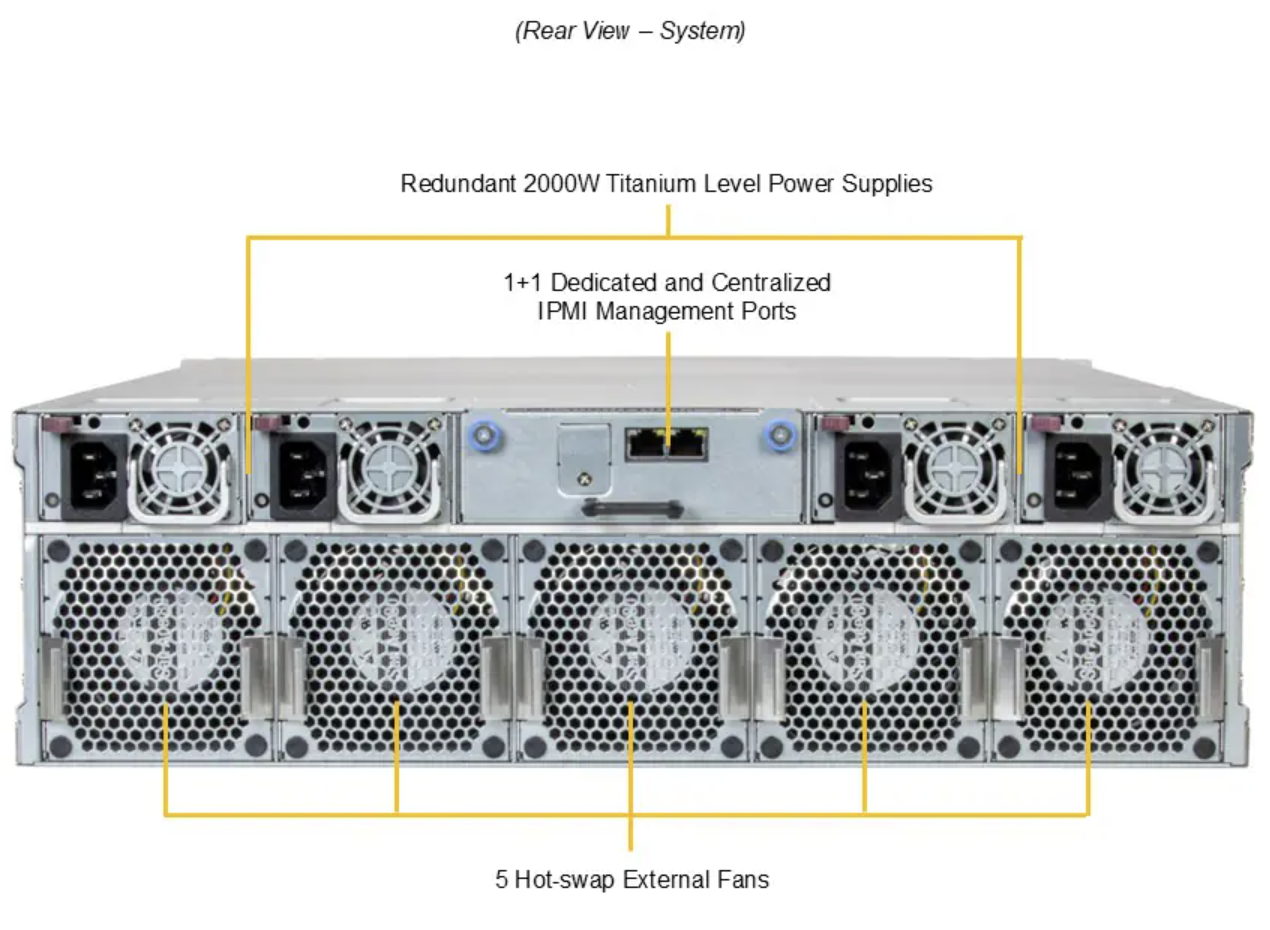

- 4 Redundant 2000W Titanium Level power supplies

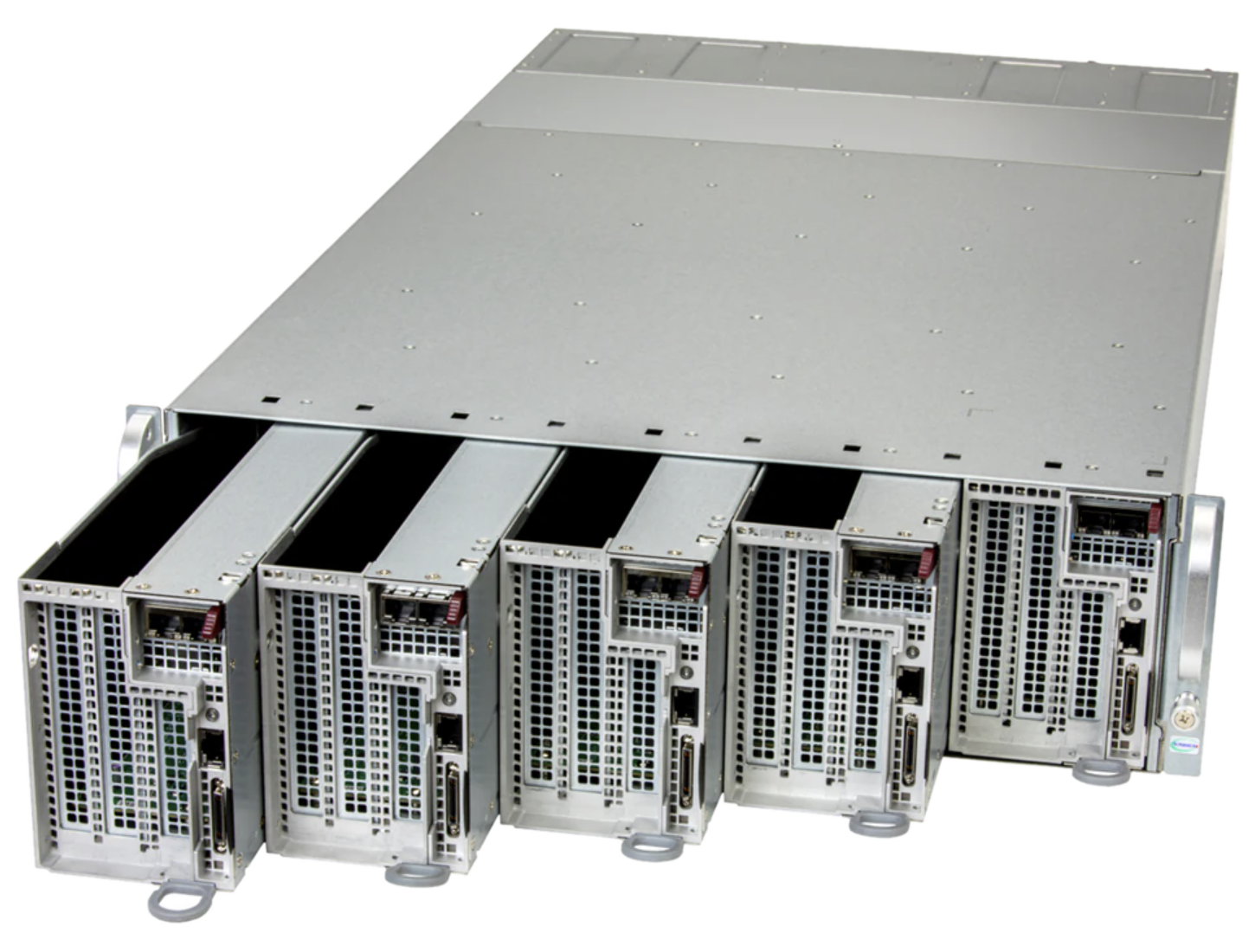

- 3U Rackmount chassis with 30.51″ (775 mm) depth
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 16
- TDP 170 W
- M.2 1 NVMe M.2 slot Per Node
- PCI-e Default: 1 PCIe 5.0 x16 FHFL double-width slot Per Node
- Dimensions 17.68" (449 mm) Width
- Dimensions 30.51" (775 mm) Depth
- Dimensions 5.16" (131 mm) Height
- Product Model AS-3015MR-H5TNR
- LAN 1 RJ45 1 GbE
- NVMe 2
- USB KVM Port
- Video Output KVM Port
- DIMM Type UDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
