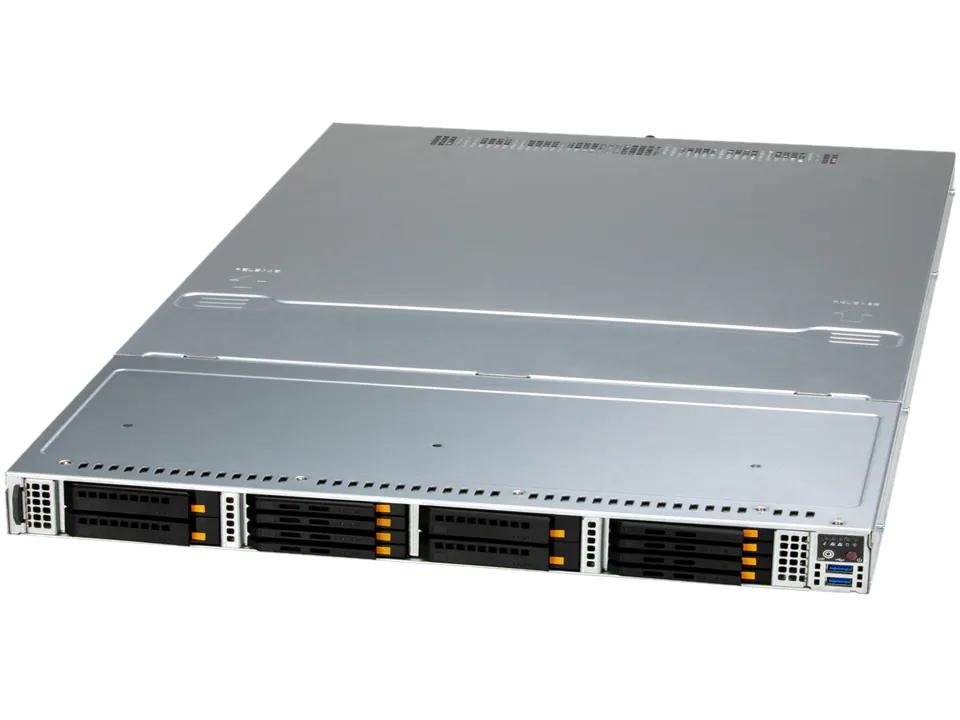

Storage A+ Server ASG-1115S-NE3X12R
- Form Factor 1U Rackmount
- Supported CPUs AMD EPYC 9004
- AMD EPYC 9005
- CPU Socket 1
-
Max Supported Memory
9 TB DDR5 ECC Supported

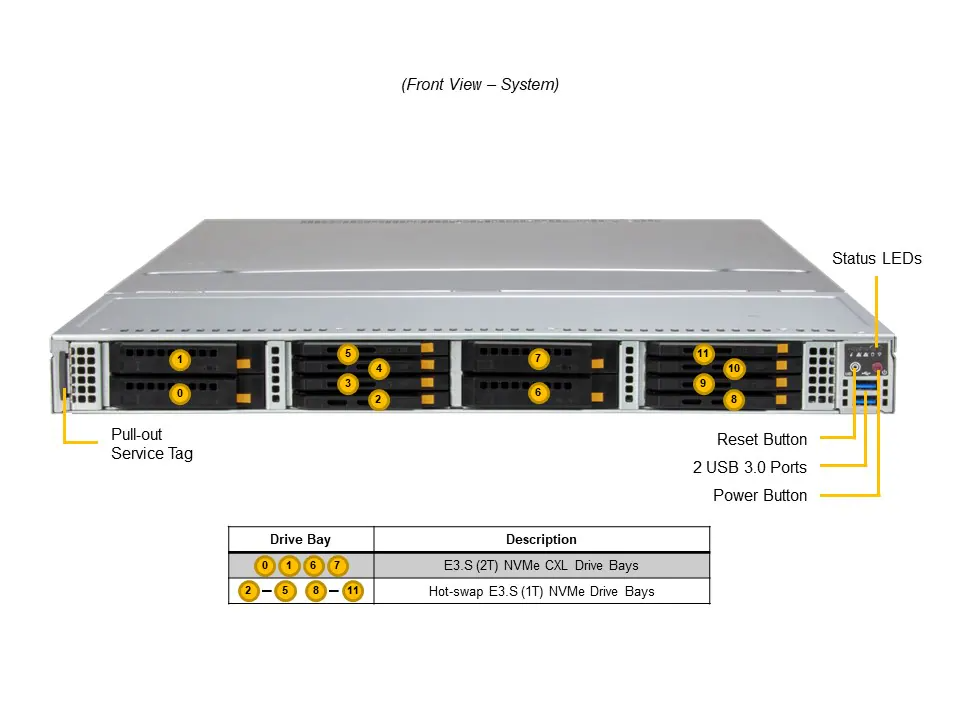

- Drive Bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe Hot Swap E3.S1T NVMe
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Software-defined Storage
- In-Memory Computing
- Data Intensive HPC
- Private & Hybrid Cloud
- NVMe Over Fabrics Solution
Key Features
- Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.

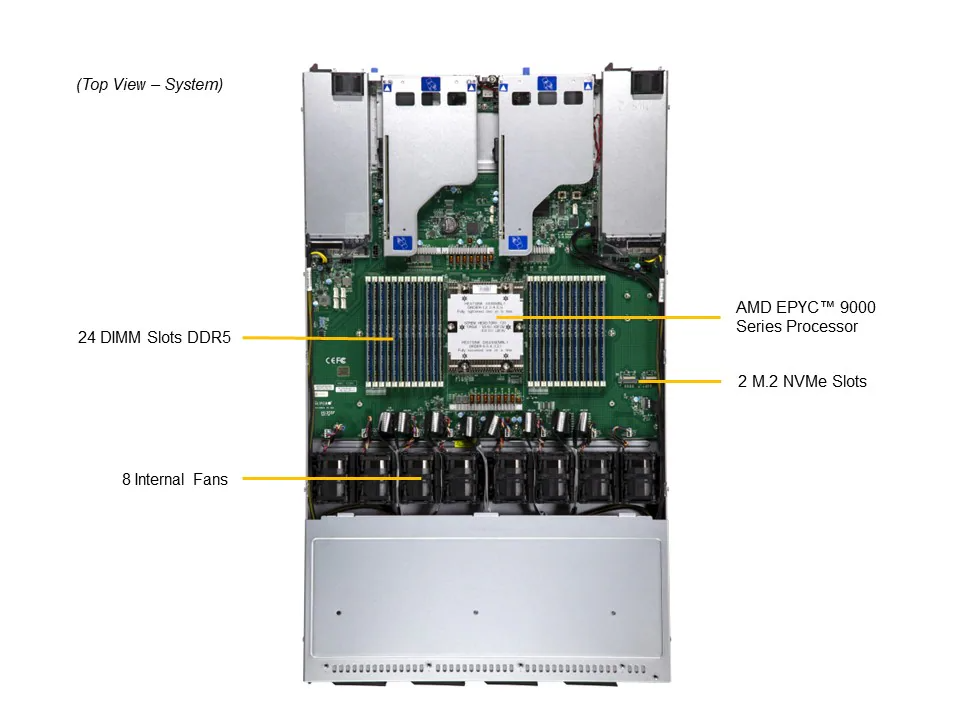

- Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 24 DIMMs of 384GB 3DS RDIMM/RDIMM DDR5 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 4x E3.S CXL (16.8mm) + 8x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 96
- TDP 300 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 2 PCIe 5.0 x16 FHHL slots
- Dimensions 1.7" (43.6 mm) Height
- Dimensions 17.2" (438.4 mm) Width
- Dimensions 30.4" (773.25 mm) Depth
- Product Model ASG-1115S-NE3X12R
- LAN 1 RJ45 1 GbE
- SATA Ports 12 NVMe
- USB 2 USB 3.0 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- SATA Controller NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
