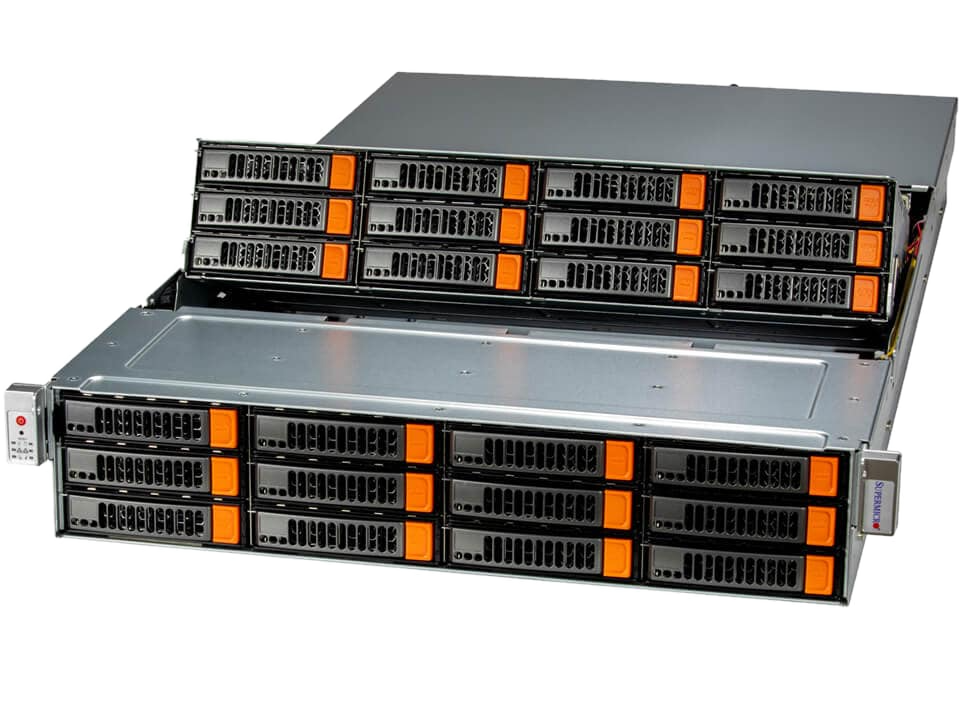

Storage A+ Server ASG-2015S-E1CR24L
- Form Factor 2U Rackmount
- Supported CPUs AMD EPYC 9004
- AMD EPYC 9005
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported

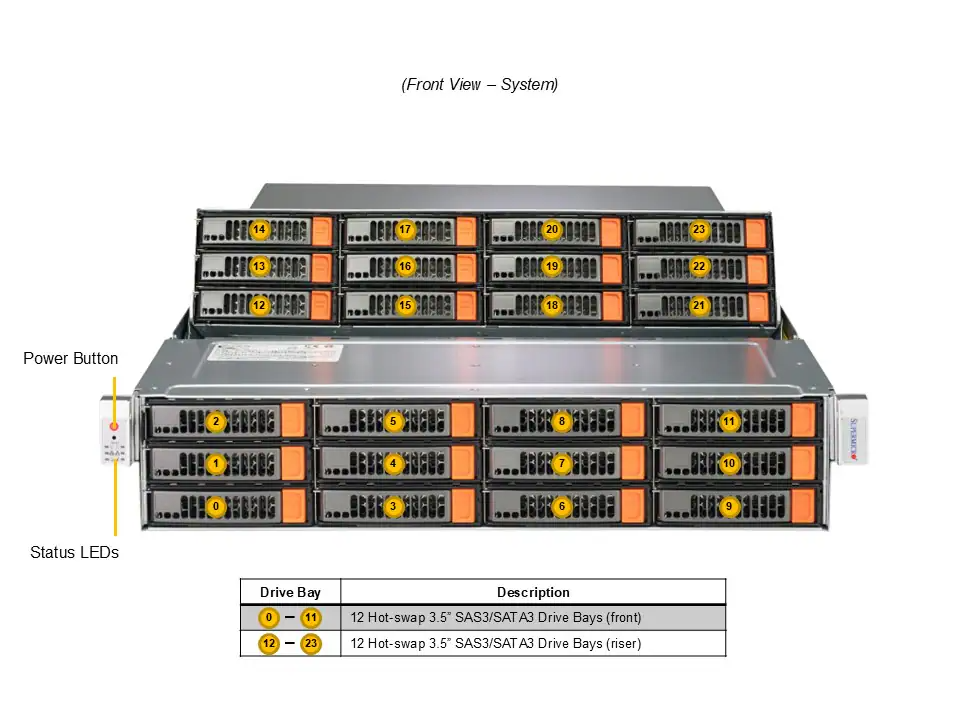

- Drive Bays 12 front hot-swap 3.5" SAS/SATA Hot swap 3.5" Drive Bays
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Key Features

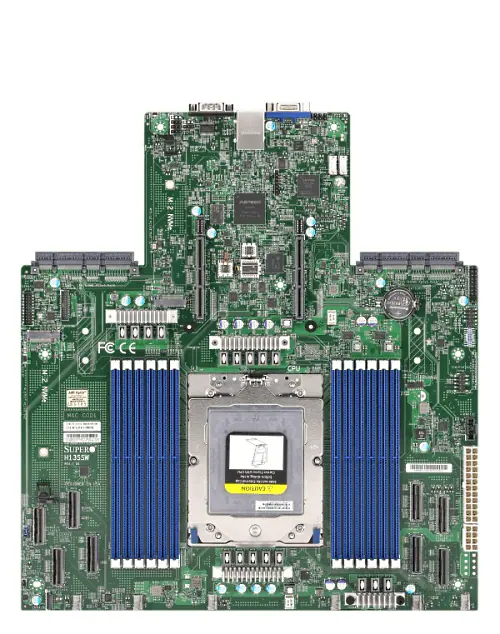

- Processor: Single Socket SP5 AMD EPYC™ 9004/9005 Processor; up to 290W TDP
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x) - Memory: Support up to DDR5 12 DIMM slots (1DPC)

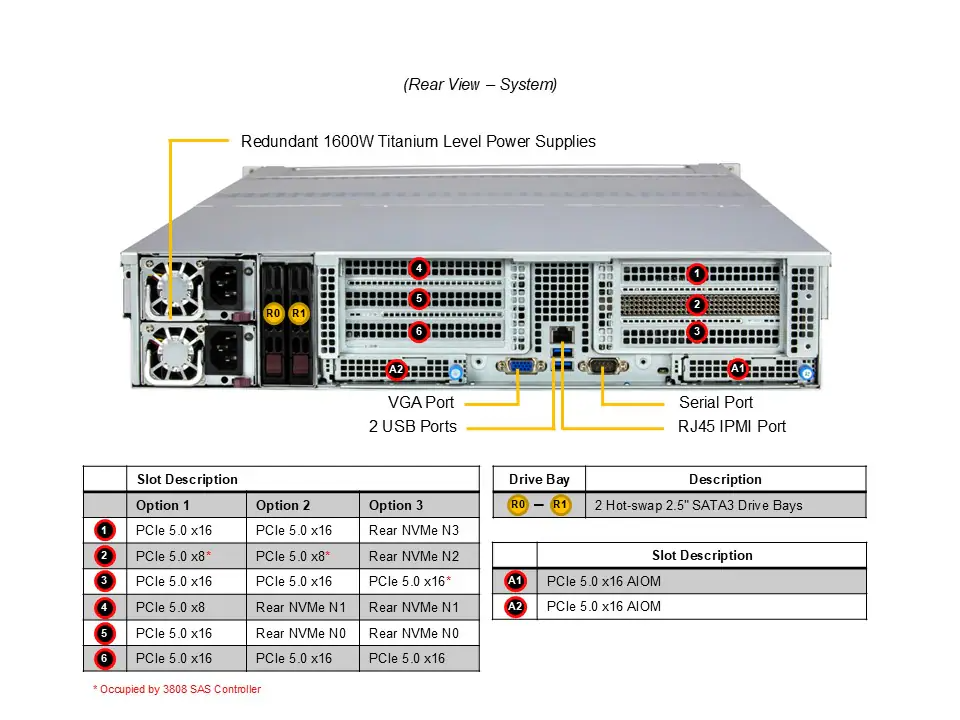

- Expansion: Dedicated 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
- PCIe Slots: Up to 6 PCIe 5.0 slots (slot #2 populated by 3808 controller)
- Management: Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 168
- TDP 400 W

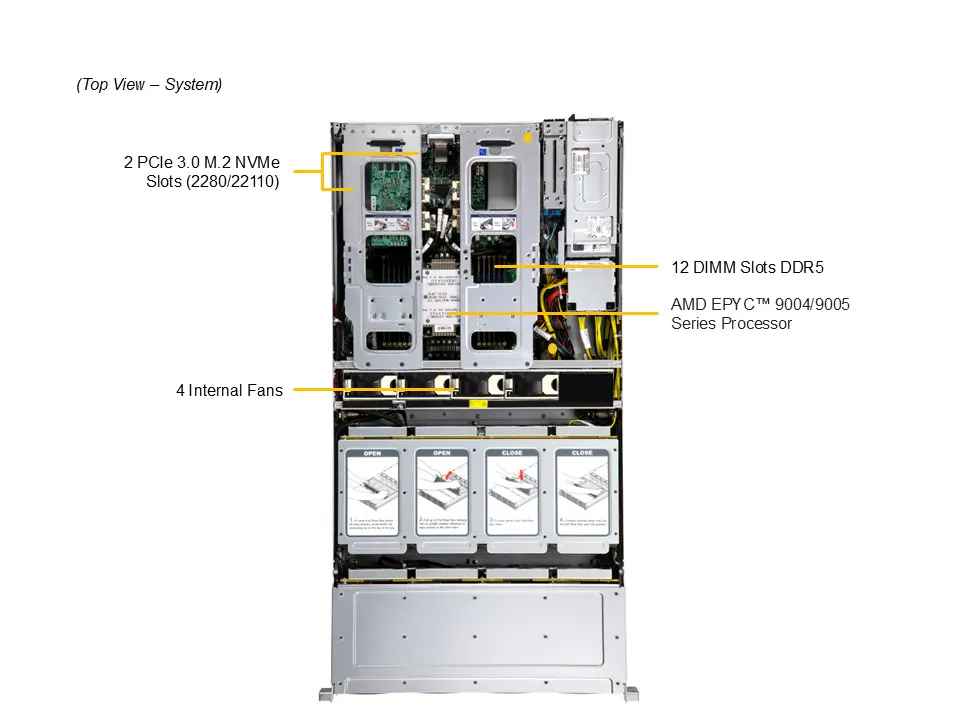

- M.2 2 M.2 NVMe slots (M-key 2280/22110)
- PCI-e Default: 2 PCIe 5.0 x16 FHHL slots
- Dimensions 17.2" (436.88 mm) Width
- Dimensions 3.5" (88.9 mm) Height
- Dimensions 34" (863.6 mm) Depth
- Product Model ASG-2015S-E1CR24H
- LAN 1 RJ45 1 GbE
- SATA Ports 24 SAS /SATA
- USB 2 USB 3.0 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- SATA Controller NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
