Storage SuperServer SSG-121E-NE3X12R
- Form Factor 1U Rackmount
- Supported CPU Intel Xeon Scalable 5th Gen
- CPU Sockets 2
-
Max Supported Memory
8 TB DDR5 ECC Supported
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Software-defined Storage
- In-Memory Computing
- Data Intensive HPC
- Private & Hybrid Cloud
- NVMe Over Fabrics Solution
Key Features
- Dual Socket E (LGA-4677) 5th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-4800 ECC memory.

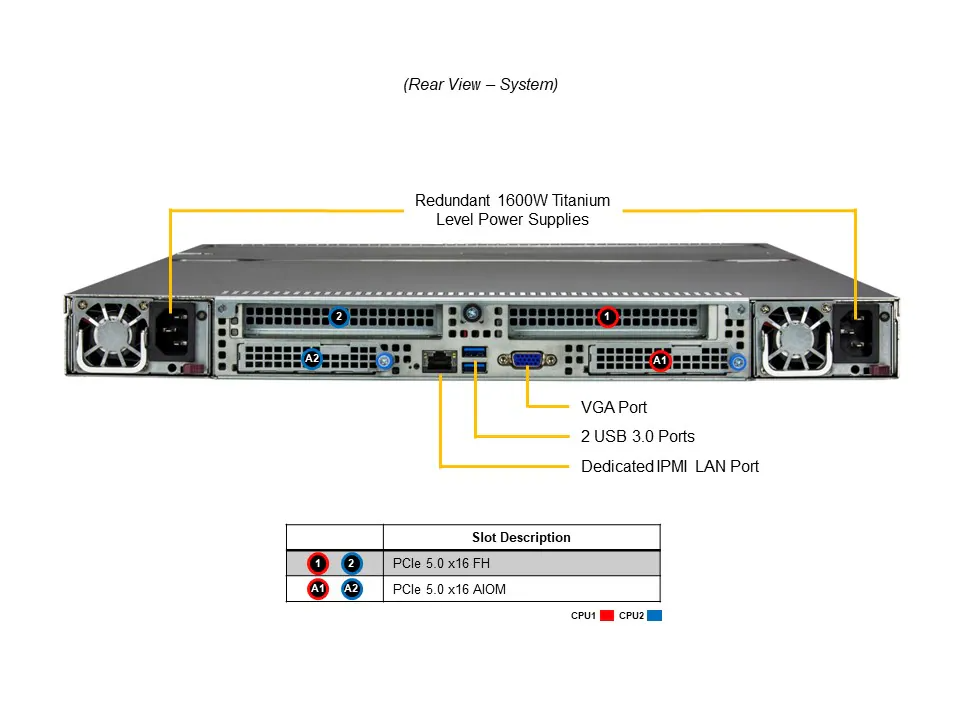

- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant).
- 8x hot-swap E3.S (1T) NVMe drive bays, 4x E3.S (2T) CXL bays.
- Redundant Titanium 1600W Power Supplies.
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer Intel
- Total Drives Supported 12
- Dimensions 43.6 mm Height
- Dimensions 438.4 mm Width
- Dimensions 773.25 mm Depth
- Manufacturer Supermicro

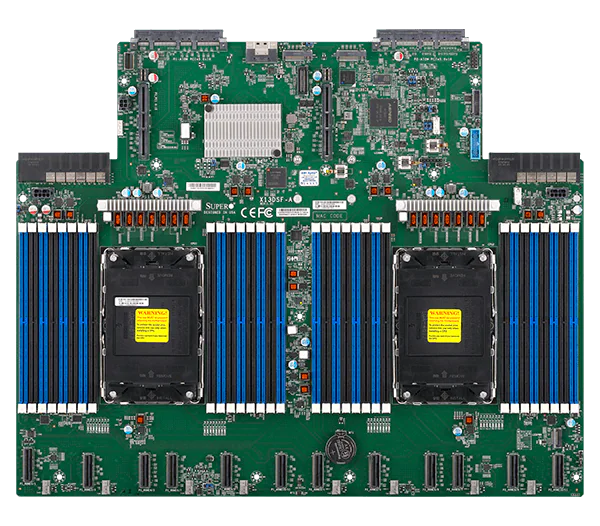

- Motherboard Model X13
- Product Model SSG-121E-NE3X12R
- DIMM Type RDIMM, LRDIMM
