Storage SuperServer SSG-221E-DN2R24R
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon Scalable 4th Gen
- Intel Xeon Scalable 5th Gen
- CPU Socket 1
-
Max Supported Memory
2 TB DDR5 ECC Supported
-
Power Supply
2000 W Titanium Redundant
Key Applications
- Artificial Intelligence (AI)
- High Availability Storage
- NVMe Over Fabrics Solution
Key Features

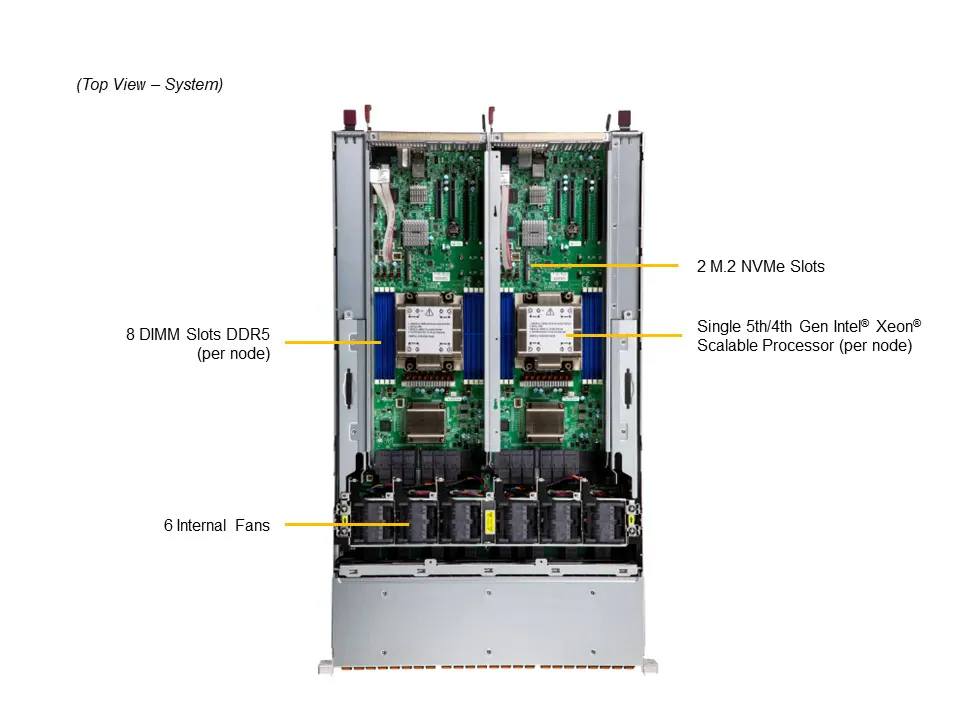

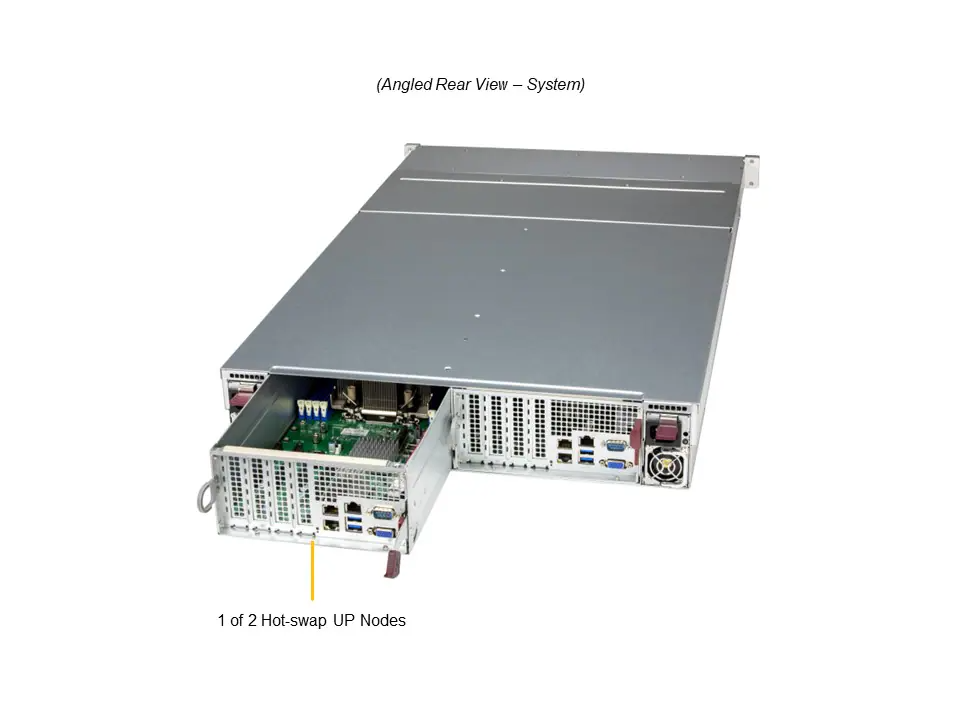

- Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Single Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processor. Up to 350W TDP.
- 2 PCIe 5.0 x16 HHHL slots
- 2 PCIe 5.0 x8 HHHL slots
- Supports 8 DIMMs per node with 1DPC, up to 2TB memory capacity with 8 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory per node.
- Dedicated 1GbE Private Ethernet connection for node-to-node communication (Heartbeat)

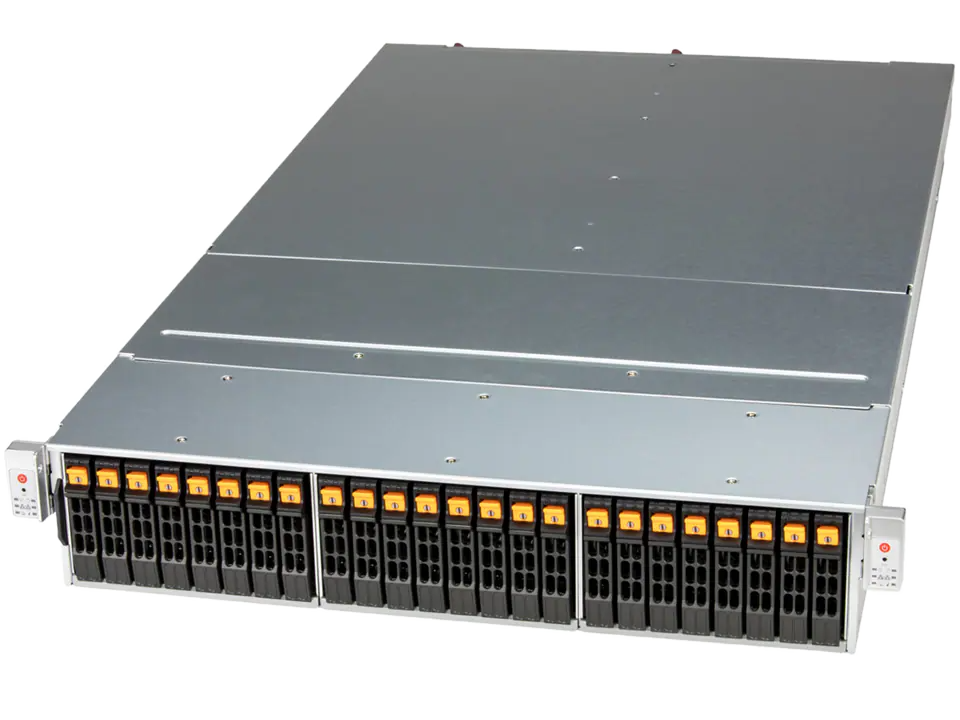

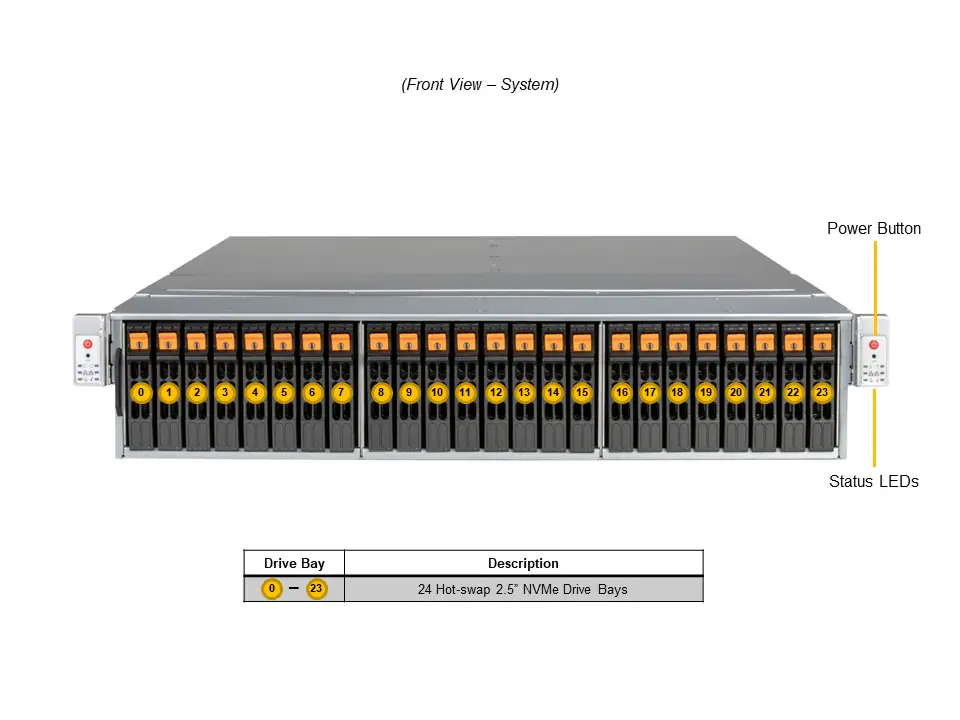

- 24 Hot-swap Dual Port Gen 5 U.2 NVMe SSD bays
- Redundant Titanium 2000W Power Supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer Intel
- Total Drives Supported 24
- Dimensions 449.4 mm Width
- Dimensions 762 mm Depth
- Dimensions 88 mm Height
- Manufacturer Supermicro

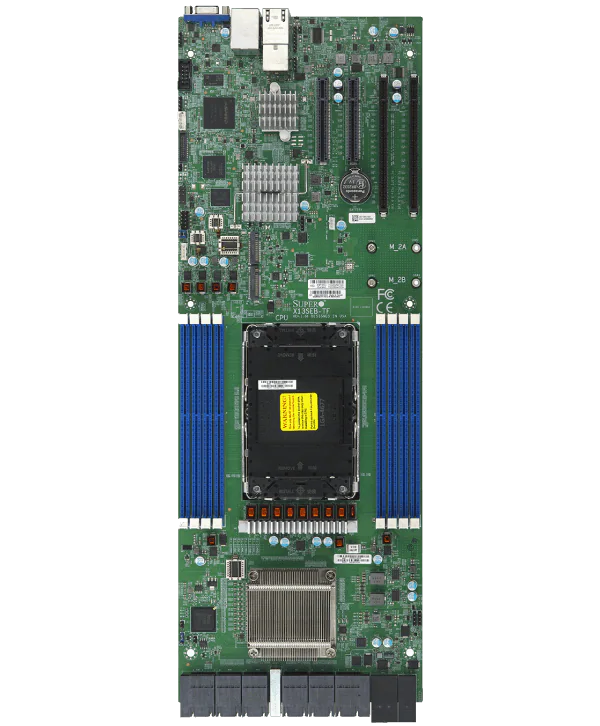

- Motherboard Model X13
- Product Model SSG-221E-DN2R24R
- DIMM Type RDIMM/LRDIMM
