Storage SuperServer SSG-521E-E1CR24L
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon Scalable 4th Gen
- Intel Xeon Scalable 5th Gen
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
1600 W Titanium Redundant
Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Key Features

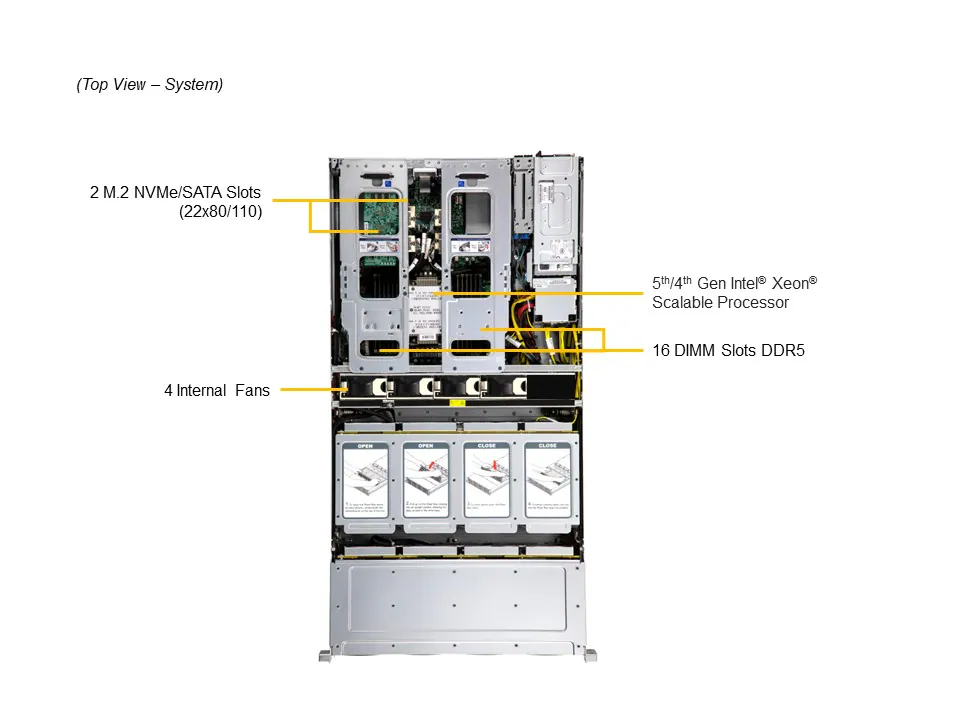

- Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
- 16 ECC DDR5-5600: LRDIMM/RDIMM.
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant).
- Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3808 controller by default).
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node.

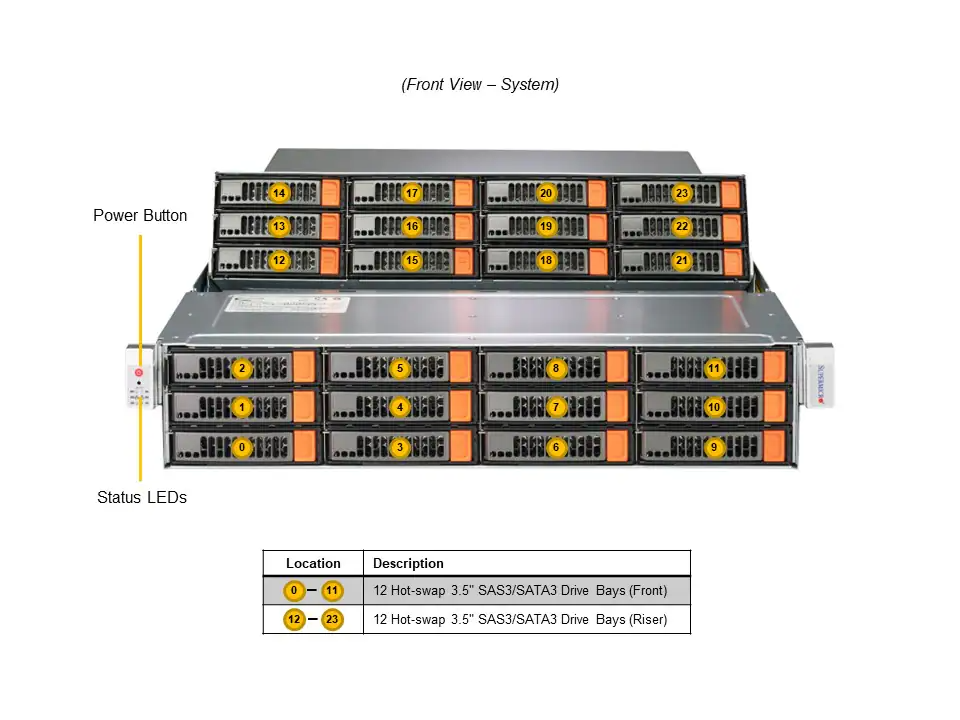

- 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280).
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans.
- 1600W Redundant Power Supplies Titanium Level (96%).
- HBA Controller support via Broadcom® 3808.
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer Intel
- Total Drives Supported 24
- Dimensions 436.88 mm Width
- Dimensions 863.6 mm Depth
- Dimensions 88.9 mm Height
- Manufacturer Supermicro

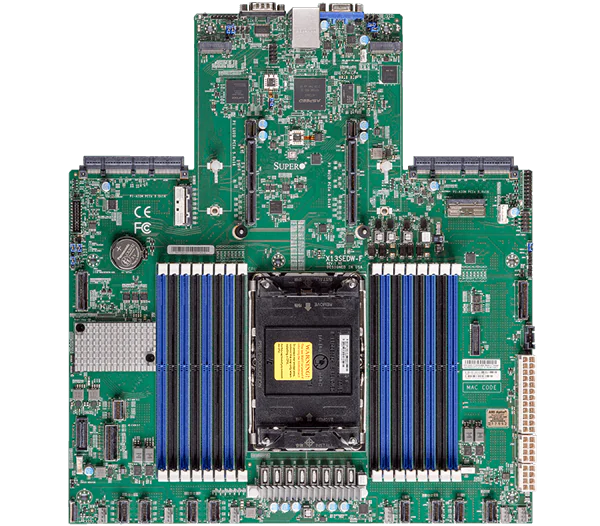

- Motherboard Model X13
- Product Model SSG-521E-E1CR24L
- DIMM Type RDIMM
