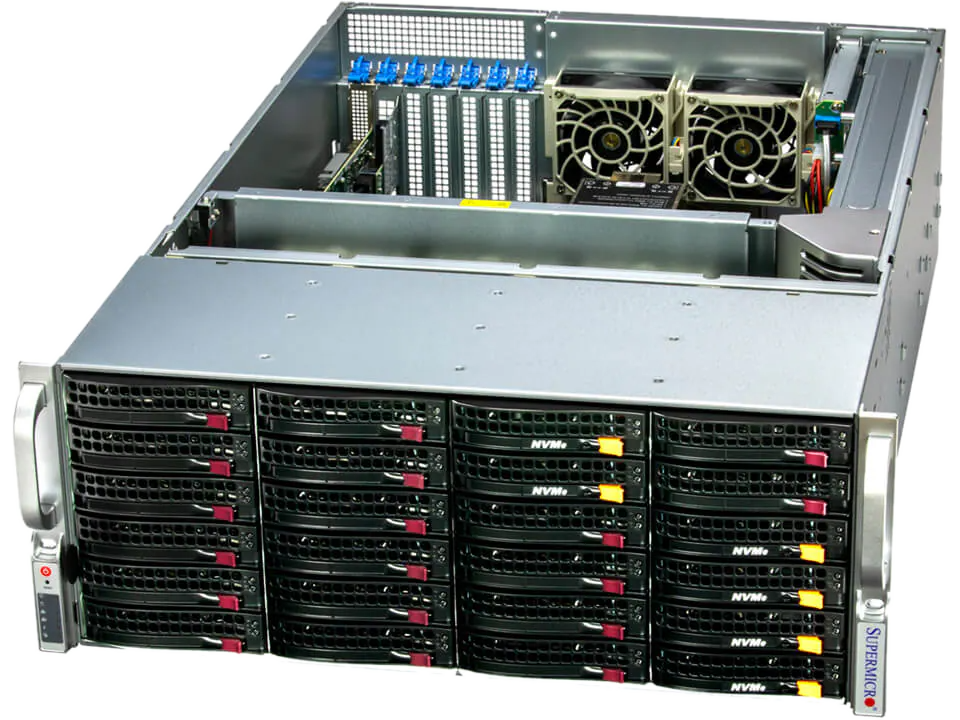

Storage SuperServer SSG-641E-E1CR24H
- Form Factor 4U Rackmount
- Supported CPUs Intel Xeon Scalable 4th Gen
- Intel Xeon Scalable 5th Gen
- CPU Sockets 2
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
1200 W Titanium Redundant
Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Key Features

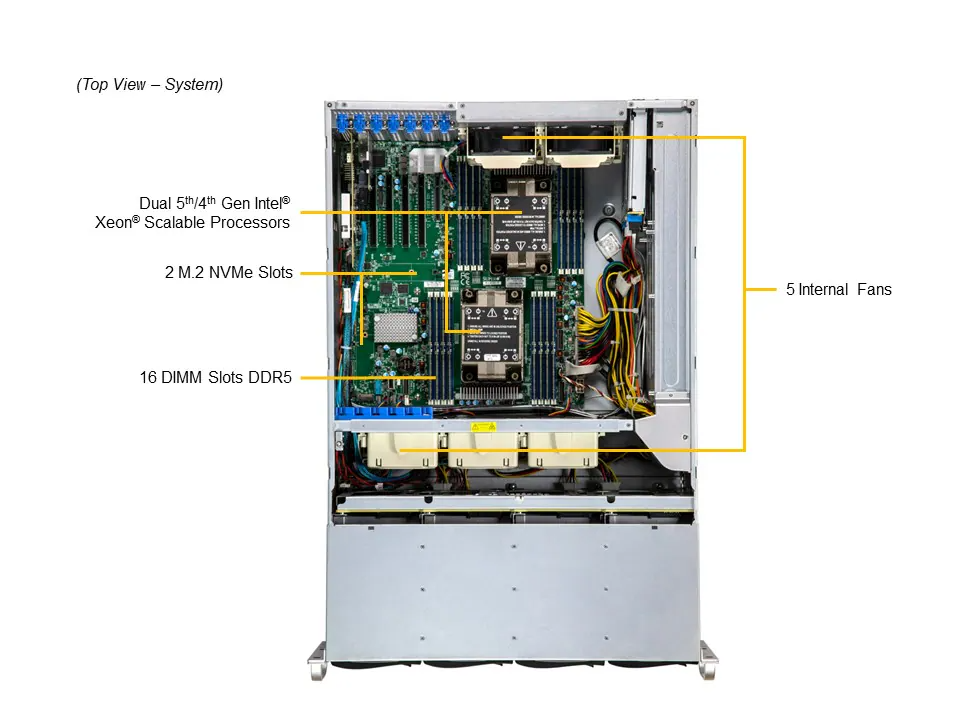

- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors.
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 16 DIMM slots.

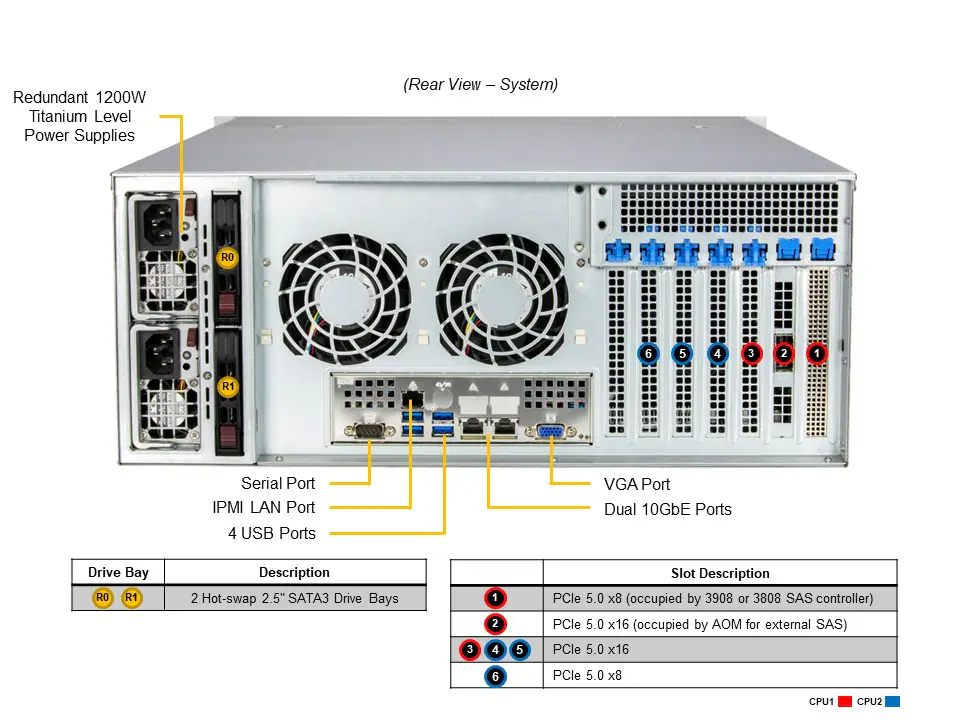

- 2x 10 GbE onboard via Broadcom BCM57416.
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN.
- 24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110).
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans.
- 1200W Redundant Power Supplies Titanium Level (96%).
- HW RAID support via Broadcom® 3908.
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer Intel
- Total Drives Supported 24
- Dimensions 177.8 mm Height
- Dimensions 436.9 mm Width
- Dimensions 660.4 mm Depth
- Manufacturer Supermicro

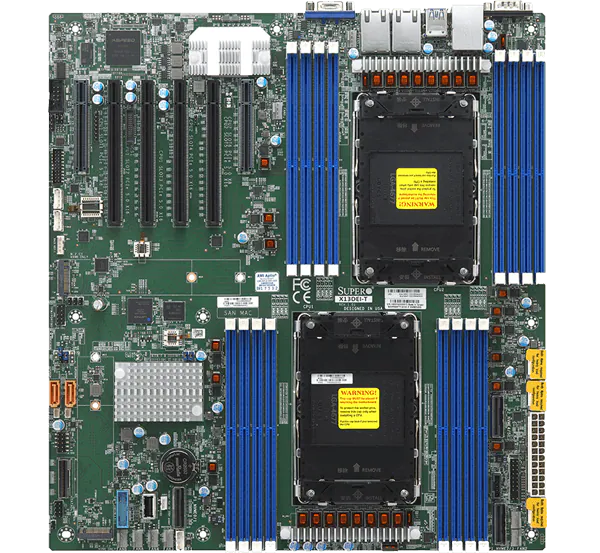

- Motherboard Model X13
- Product Model SSG-641E-E1CR24H
- DIMM Type RDIMM
