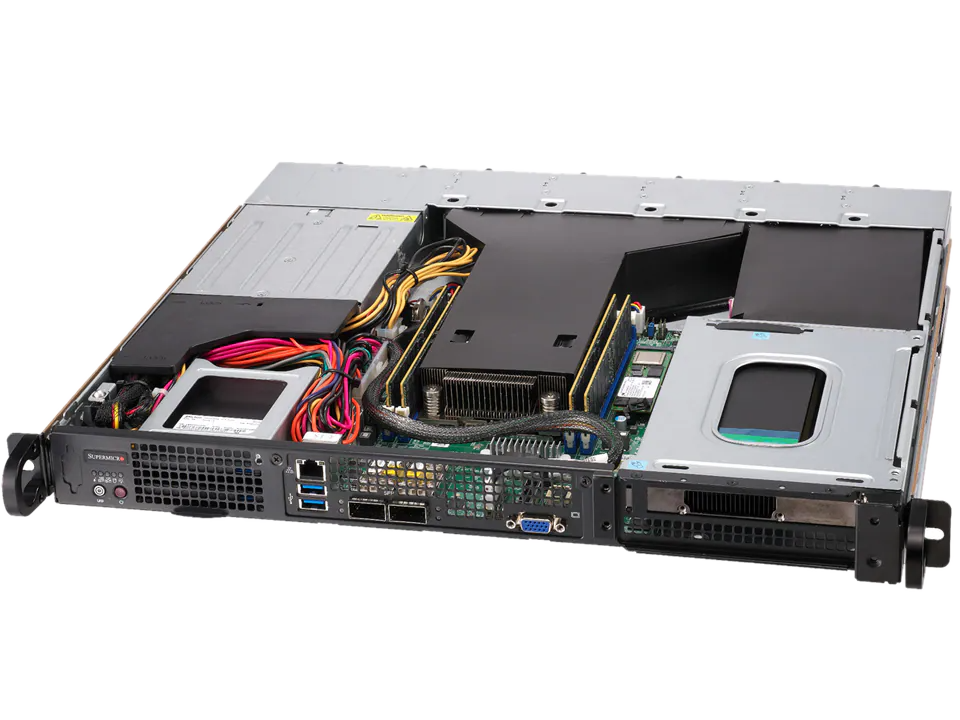

IoT SuperServer SYS-112D-20C-FN3P
- Form Factor 1U Rackmount
- Supported CPU ntel Xeon 6 SoC 6516P-B
- CPU Socket 1
-
Max Supported Memory
512 GB DDR5 ECC Supported
- Drive Bays 2 internal fixed 2.5" PCIe 4.0 x4 NVMe Fixed 2.5" Drive Bays
-
Power Supply
800 W Platinum Redundant
Key Applications
- Edge Computing
- Intel® QuickAssist Technology
Key Features
- Intel Xeon 6 SoC with P-Cores, 20C, 145W
- Support for up to 1 double-width PCIe GPU accelerator card

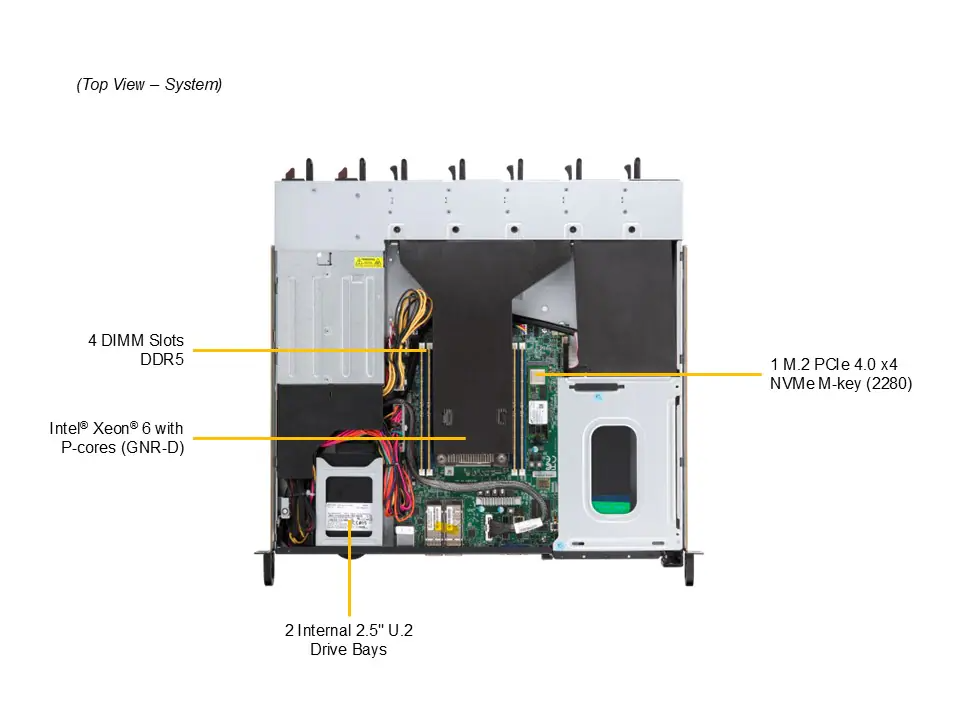

- Up to 4 DIMMs supporting up to 512GB DDR5-4800 MT/s

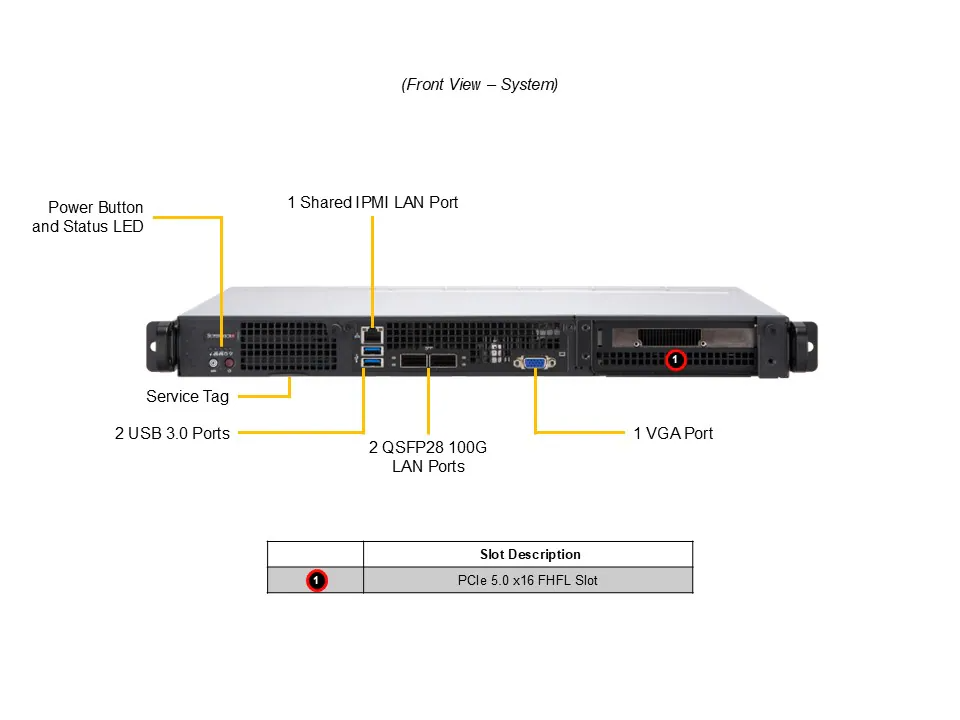

- 2x 100GbE QSFP28 + 1x IPMI shared LAN + 1x GbE RJ45
- Up to 1 PCIe 5.0 x16 FHFL slot
- Up to 2 internal fixed 2.5" U.2 drive bays

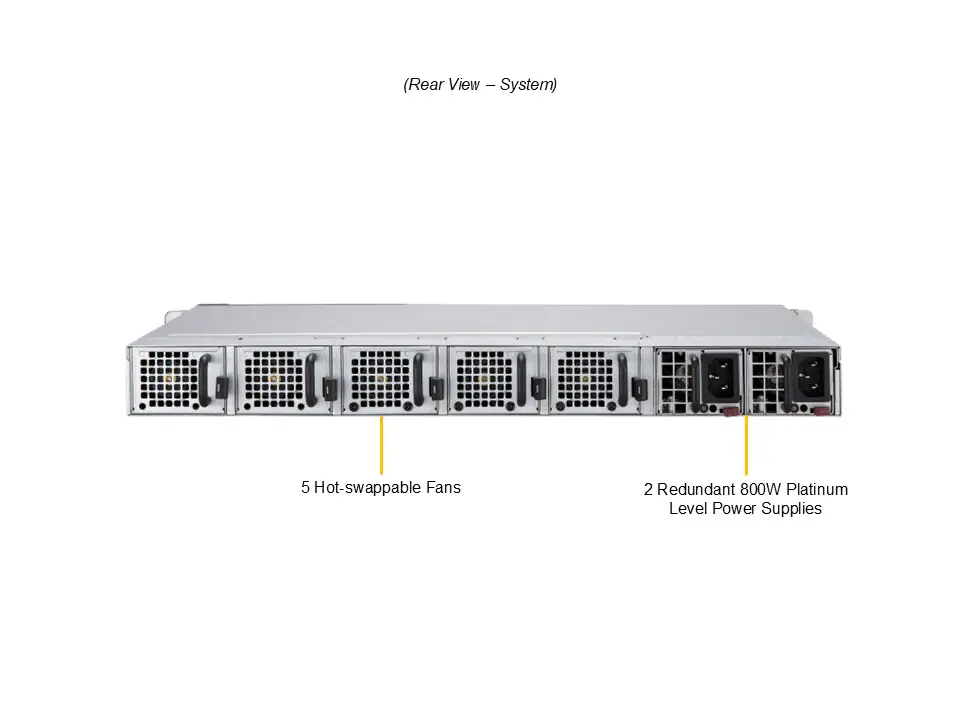

- 2 Redundant 800W Platinum Level power supplies
- 1U Rackmount chassis with 15.7" (399mm) depth
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 20
- TDP 145 W
- M.2 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
- PCI-e Default: 1 PCIe 5.0 x16 (in x16) FHFL slot
- Dimensions 1.7" (43 mm) Height
- Dimensions 15.7" (399 mm) Depth
- Dimensions 17.2" (437 mm) Width
- Product Model SYS-112D-20C-FN3P
- LAN 2 QSFP28 100 GbE LAN ports (Intel SOC) QSFP28 100 Gb
- NVMe 2
- USB 2 USB 2.0 ports(header)
- Video Output 1 VGA port
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
