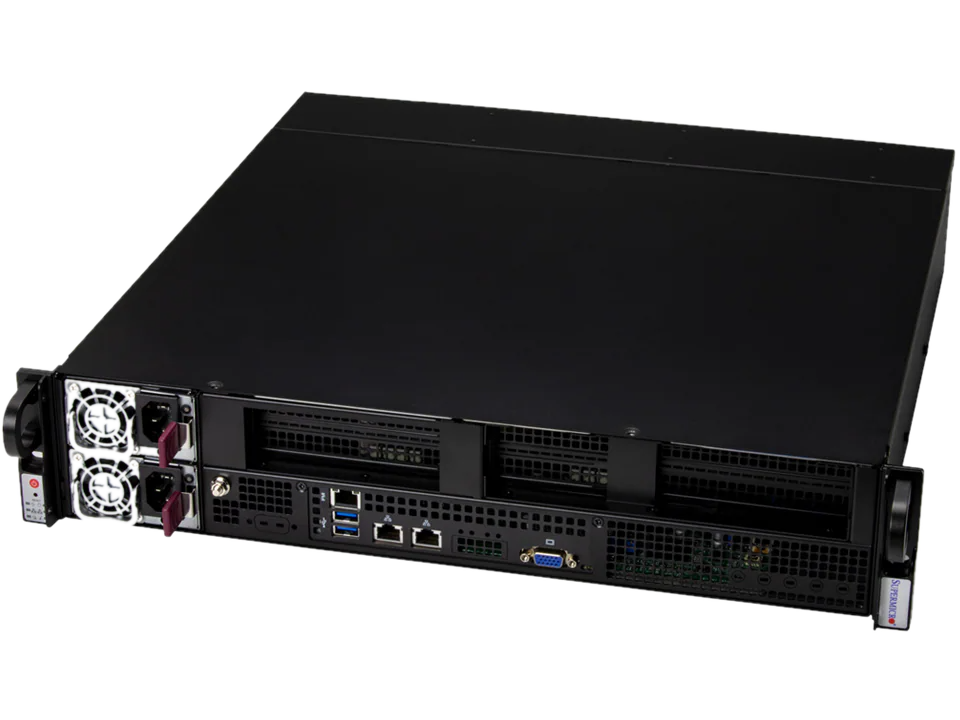

IoT SuperServer SYS-212B-FN2T
- 2U Rackmount IoT
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Socket 1
-
Max Supported Memory
2 TB DDR5 ECC Supported
-
Power Supply
2000 W Titanium Redundant
Key Applications
- 5G Core and Edge
- AI Inference and Machine Learning
- Network Function Virtualization
- Healthcare
- Retail
Key Features
- Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

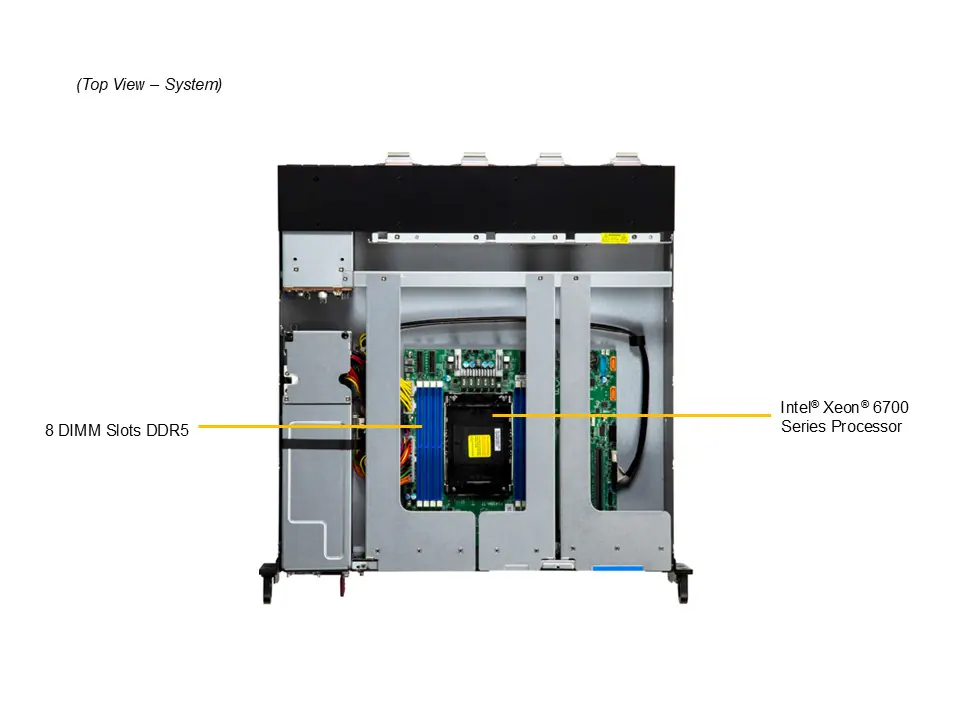

- Up to 2TB ECC RDIMM DDR5-6400MT/s or up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots

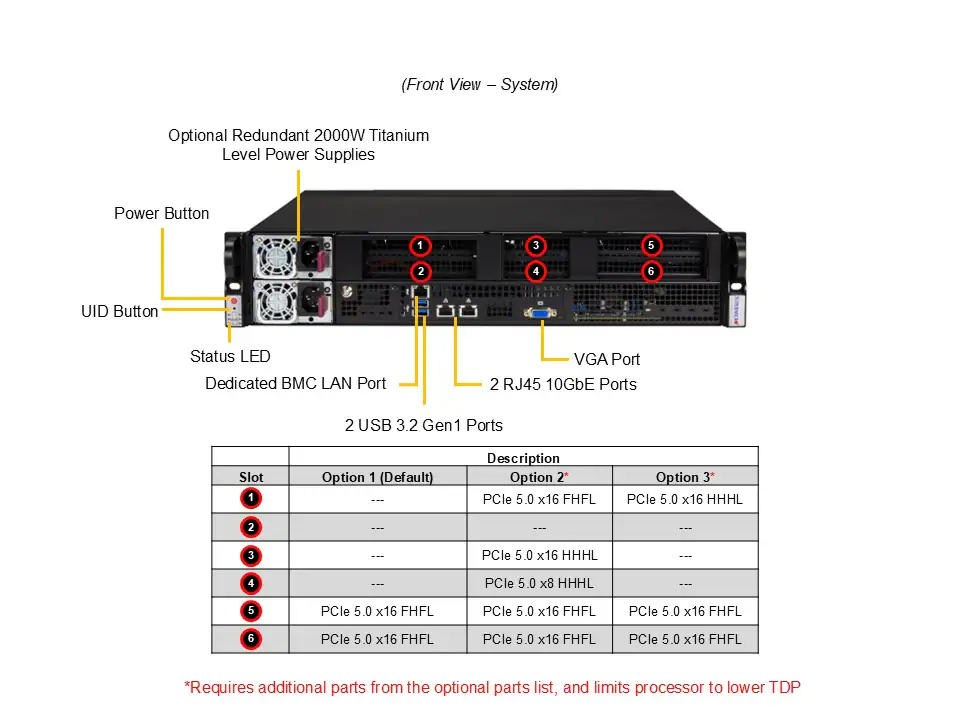

- Optional PCIe slot configurations up to 4 PCIe 5.0 x16 (3 FHFL+1 HHHL) slots with support for double-width GPU/Accelerator cards
- 2x M.2 M-Key NVMe 2280/22110
- 2x RJ45 10GbE LAN and 1x RJ45 1GbE dedicated IPMI LAN

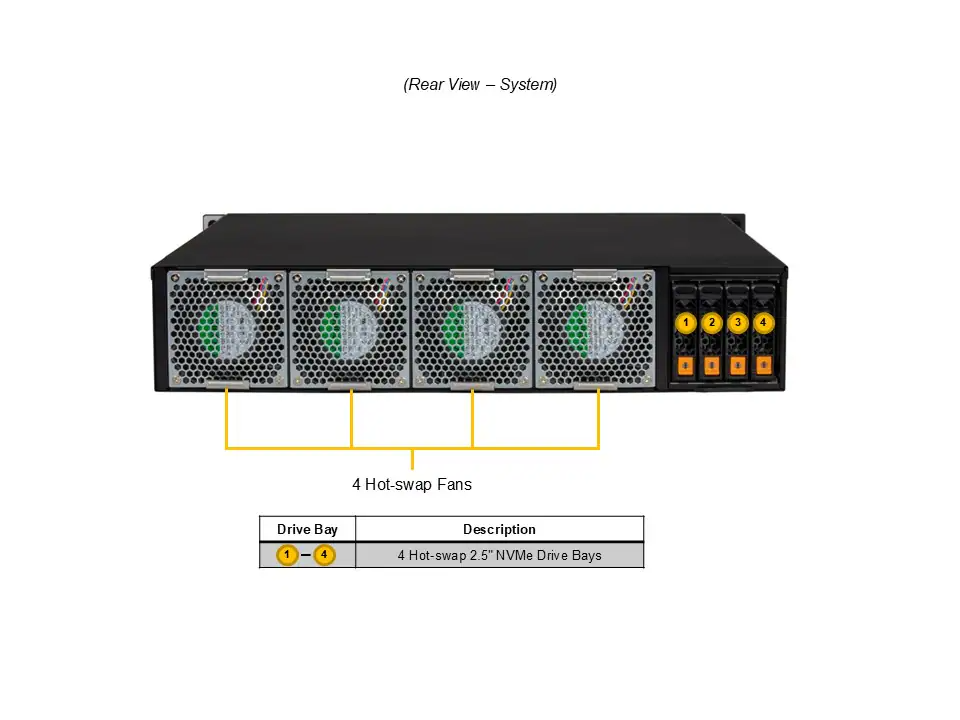

- Optional 4 rear 2.5" hot-swap NVMe drive bays
- Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 350 W
- M.2 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- PCI-e Default: 2 PCIe 5.0 x16 (in x16) FHFL slots
- Dimensions 17.2" (437 mm) Width
- Dimensions 17.72" (450 mm) Depth
- Dimensions 3.5" (89 mm) Height
- Product Model SYS-212B-FN2T
- LAN 2 RJ45 10GBASE-T with Intel X550 RJ45 10GBASE-T
- NVMe 4 NVMe
- USB 2 USB 3.2 Gen1 Type-A ports(front)
- Video Output 1 VGA port(Front) VGA port
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
