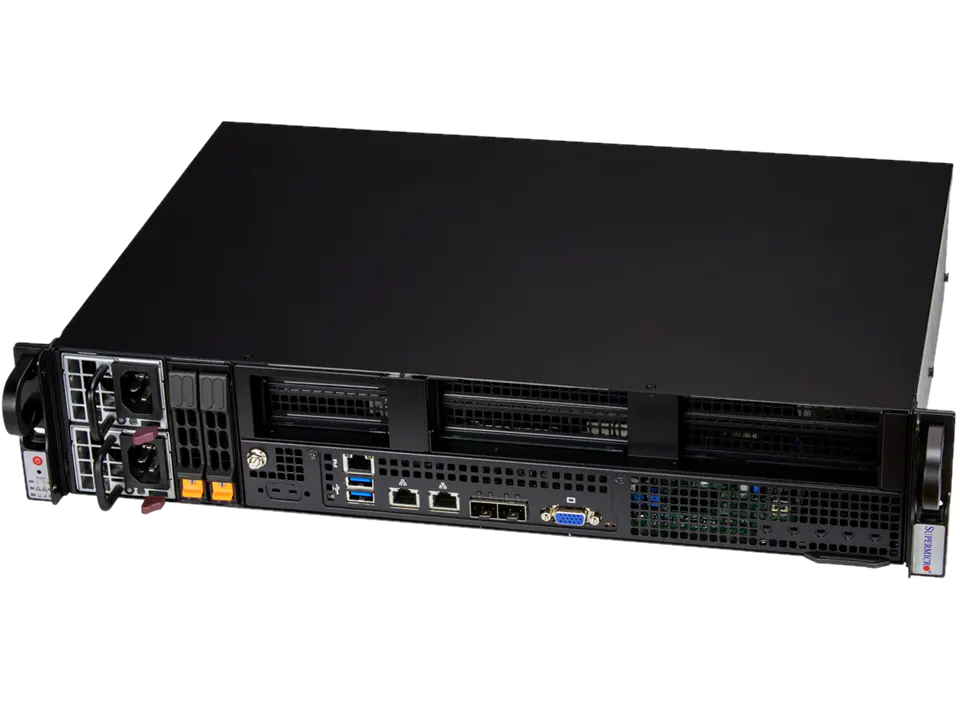

IoT SuperServer SYS-212B-FN4TP
- 2U Rackmount IoT
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Socket 1
-
Max Supported Memory
2 TB DDR5 ECC Supported
-
Power Supply
Titanium Redundant
Key Applications
- 5G Core and Edge
- AI Inference and Machine Learning
- Network Function Virtualization
- Cloud Computing
Key Features
- Design with compliance to NEBS-Level 3
- Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
- Up to 2TB ECC RDIMM DDR5-6400MT/s or up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots
- Up to 4 PCIe 5.0 x16 (3 FHHL + 1 HHHL) & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
- Onboard 2x 10GbE, 2x 10G SFP+
- Optional 2 front hot-swap 2.5" NVMe drive bays
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 250 W
- M.2 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- PCI-e Default: 2 PCIe 5.0 x16 FHHL slots
- Dimensions 11.8" (298.8 mm) Depth
- Dimensions 17.2" (436.88 mm) Width
- Dimensions 3.5" (89 mm) Height
- Product Model SYS-212B-FN4TP
- LAN 2 RJ45 10GBASE-T with Intel X710-TM4 RJ45 10GBASE-T
- NVMe 2 NVMe
- USB 2 USB 3.2 Gen1 Type-A ports(front)
- Video Output 1 VGA port
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
