GrandTwin SuperServer SYS-212GT-HNR
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Sockets 4
-
Max Supported Memory
64 GB DDR5 ECC Supported

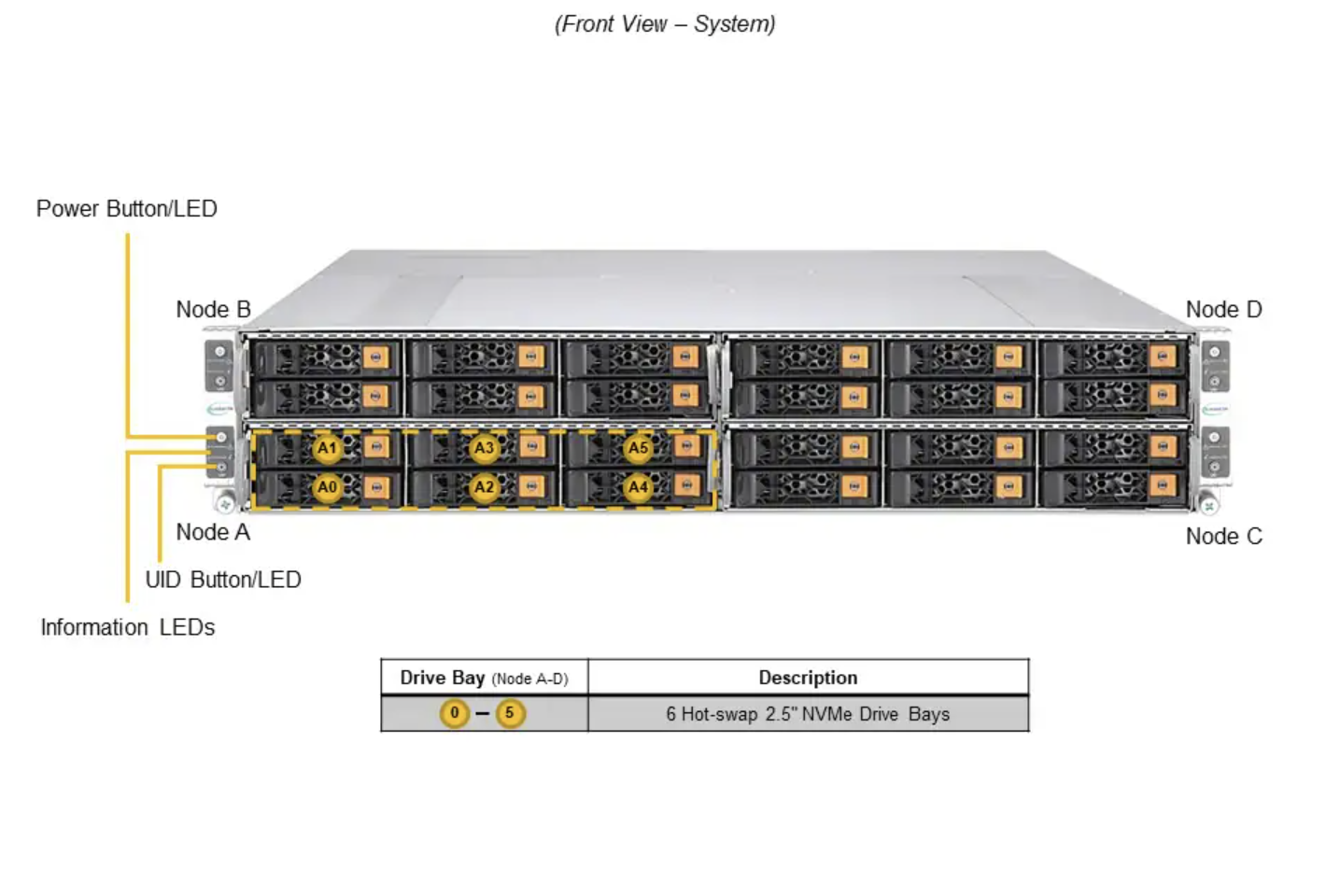

- Drive Bays 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe Hot swap 2.5" Drive Bays
-
Power Supply

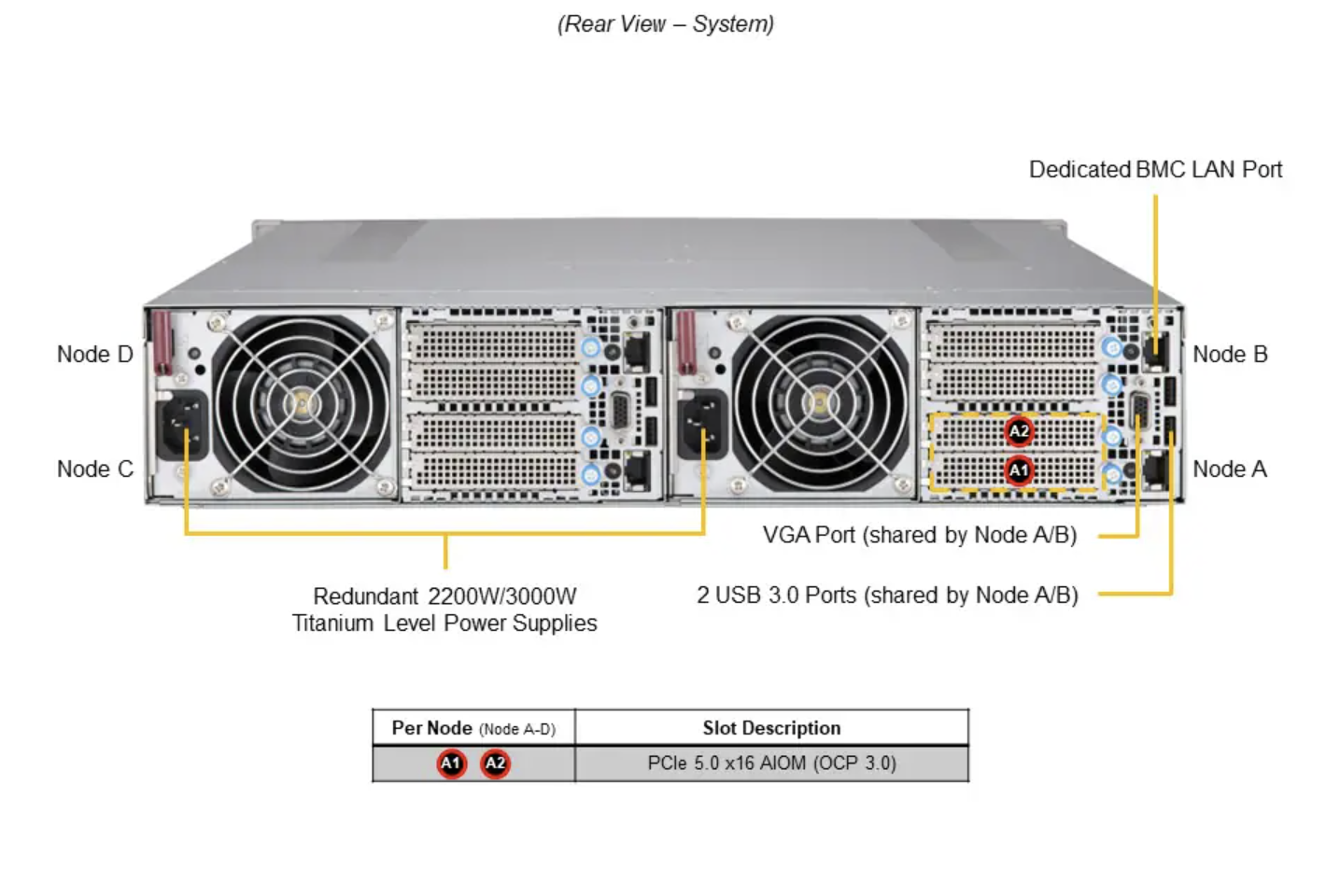

2200 W Titanium Redundant
Key Applications
- Scale Out All-Flash NVMe Storage
- Scale-Out Object Storage
- Web Server, Firewall Application
- Data Center Optimized, Value IaaS
- Cloud Computing, Compact Server
- Virtualization Server (VSAN)
- Network Function Virtualization
- Software Defined Storage
- General Purpose
- Multi-Purpose CDN
- Mission Critical Web Applications
Key Features

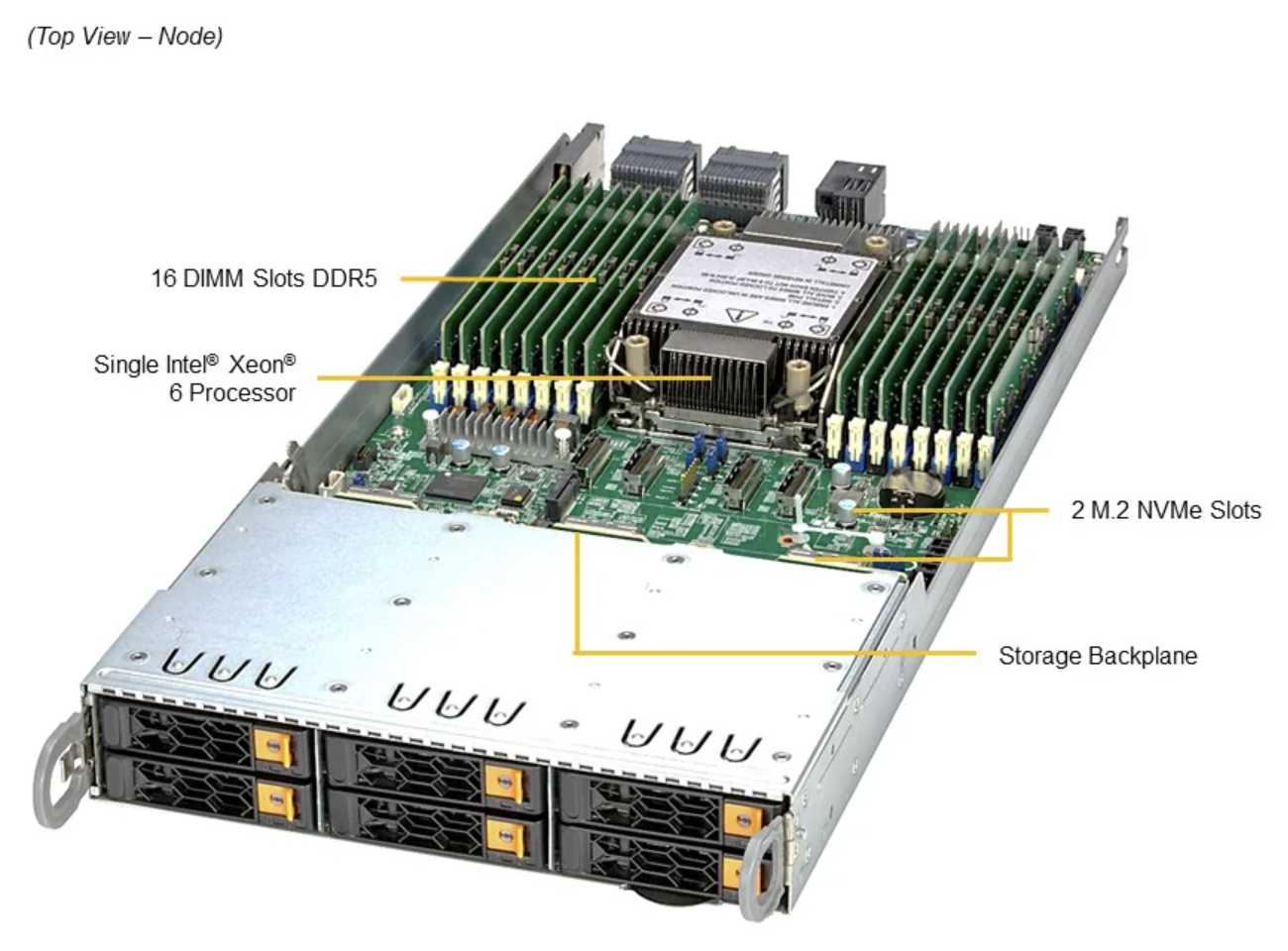

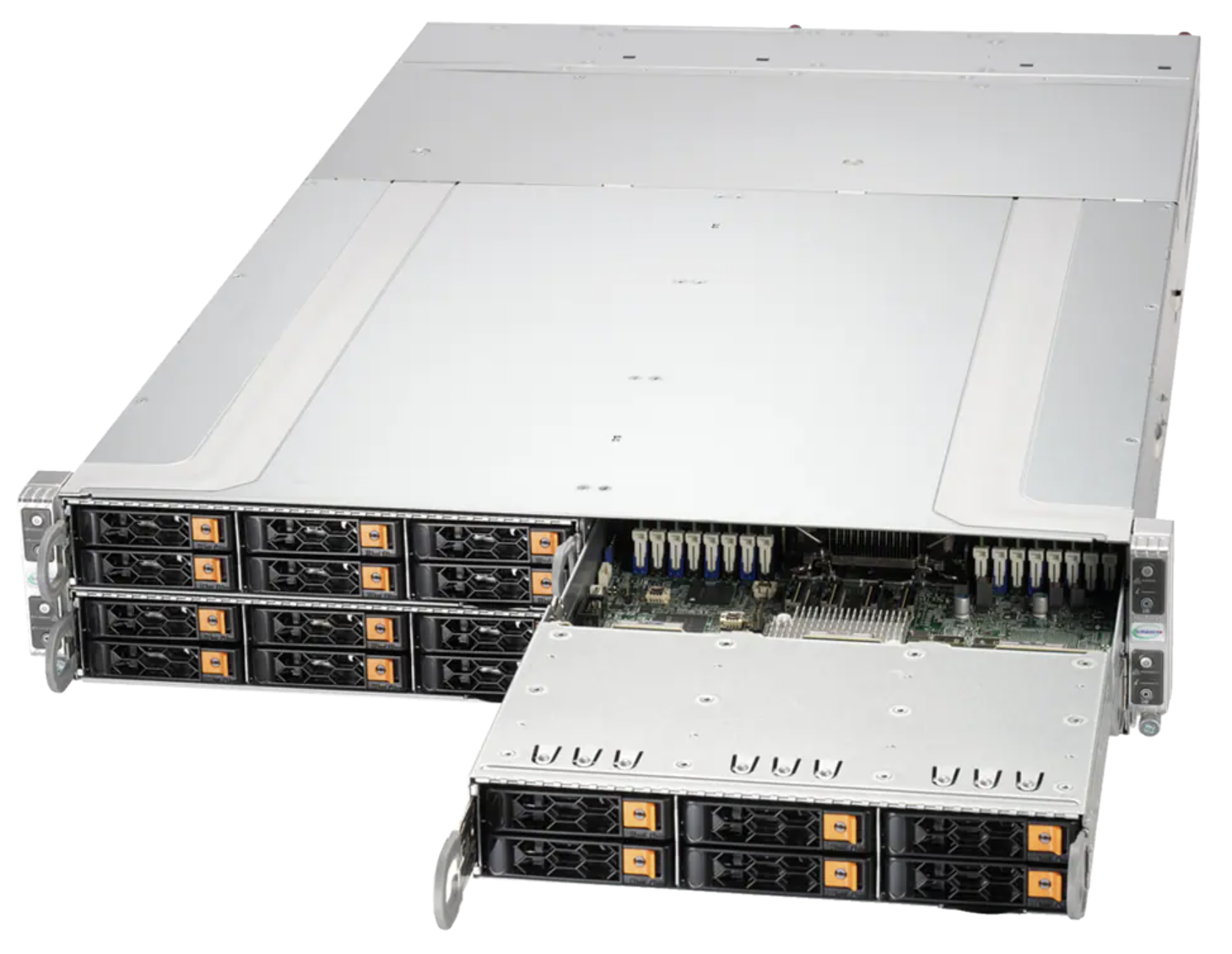

- Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Compact 2U 4-Node GrandTwin Rear I/O with up to 6 hot-swap 2.5″ NVMe drives and 2 OCP 3.0 slots per node
- Dense compute, storage, and flexible networking configurations optimized for software-defined storage applications
- Front access nodes for cold aisle serviceability

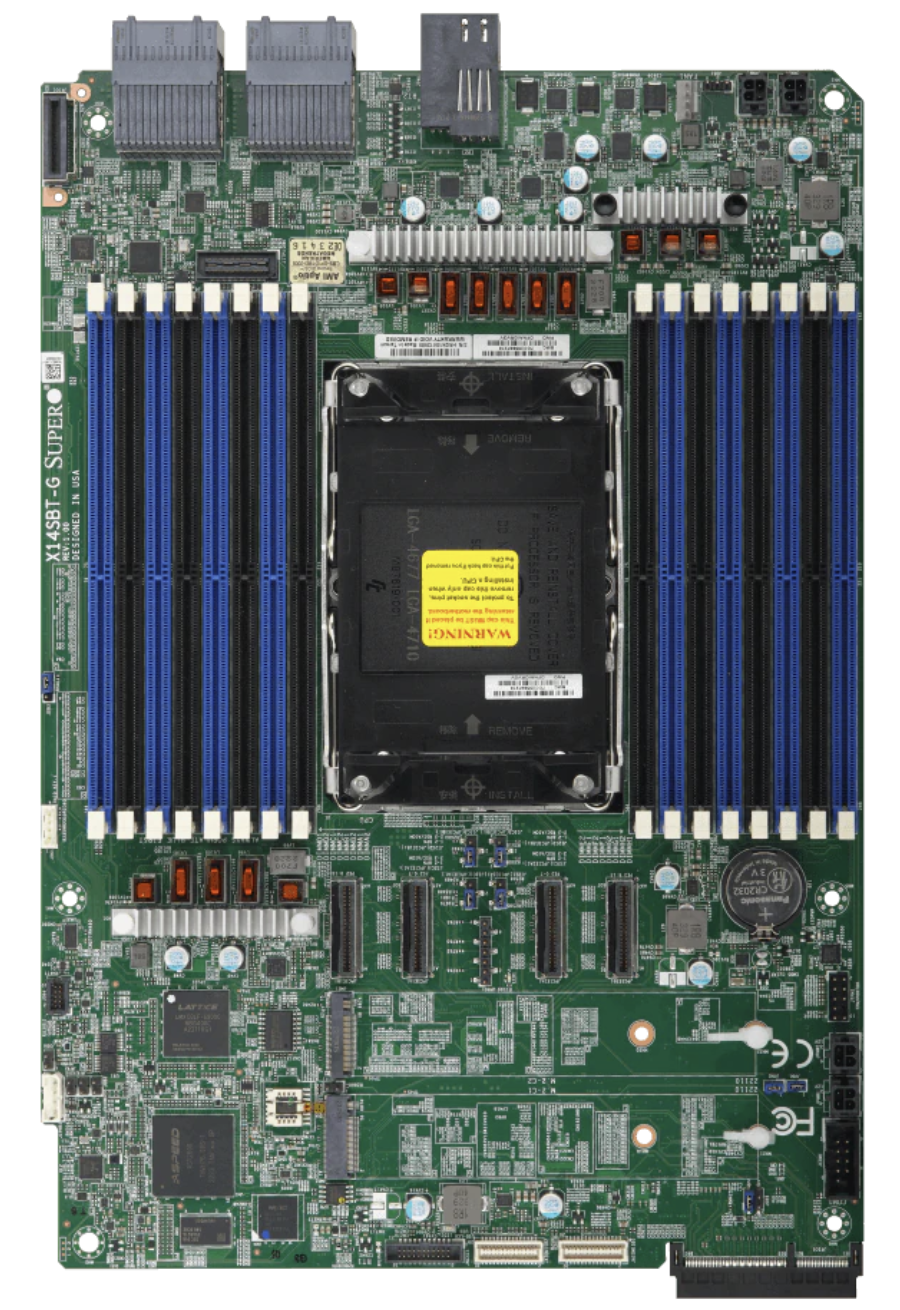

- Single-Socket Intel® Xeon® 6 6700 series processors
- 16 DIMM slots supporting up to 4 TB of memory; ECC RDIMMs up to DDR5-6400
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 330 W
- M.2 2 NVMe M.2 slot Per Node
- PCI-e Default: 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Per Node
- Dimensions 17.67" (449 mm) Width
- Dimensions 28" (711.2 mm) Depth
- Dimensions 3.46" (88 mm) Height
- Product Model SYS-212GT-HNR
- LAN 1 RJ45 1 GbE
- NVMe 6 Per Node
- USB 2 USB 3.0 ports Per Node
- Video Output 1 VGA port Per Node
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
