BigTwin SuperServer SYS-222BT-DNR

DEMAND_SYS-222BT-DNR
DEMAND_SYS-222BT-DNR
DEMAND_SYS-222BT-DNR
DEMAND_SYS-222BT-DNR
DEMAND_SYS-222BT-DNR
DEMAND_SYS-222BT-DNR
  • Form Factor 2U Rackmount
  • Supported CPUs Intel Xeon 6500 P-cores
  • Intel Xeon 6700 E-cores
  • Intel Xeon 6700 P-cores
  • CPU Sockets 2
  • Max Supported Memory
    8 TB  DDR5  ECC Supported
  • Drive Bays 12 front hot-swap 2.5" PCIe 5.0 NVMe Hot swap 2.5" Drive Bays
  • Power Supply
    2200 W  Titanium  Redundant

Key Applications

  • High-Performance File System
  • Diskless HPC Clusters
  • Scale Out All-Flash NVMe Storage
  • Big Data Analytics and AI

Key Features

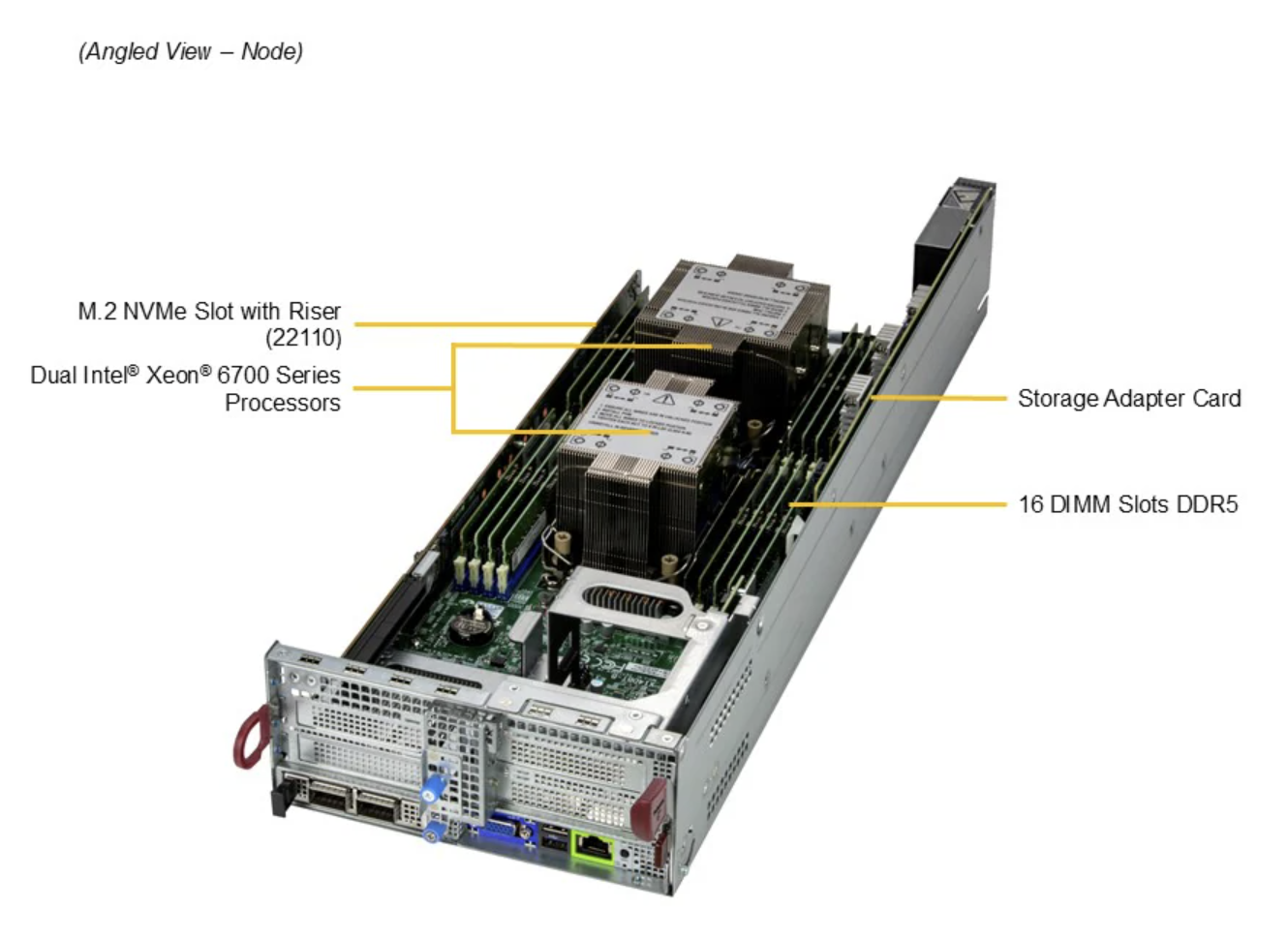

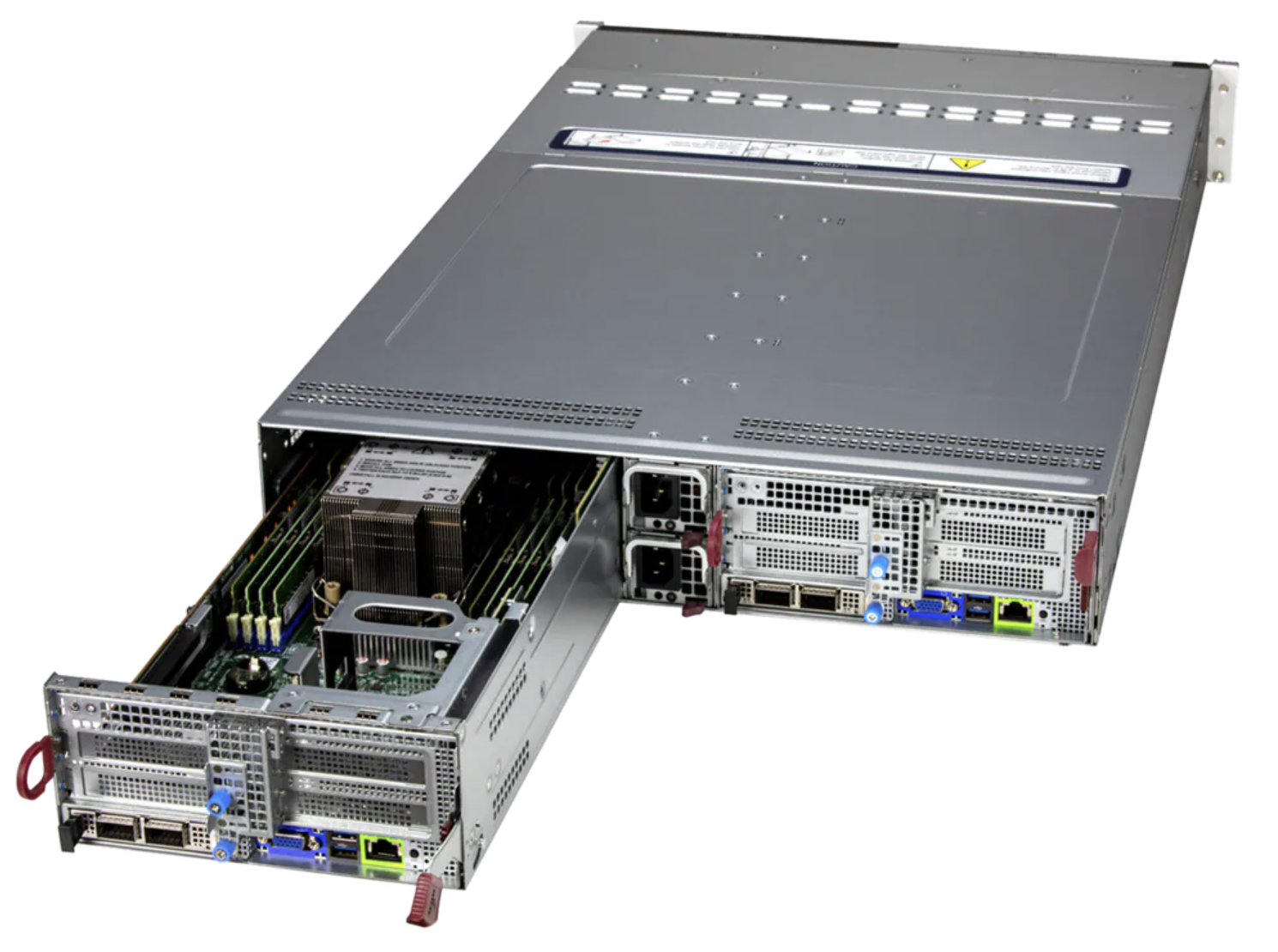

  • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket E2 Intel® Xeon® 6700 / 6500 series processors with P-cores or 6700 series processors with E-cores up to 300W with air cooling or 350W with liquid cooling
  • Single CPU configurations supported while maintaining all expansion slot functionality (see Option A for drive support limitations)

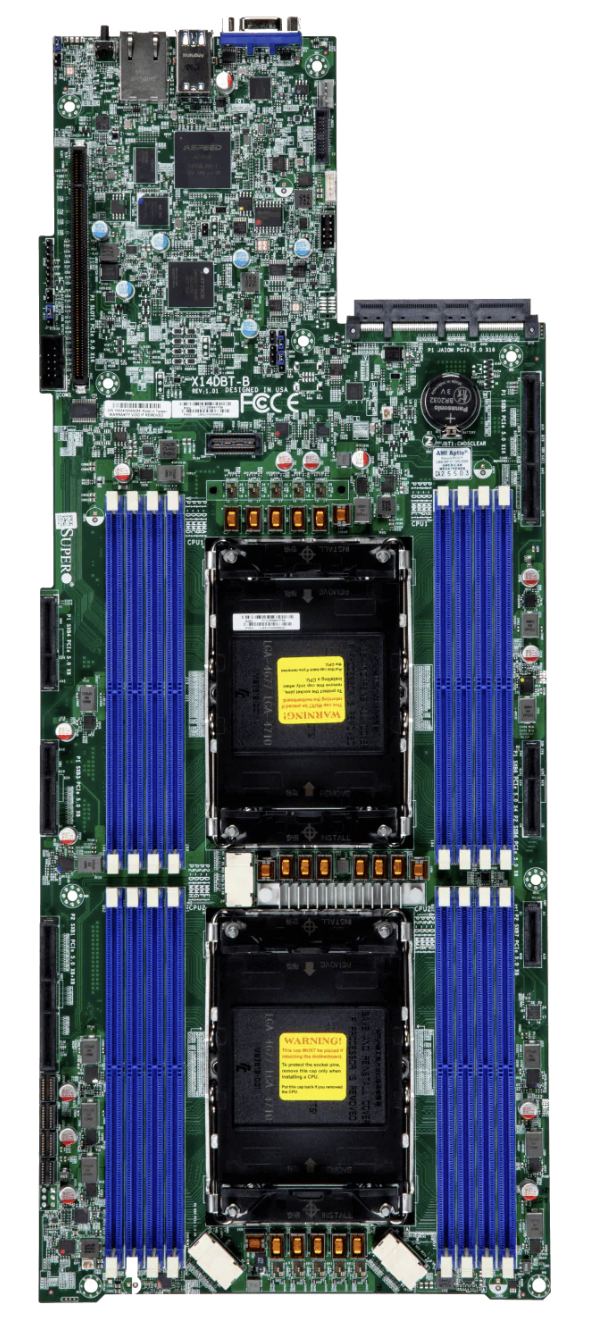

  • Up to 16 DIMMs supporting up to 4 TB DDR5-6400 in 1DPC
  • Flexible networking with OCP 3.0 AIOM slot

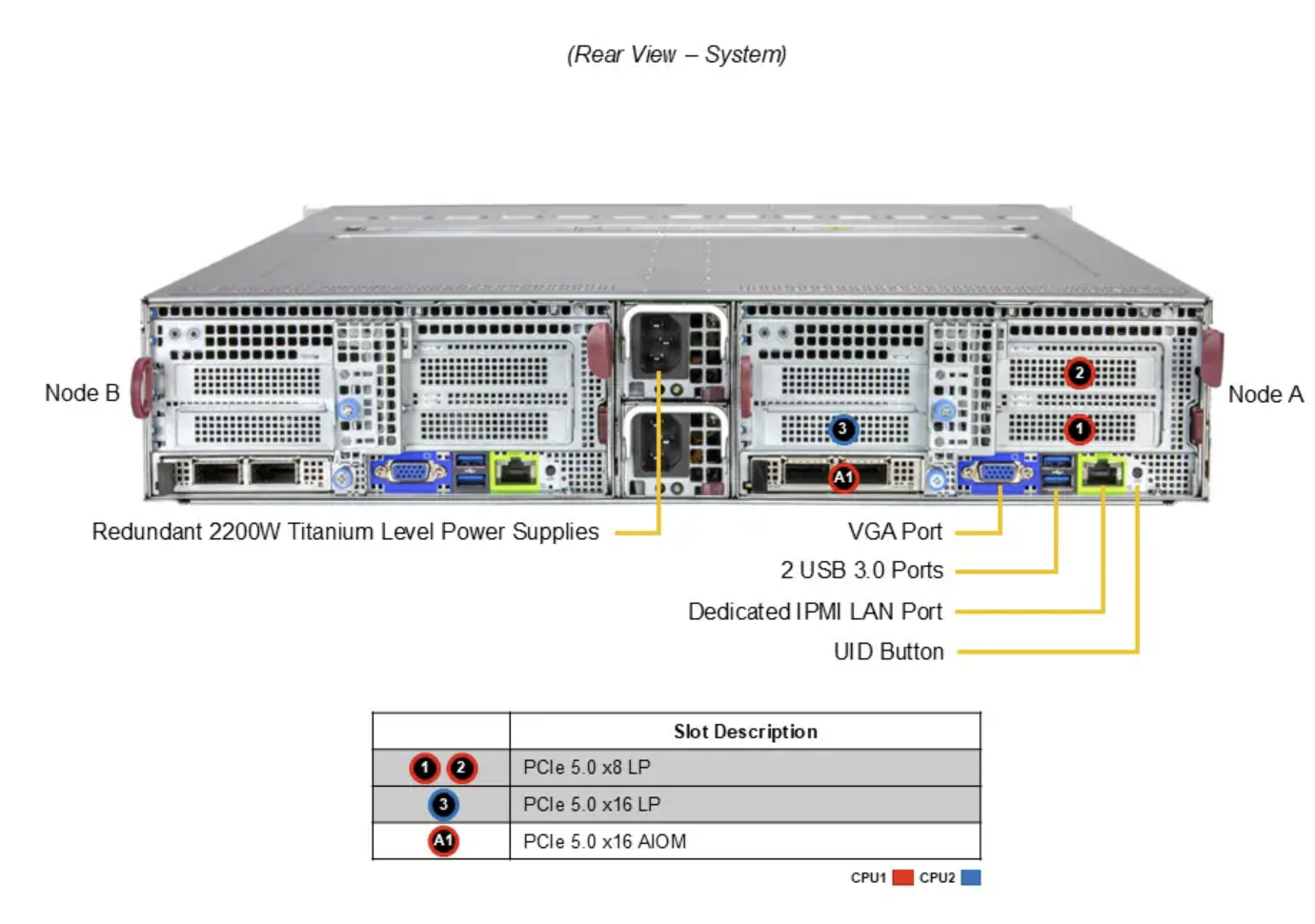

  • Up to 2 PCIe 5.0 ×8 LP + 1 PCIe 5.0 ×16 LP slots
  • Internal PCIe 5.0 for 2 NVMe M.2 support onboard
  • Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1

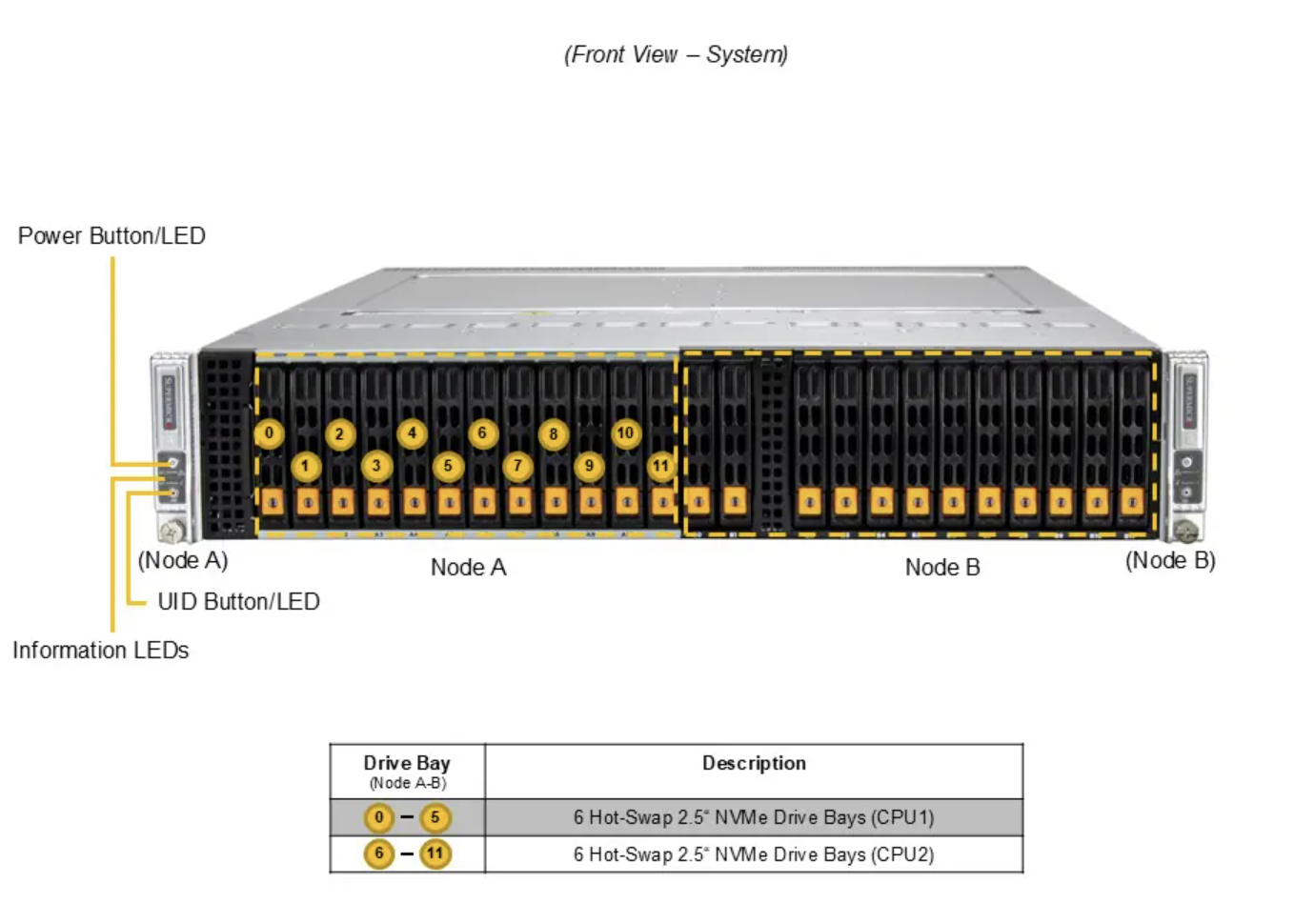

  • Up to 12 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays

Request a quote today

Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.

More Specifications

  • Configurable  Configurable by Request
  • Cores up to  144
  • TDP  350 W
  • M.2  2 NVMe M.2 slot Per Node
  • PCI-e  Default: 2 PCIe 5.0 x8 LP slots Per Node
  • Dimensions  17.68" (449 mm) Width
  • Dimensions  28.75" (730 mm) Depth
  • Dimensions  3.47" (88 mm) Height
  • Product Model  SYS-222BT-DNR
  • LAN  1 RJ45 1 GbE
  • NVMe  12
  • USB  2 USB 3.0 Gen2 Type-A ports(Rear) Per Node
  • Video Output  1 VGA port Per Node
  • DIMM Type  RDIMM
  • Chipset  System on Chip
  • On-board NVMe  NVMe
  • Operating Temperature  10°C ~ 35°C (50°F ~ 95°F)
