BigTwin SuperServer SYS-222BT-HNR
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Sockets 8
-
Max Supported Memory
16 TB DDR5 ECC Supported

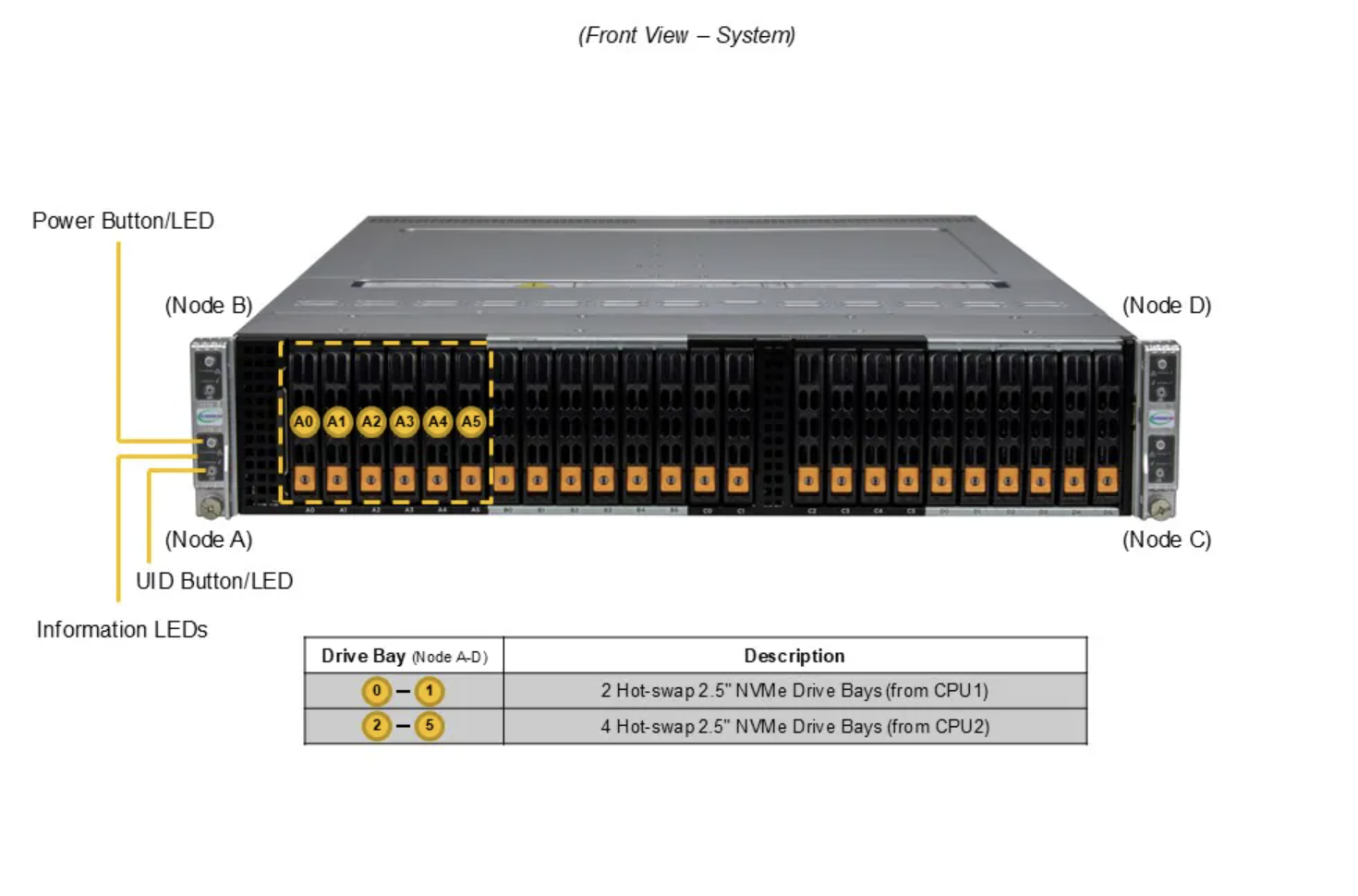

- Drive Bays Default: 6 front hot-swap 2.5" PCIe 5.0 NVMe Hot swap 2.5" Drive Bays
-
Power Supply
3600 W Titanium Redundant
Key Applications
- All-Flash NVMe Hyperconverged Infrastructure
- Container-as-a-Service; Application Accelerator
- High-Performance File System
- Diskless HPC Clusters
Key Features

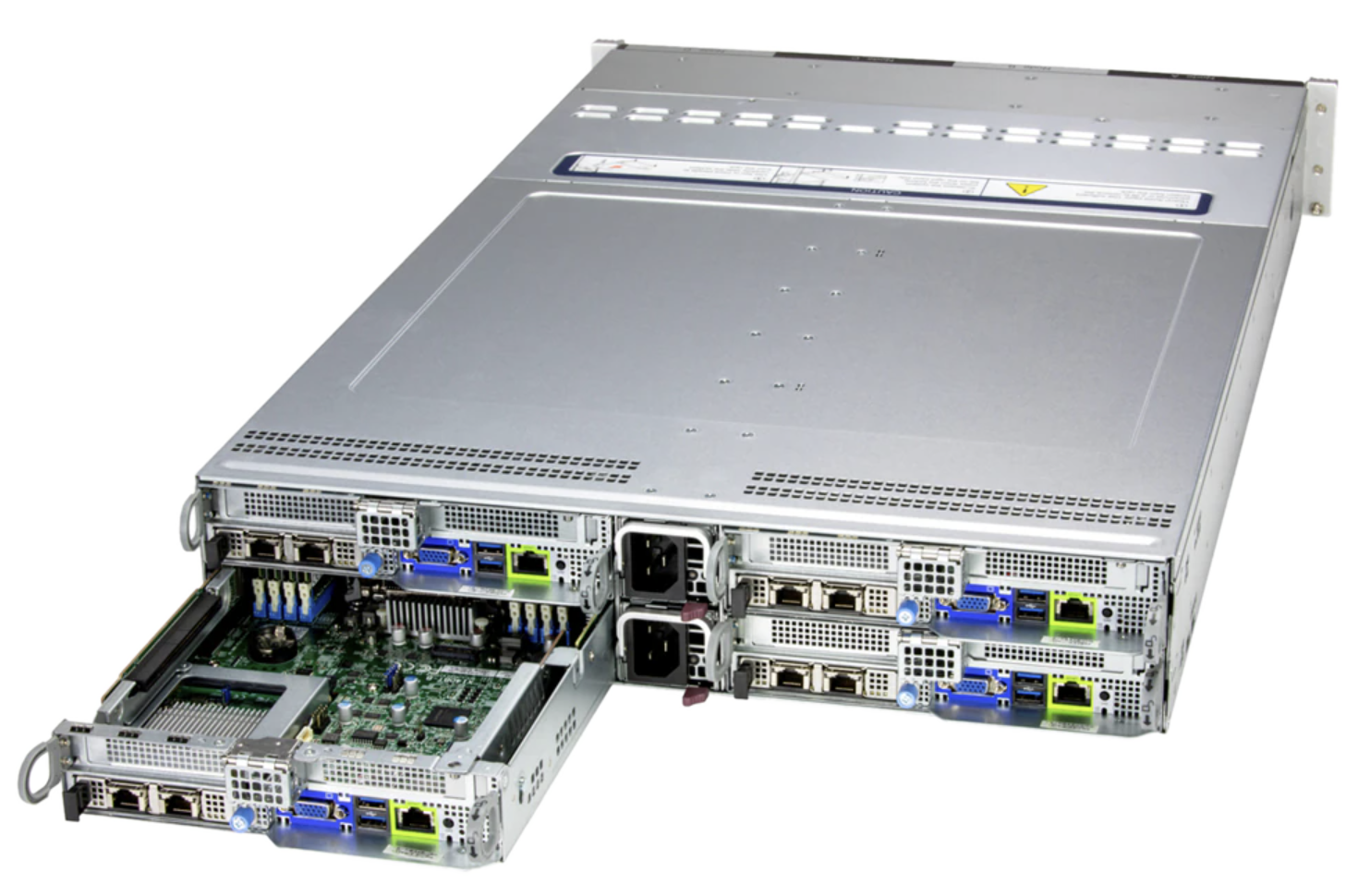

- Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

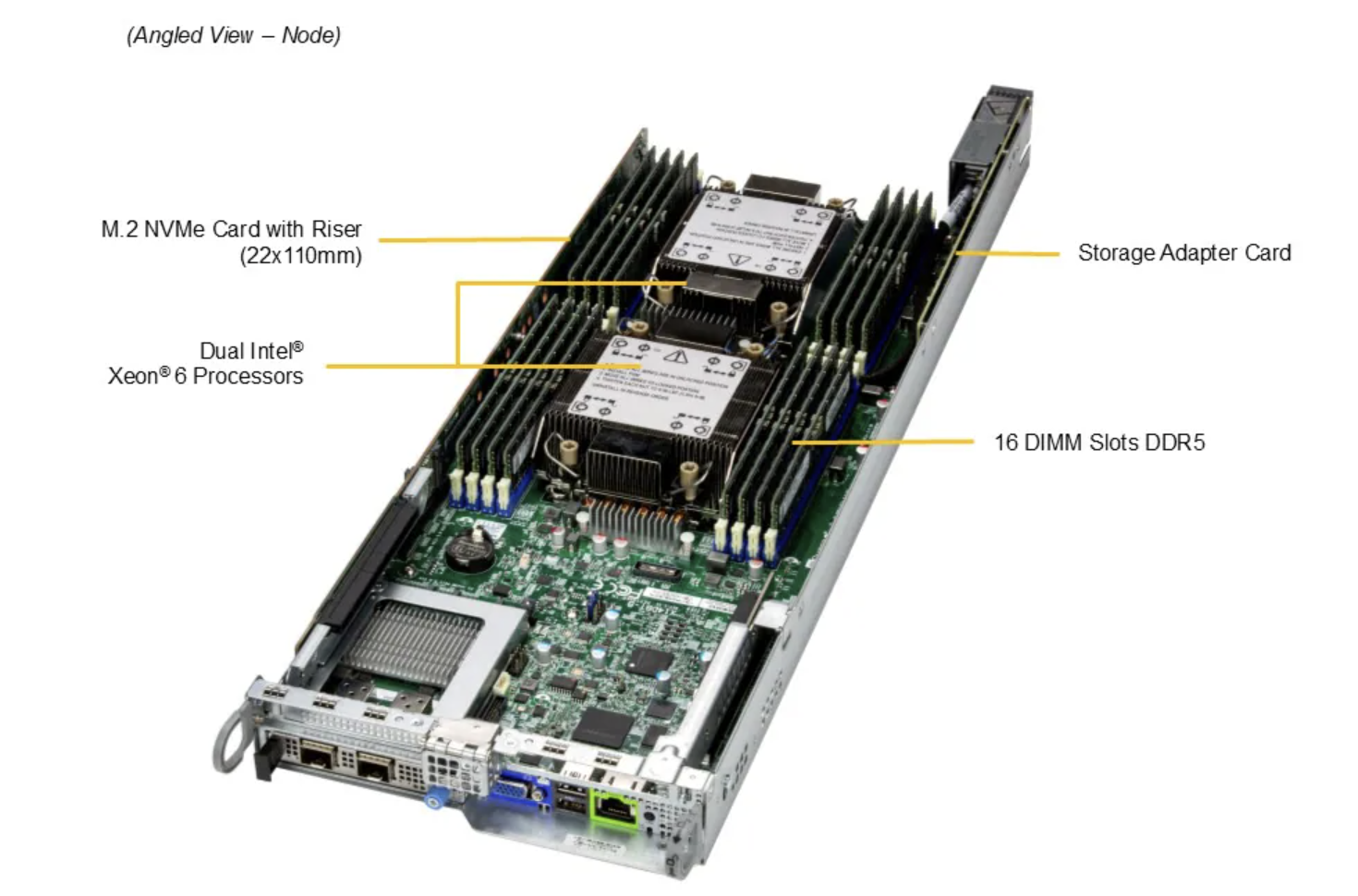

- Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 / 6500 series processors with P-cores or 6700 series processors with E-cores up to 205W with air cooling or 350W with liquid cooling
- Up to 16 DIMMs supporting up to 4 TB DDR5-6400 in 1DPC
- Flexible networking with up to 1 OCP 3.0 compatible AIOM slot

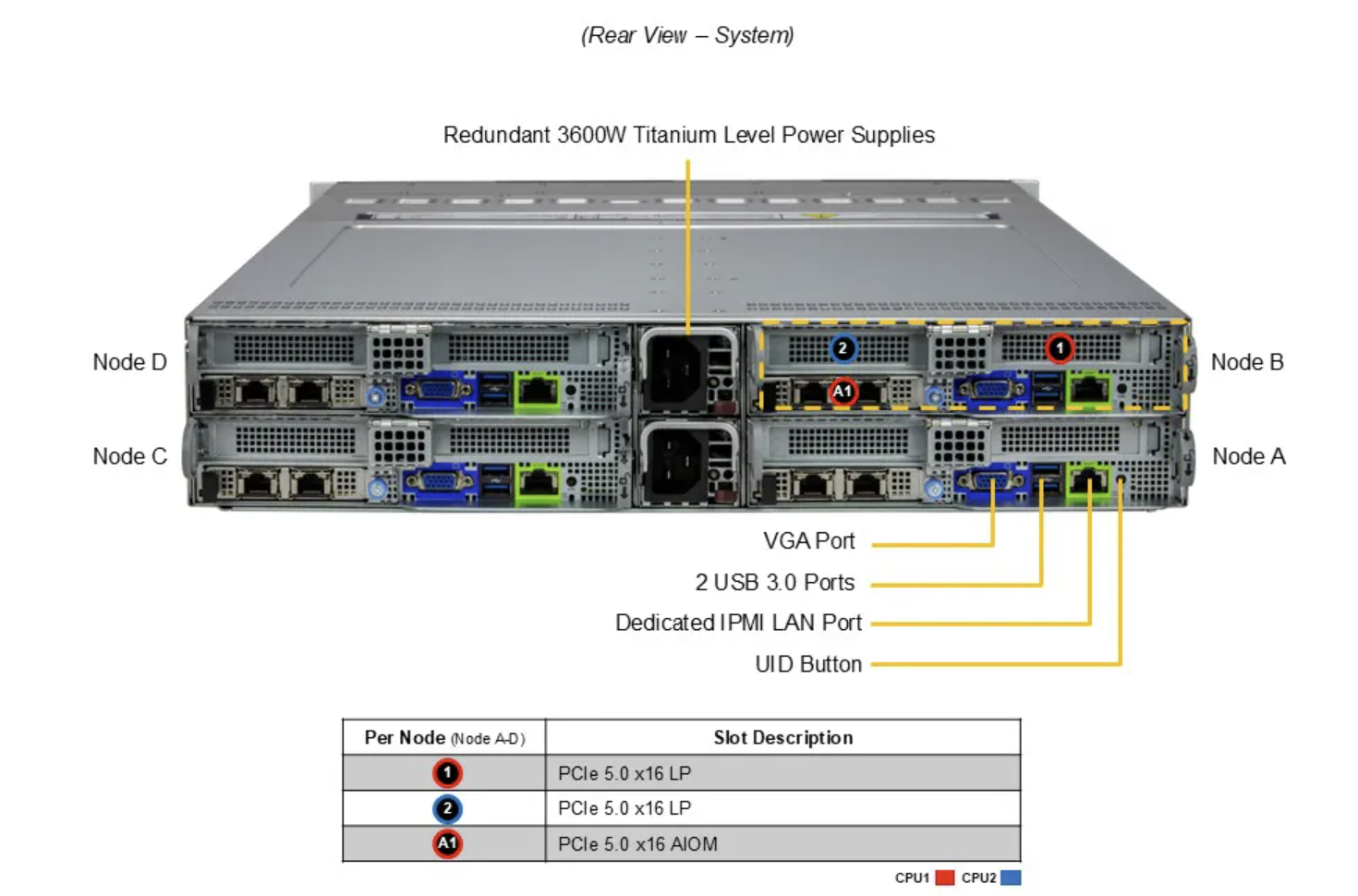

- Up to 2 PCIe 5.0 ×16 LP + 1 PCIe 5.0 ×16 AIOM slots
- Up to 6 front hot-swap 2.5″ NVMe drive bays
- 2 Redundant 3600W Titanium Level power supplies
- 2U Rackmount chassis with 28.75″ (730 mm) depth
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 350 W
- M.2 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110) Per Node
- PCI-e Default: 2 PCIe 5.0 x16 LP slots Per Node
- Dimensions 17.68" (449 mm) Width
- Dimensions 28.75" (730 mm) Depth
- Dimensions 3.47" (88 mm) Height
- Product Model SYS-222BT-HNR
- LAN 1 RJ45 1 GbE
- NVMe 6 Per Node
- USB 2 USB 3.0 Gen2 Type-A ports(Rear) Per Node
- Video Output 1 VGA port Per Node
- DIMM Type RDIMM
- Chipset System on Chip
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
