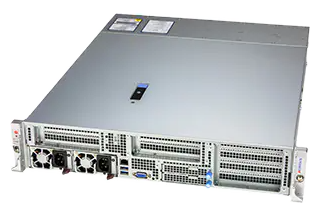

IoT SuperServer SYS-222HE-FTN
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Sockets 2
-
Max Supported Memory
8 TB DDR5 ECC Supported

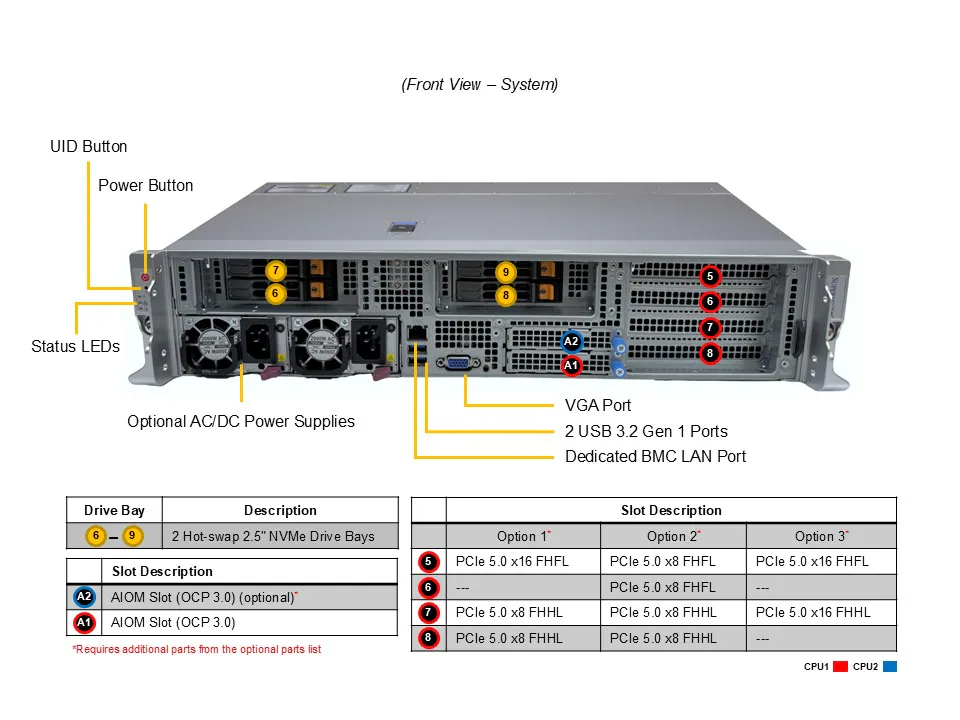

- Drive Bays 6 rear hot-swap 2.5" NVMe/SAS/SATA Rear Hot swap 2.5" Drive Bays
-
Power Supply
2000 W Titanium Redundant
Key Applications
- Virtualization
- Software-defined Storage
- 5G Core and Edge
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
Key Features
- Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

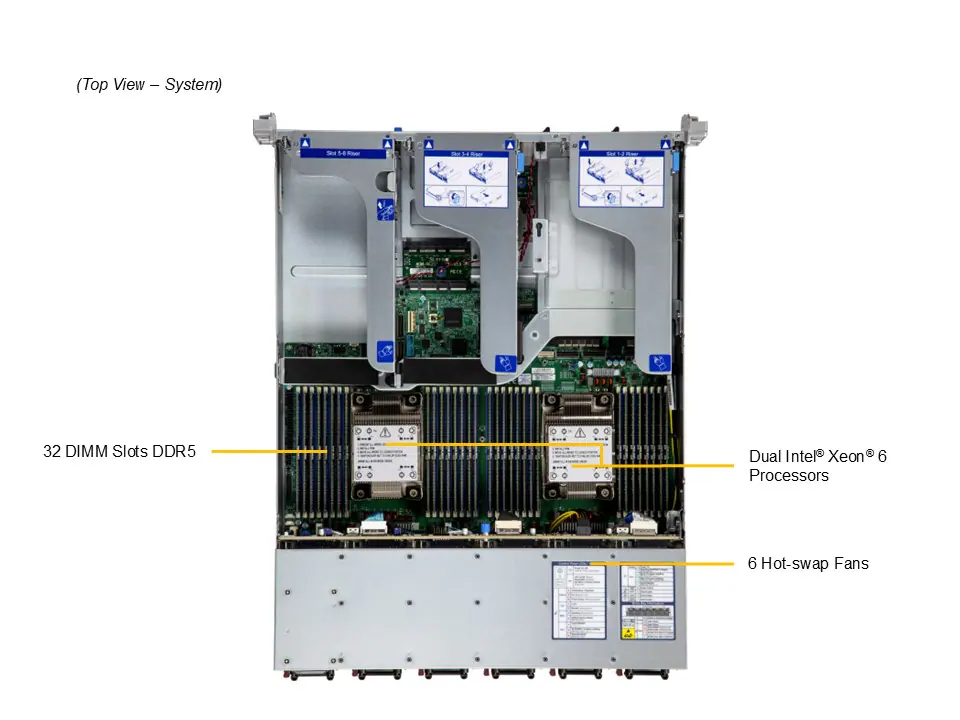

- 32 DIMM slots supporting up to 8TB of memory

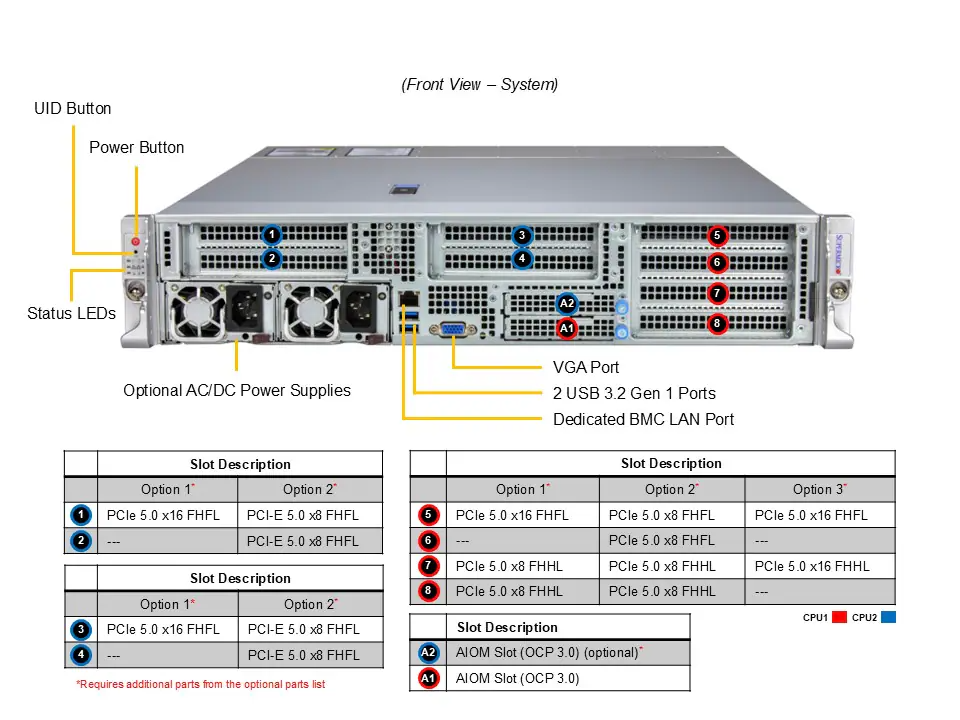

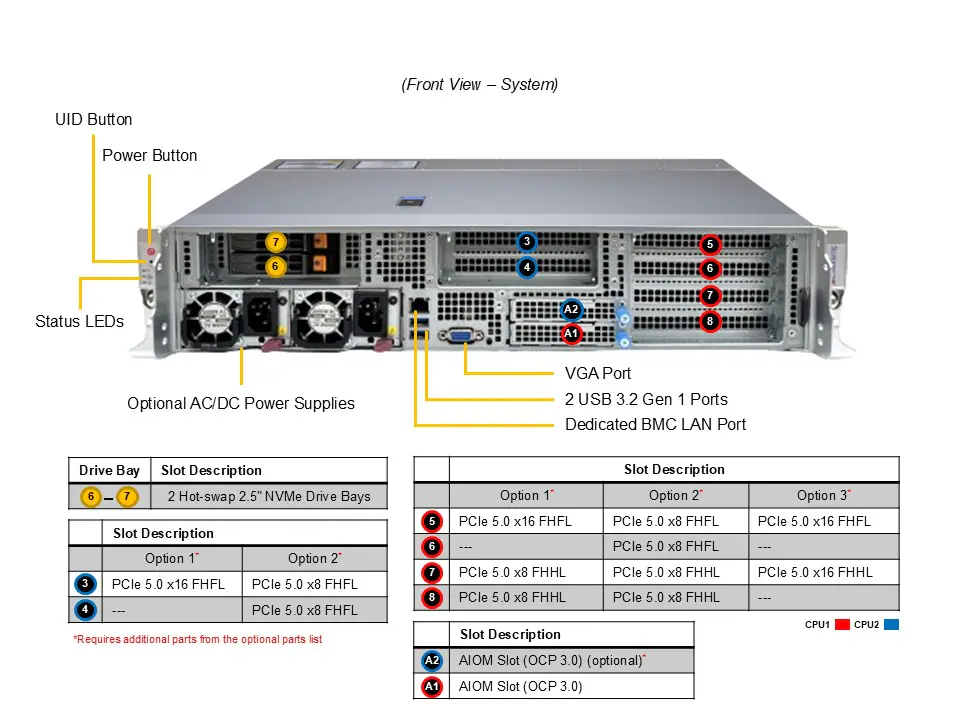

- Optional PCIe slot configurations up to 8 PCIe 5.0 x8 (6 FHFL + 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL) slots with support for double-width GPU/Accelerator cards
- Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)

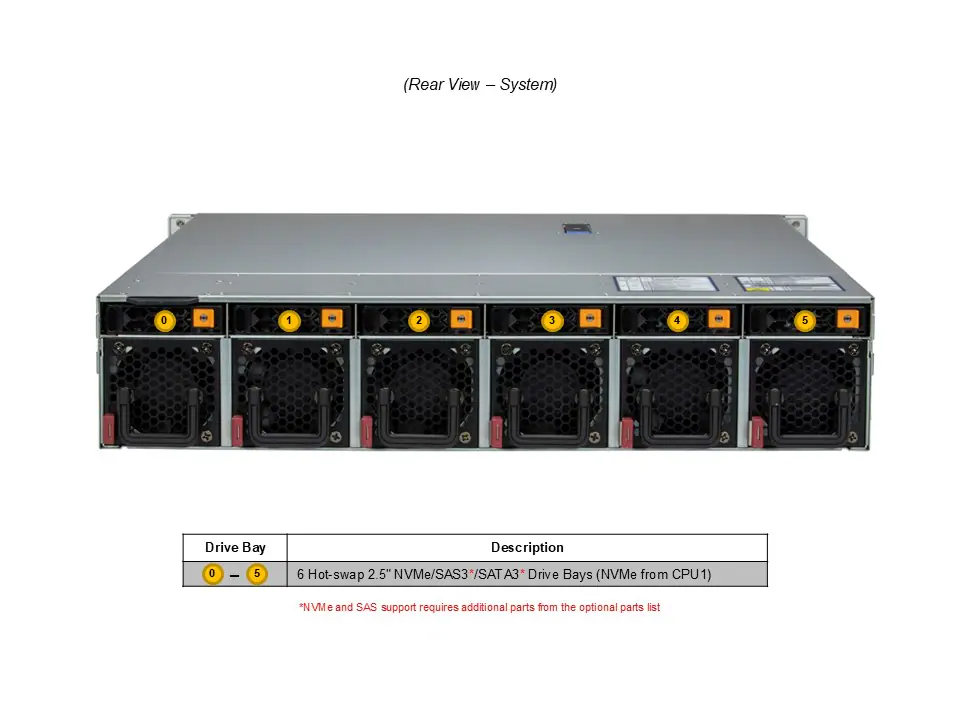

- 6 Rear hot-swap 2.5" NVMe/SAS/SATA drive bays with optional configurations for additional 2 or 4 front hot-swap 2.5" NVMe drive bays (space share with PCIe slots); 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 330 W
- M.2 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- PCI-e Option A: 3 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
- Dimensions 17.2" (436.88 mm) Width
- Dimensions 22.6" (574 mm) Depth
- Dimensions 3.5" (88.9 mm) Height
- Product Model SYS-222HE-FTN
- LAN
- SATA Ports 6 NVMe / SAS / SATA
- USB 2 USB 3.0 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
