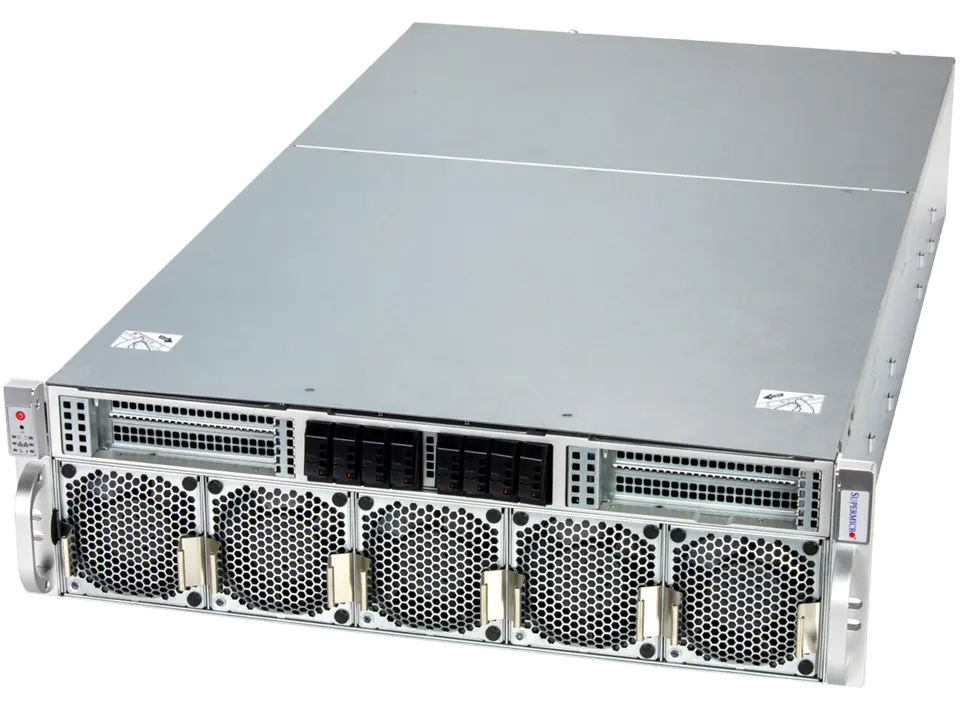

IoT SuperServer SYS-322GA-NR
- Form Factor 3U Rackmount
- Supported CPU Intel Xeon 6900 P-cores
- CPU Sockets 2
-
Max Supported Memory
6 TB DDR5 ECC Supported
- Drive Bays Hot swap 3.5" Drive Bays
-
Power Supply
3200 W Titanium Redundant
Key Applications
- High Performance Computing
- AI / Deep Learning Training
- Industrial Automation, Retail
- Healthcare
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Climate and Weather Modeling
- Finance & Economics
- Edge AI Inferencing
Key Features

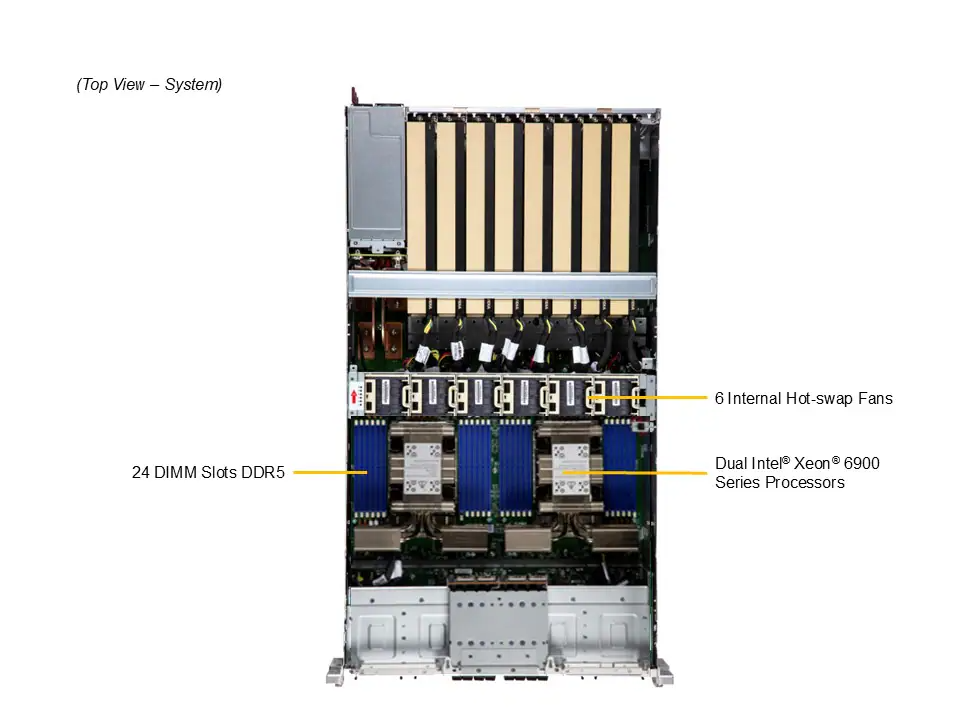

- Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
- 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
- Up to 10 PCIe 5.0 x16 FHFL or 20 PCIe 5.0 x8 FHFL slots

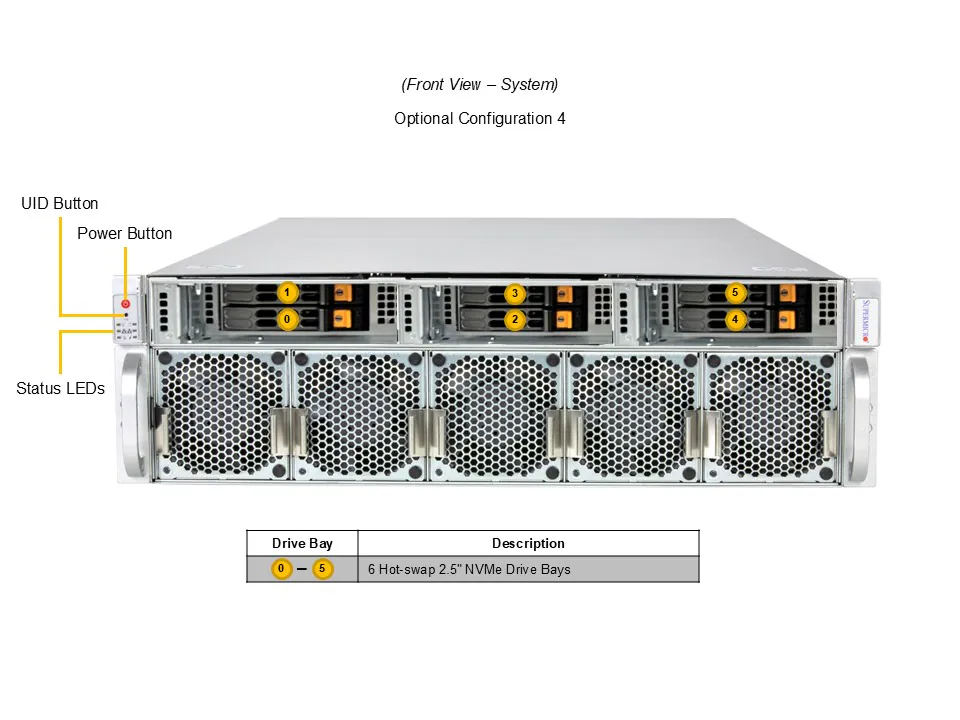

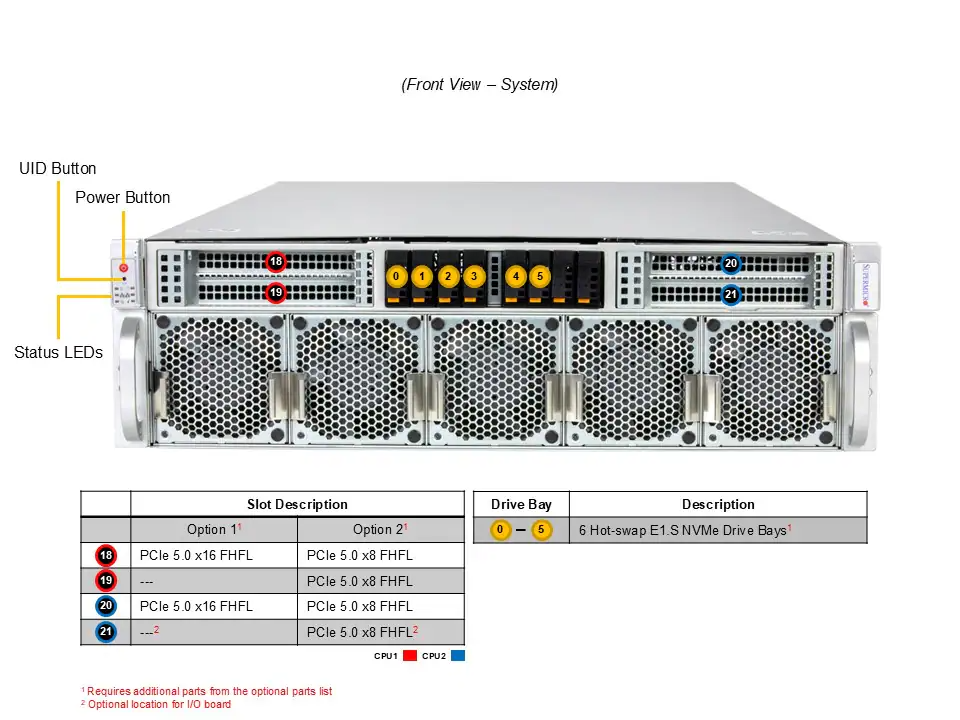

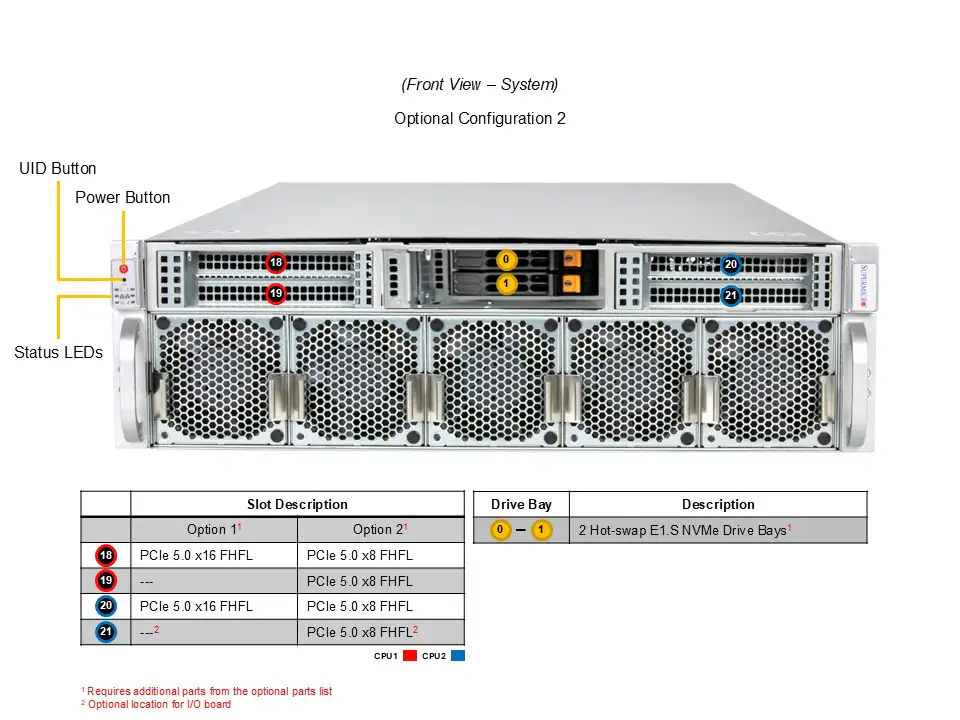

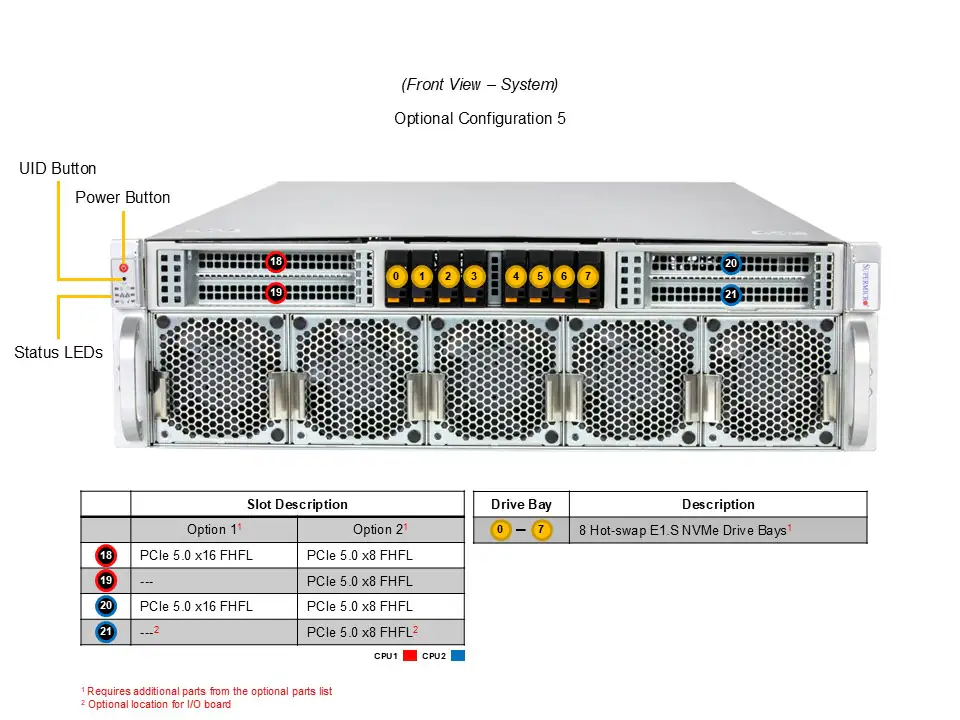

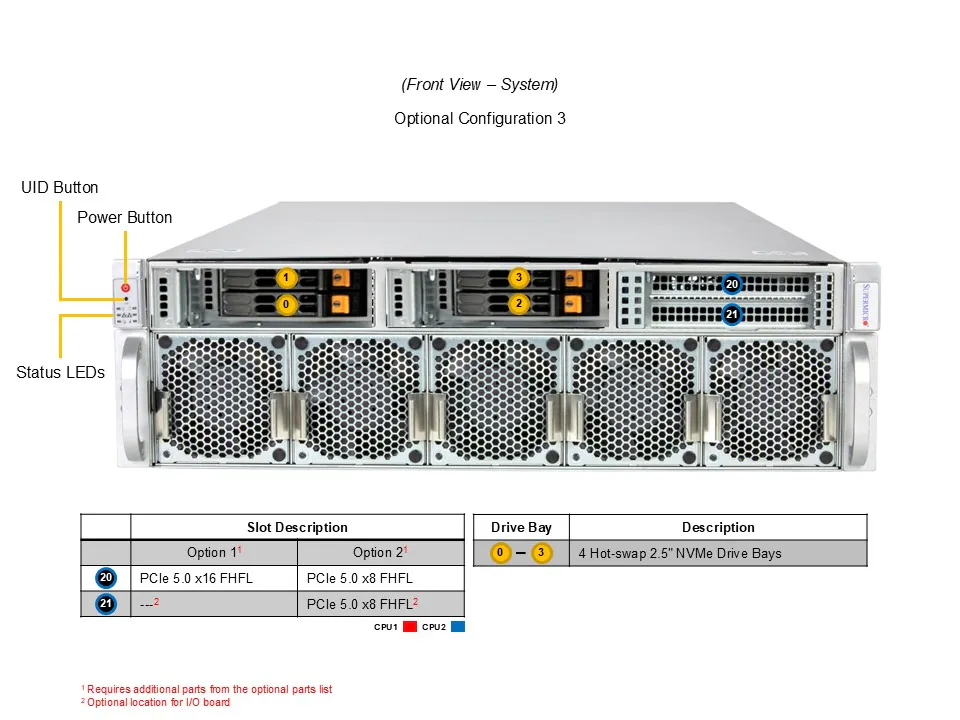

- 6/8/14 hot-swap E1.S NVMe drive bays or 2/4/6 hot-swap 2.5" NVMe drive bays

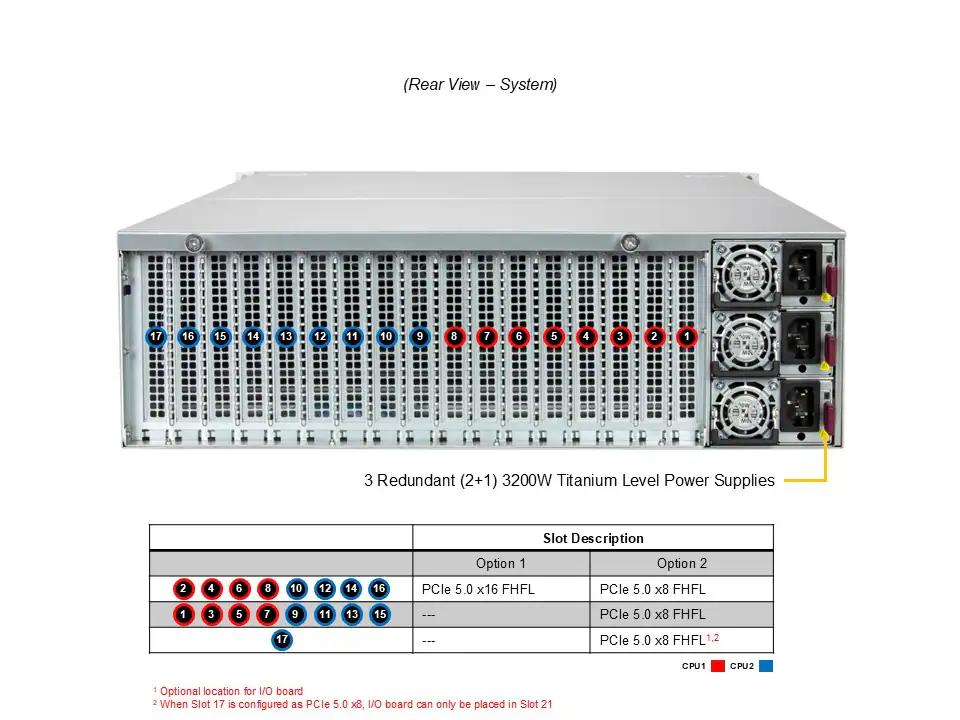

- 3x 3200W or 2700W Redundant (2+1) Titanium Level power supplies
- Support up to 8 Double Width Full Height Full Length GPU or 19 Single Width GPU
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 128
- CPU Manufacturer Intel
- TDP 500 W
- M.2 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280)
- PCI-e Default: 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
- Dimensions 17.26" (438.4 mm) Width
- Dimensions 31.5" (800 mm) Depth
- Dimensions 5.2" (132.1 mm) Height
- Product Model SYS-322GA-NR
- LAN
- NVMe
- USB 2 USB 3.2 Gen1 Type-A ports
- Video Output
- DIMM Type MRDIMM
- Chipset System on Chip
- SATA Controller NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F) W
