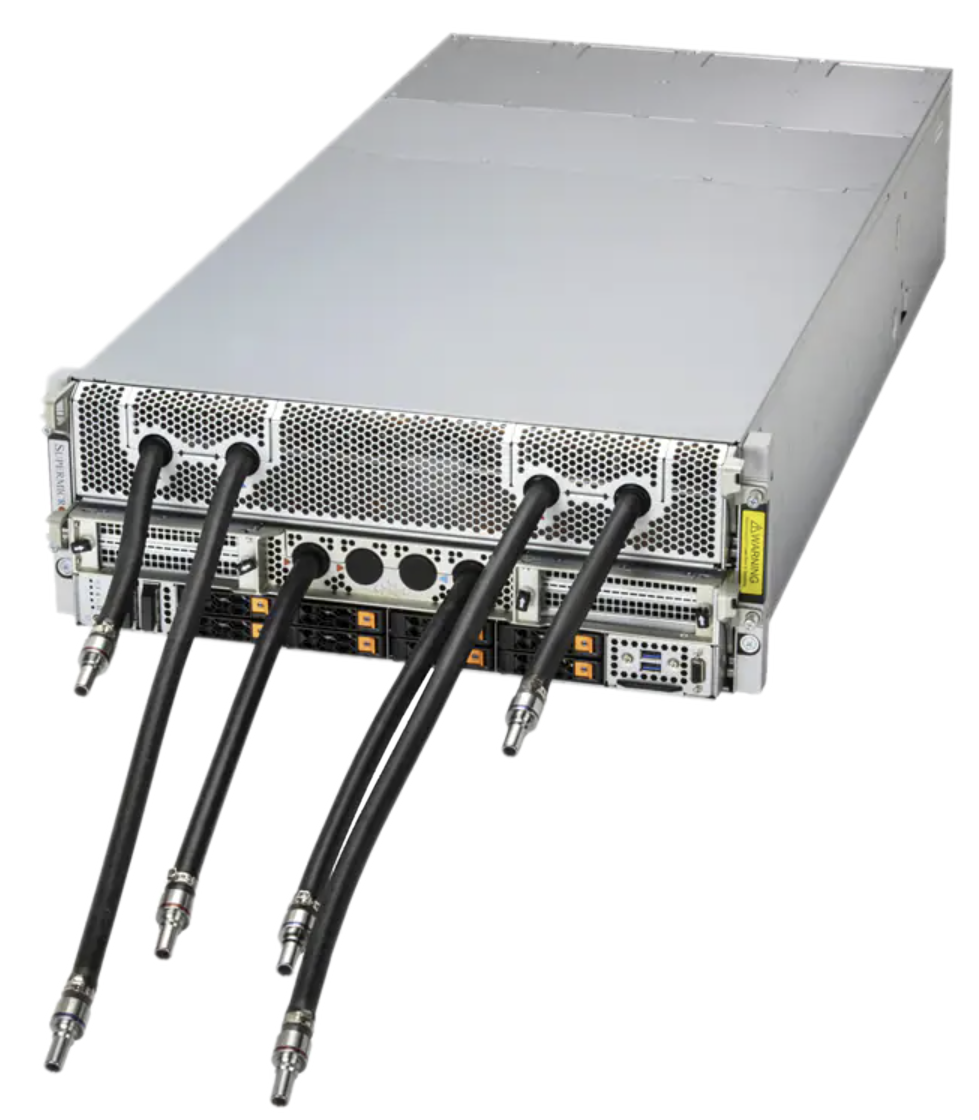

GPU SuperServer SYS-422GA-NBRT-LCC
- Form Factor 4U Rackmount
- Supported CPU Intel Xeon 6900 P-cores
- CPU Sockets 2
-
Max Supported Memory
6 TB DDR5 ECC Supported
- Drive Bays 8 front hot-swap 2.5" NVMe Hot swap 2.5" Drive Bays
-
Power Supply

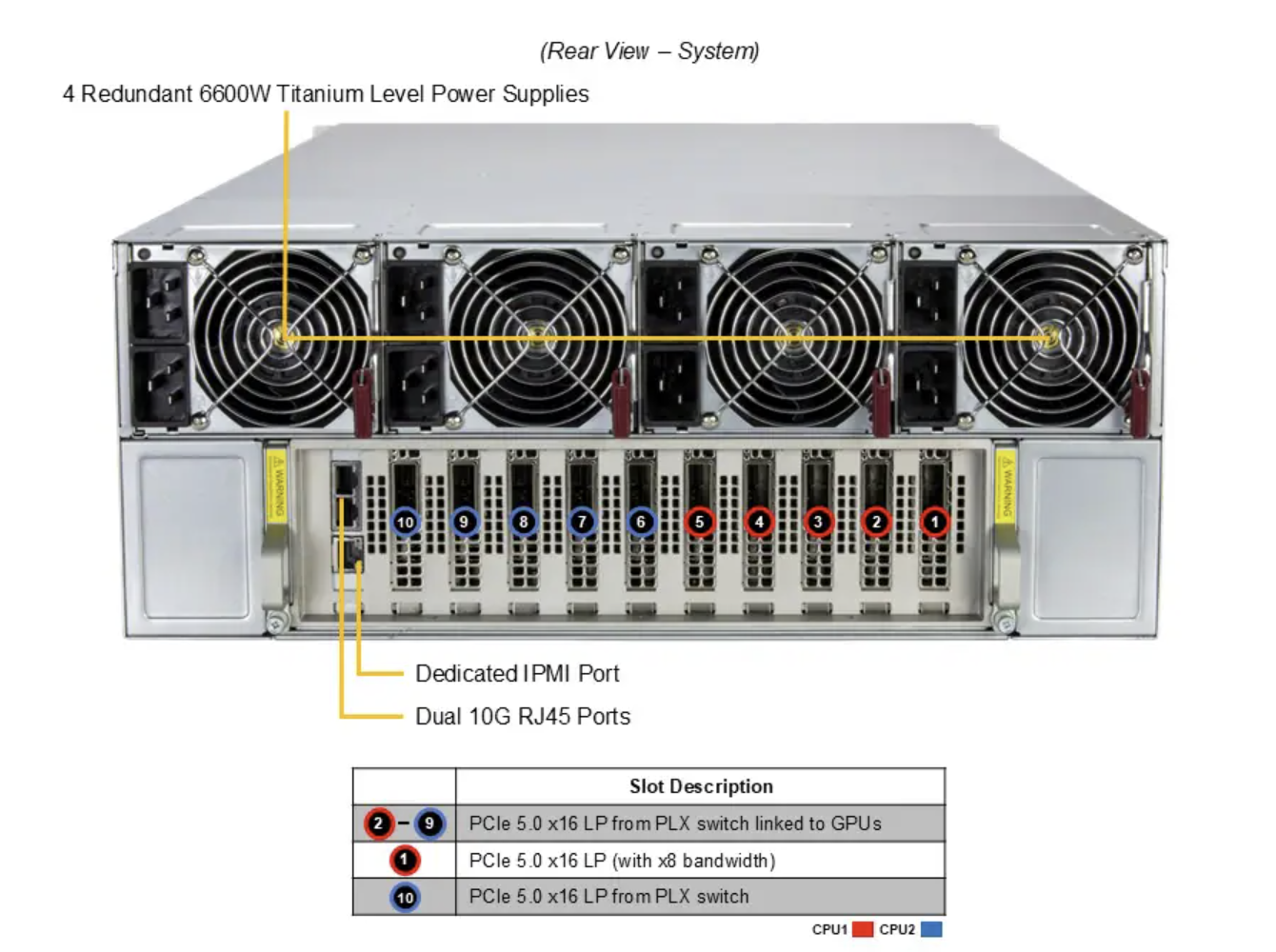

13200 W Titanium Redundant
Key Applications
- Scientific Research
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Finance Services and Fraud Detection
- AI / Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
- High Performance Computing (HPC)
- Autonomous Vehicle Technologies
Key Features
- Complete liquid-cooled rack integration is required for purchase

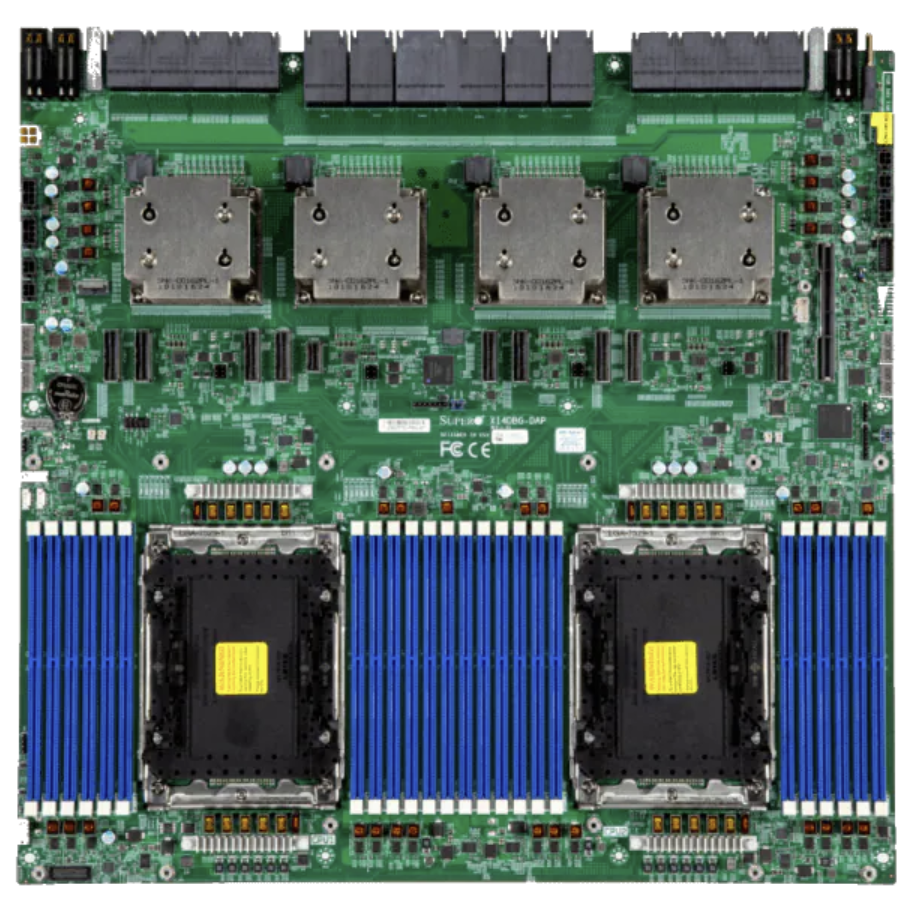

- Dual Intel® Xeon® 6900 series processors with P-cores

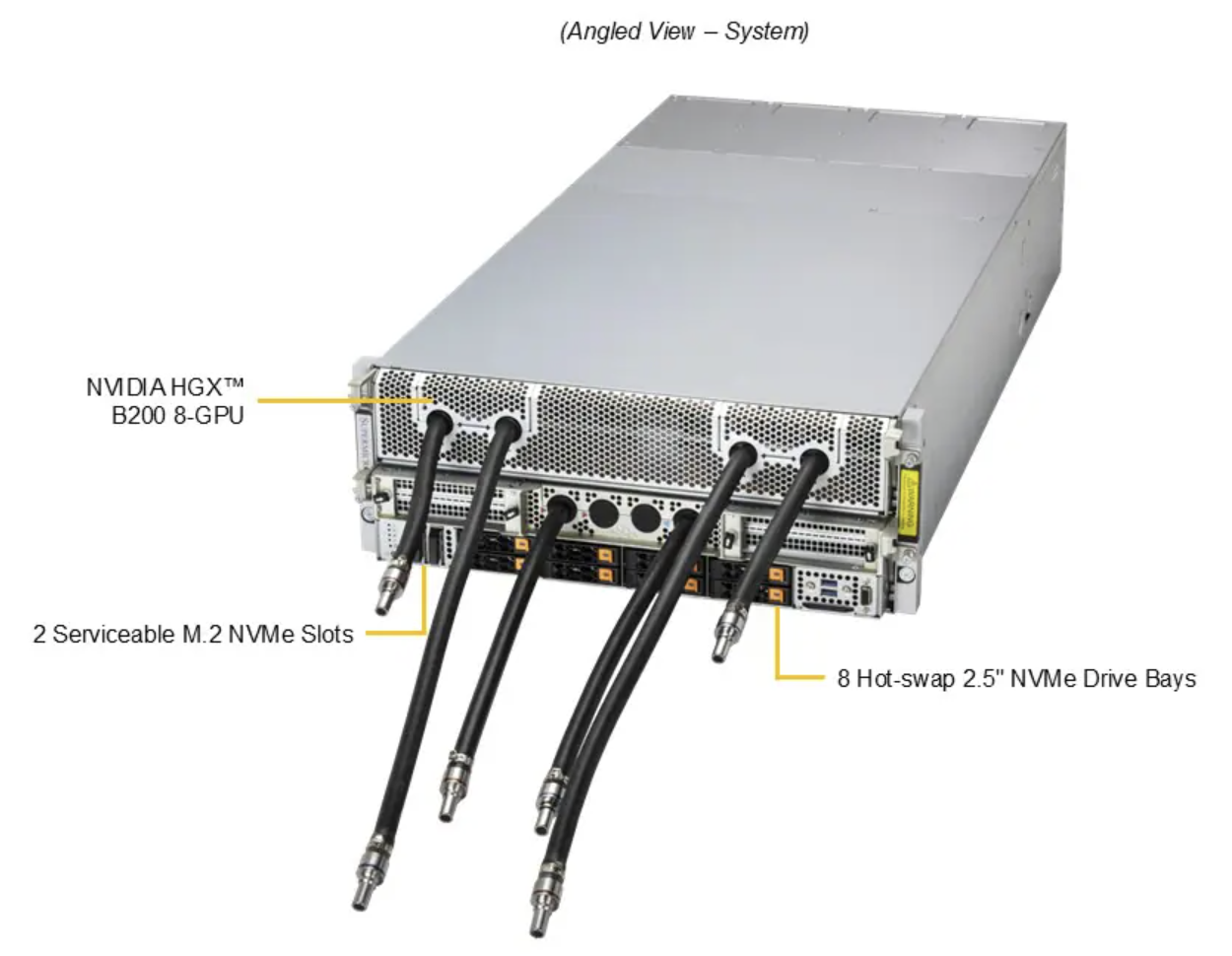

- 8 × NVIDIA SXM B200 GPUs, 1.4 TB of GPU memory space

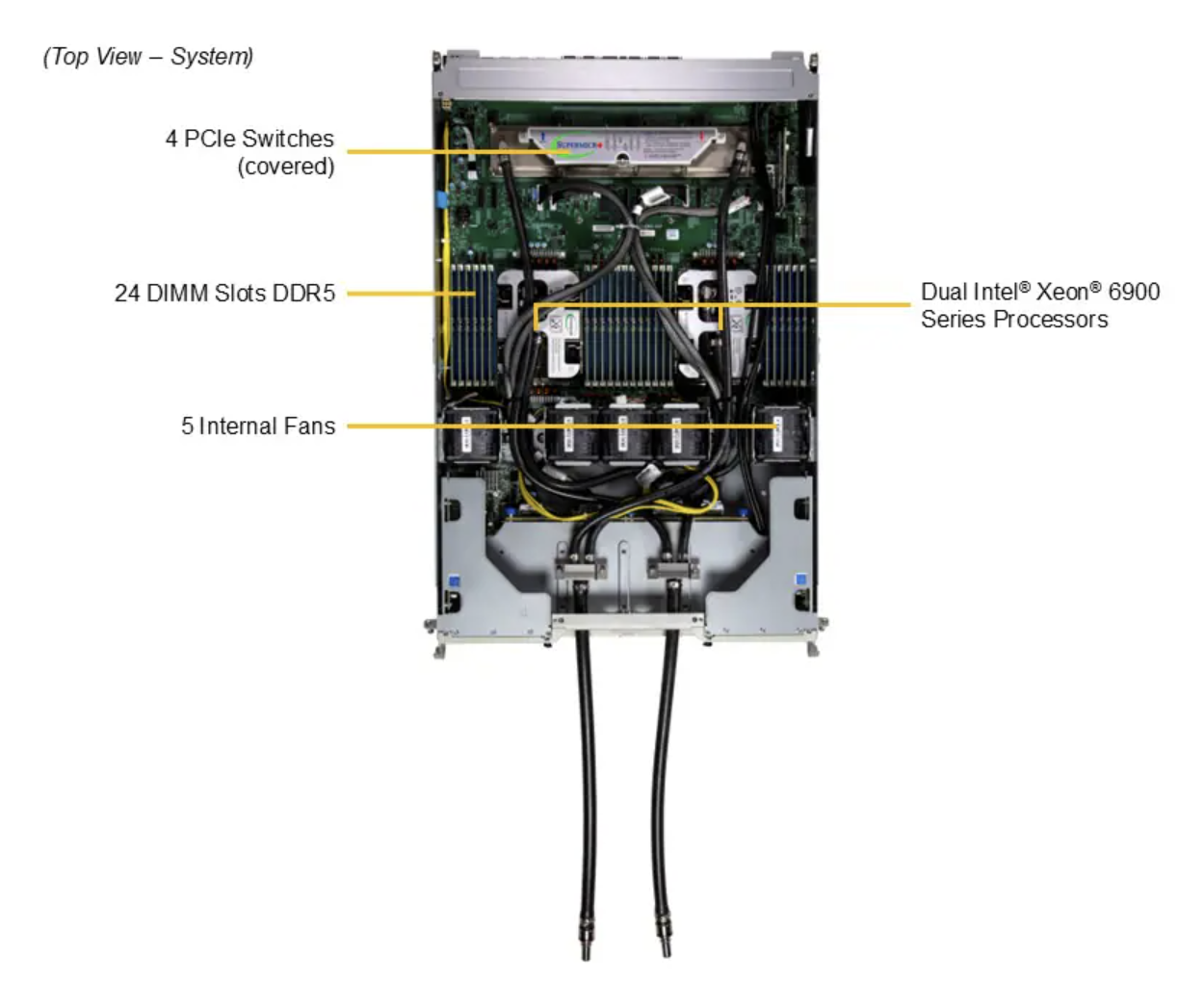

- 24 × DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800 MT/s (1DPC)
- 10 × PCIe 5.0 ×16 LP, 2 × PCIe 5.0 ×16 FHHL slots

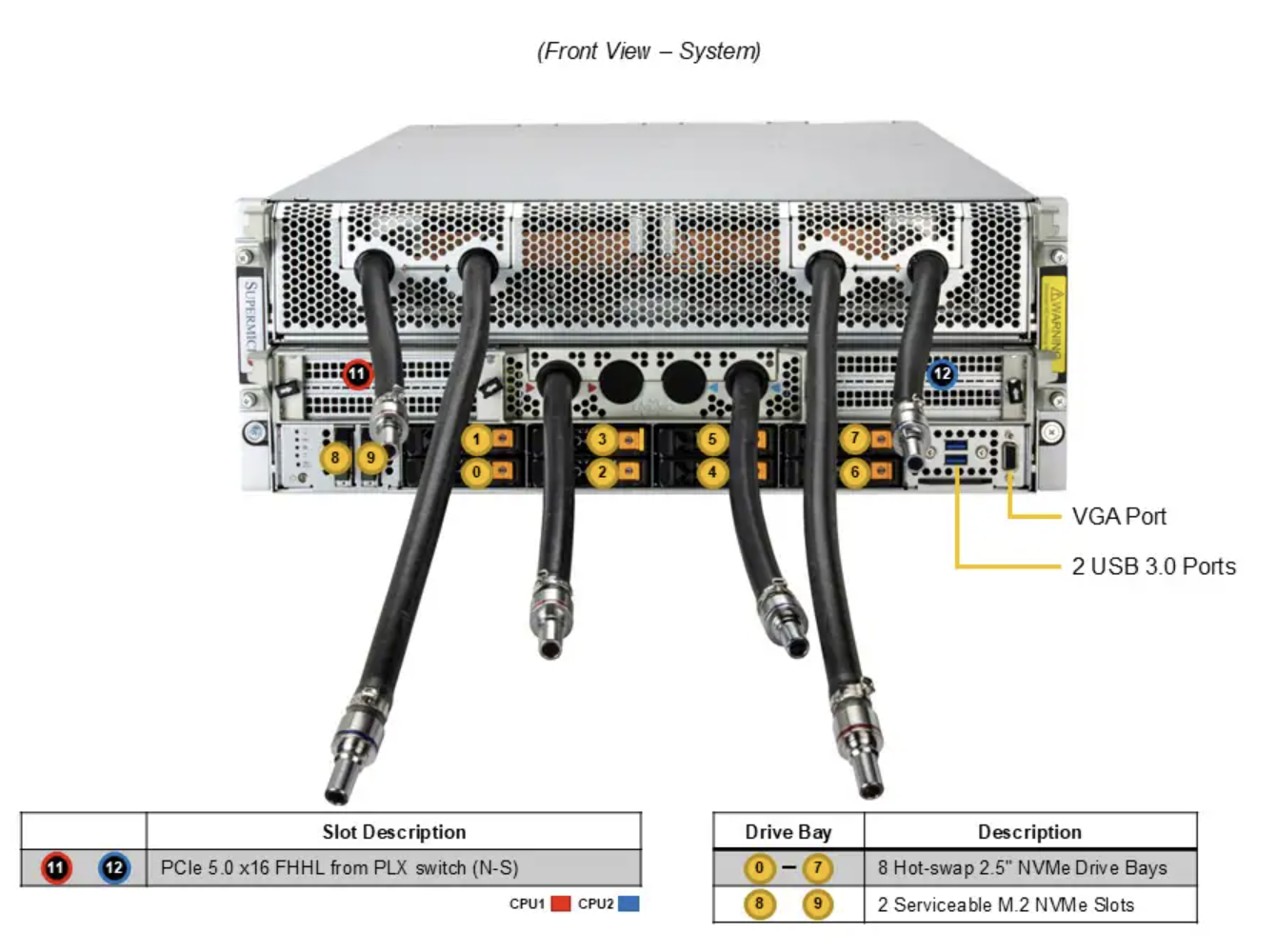

- 8 × front hot-swap 2.5″ NVMe U.2, 2 × front hot-swap NVMe M.2
- 2 × 10GbE RJ-45, 1 × Dedicated BMC/IPMI
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 128
- TDP 500 W
- M.2 2 Servicable M.2 NVMe slots (M-key)
- PCI-e 10 PCIe 5.0 x16 LP slots
- Dimensions 17.6" (449 mm) Width
- Dimensions 35.25" (895.35 mm) Depth
- Dimensions 6.85" (174 mm) Height
- Product Model SYS-422GA-NBRT-LCC
- LAN 2 RJ45 10GbE with Intel X710-AT2 RJ45 10GbE
- NVMe 8 NVMe
- USB 2 USB 3.0 ports(rear)
- Video Output 1 1 VGA port
- DIMM Type MRDIMM
- Chipset System on Chip
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
