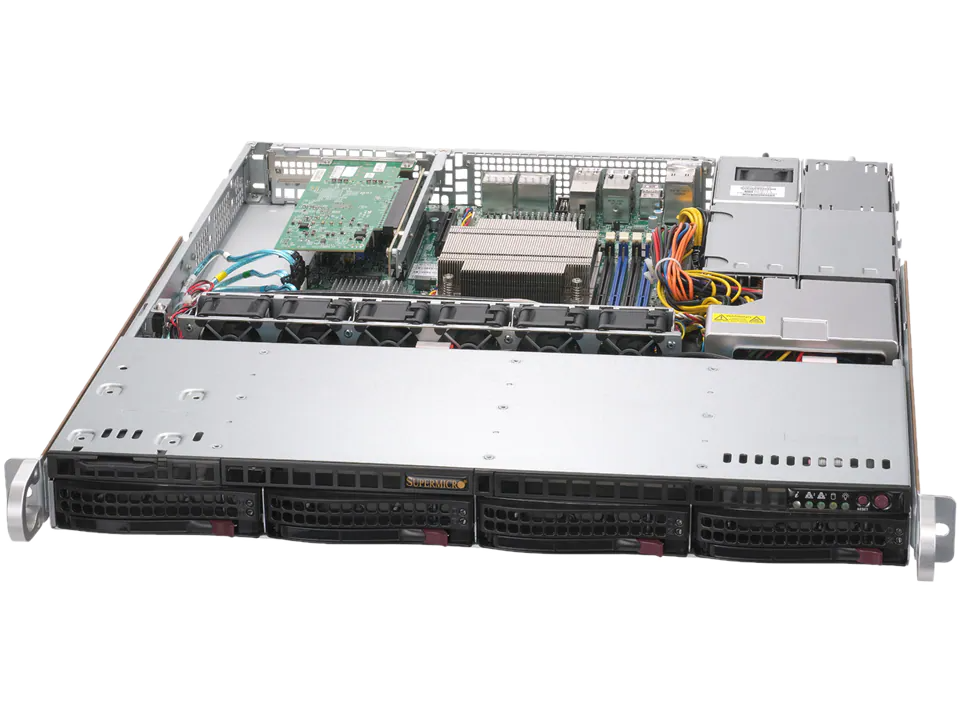

Embedded SuperServer SYS-512AR-N4T
- Form Factor 1U Rackmount
- Supported CPU Intel Core Ultra Series 2
- CPU Socket 1
-
Max Supported Memory
192 GB DDR5 ECC Supported
-
Power Supply
800 W Platinum Redundant
Key Applications
- Multi-Access Edge Computing
- Video Surveillance
- Retail
- Artificial Intelligence (AI) on Edge
Key Features
- Intel® Arrow Lake-S, 15th Gen Core Ultra 5/7/9 Processor, 95W
- DDR5 5600MHz, 4 slots ECC/Non-ECC UDIMM, up to 192GB
- 2x 2.5GbE and 2x 10GbE LAN
- 1 PCIe 5.0 x16 FHHL slot
- 4x SATA3 3.5" Drive Bays
- 600W/800W 100-240Vac Titanium/Platinum Single Power Supply (can be upgraded to redundant power supply)
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 24
- TDP 95 W
- M.2 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280/22110)
- PCI-e Default: 1 PCIe 5.0 x16 FHHL slot
- Dimensions 1.7" (43 mm) Height
- Dimensions 17.2" (437 mm) Width
- Dimensions 19.98" (507 mm) Depth
- Product Model SYS-512AR-N4T
- LAN 2 RJ45 10GBASE-T with Intel X550 RJ45 10GbE
- SATA Ports 4 SATA
- USB 4 USB 3.2 Gen2 Type-A ports(Rear)
- Video Output 2 DisplayPort 1.4 ports(Rear) DisplayPort 1.4
- DIMM Type UDIMM
- Chipset System on Chip
- SATA Controller SATA (6Gbps)
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
