BigTwin SuperServer SYS-622BT-DNC8R
- Form Factor 2U Rackmount
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Sockets 4
-
Max Supported Memory
8 TB DDR5 ECC Supported
- Drive Bays Default: 2 front hot-swap 3.5" PCIe 5.0 NVMe/SAS drive bays Hot swap 3.5" Drive Bays
-
Power Supply
2200 W Titanium Redundant
Key Applications
- Hyperconverged Infrastructure
- Scale-Out Object Storage
- Back-up & Recovery
Key Features

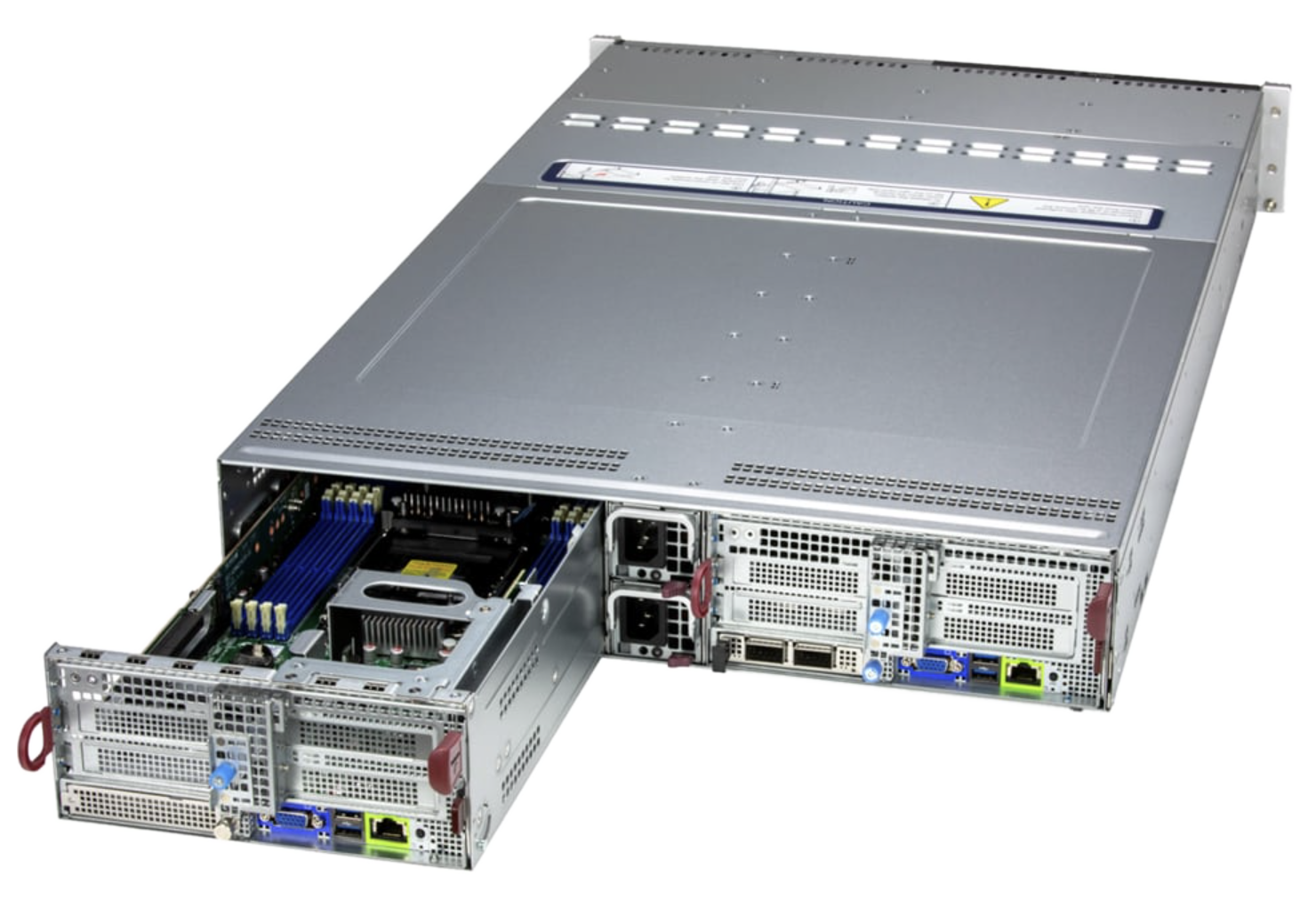

- Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

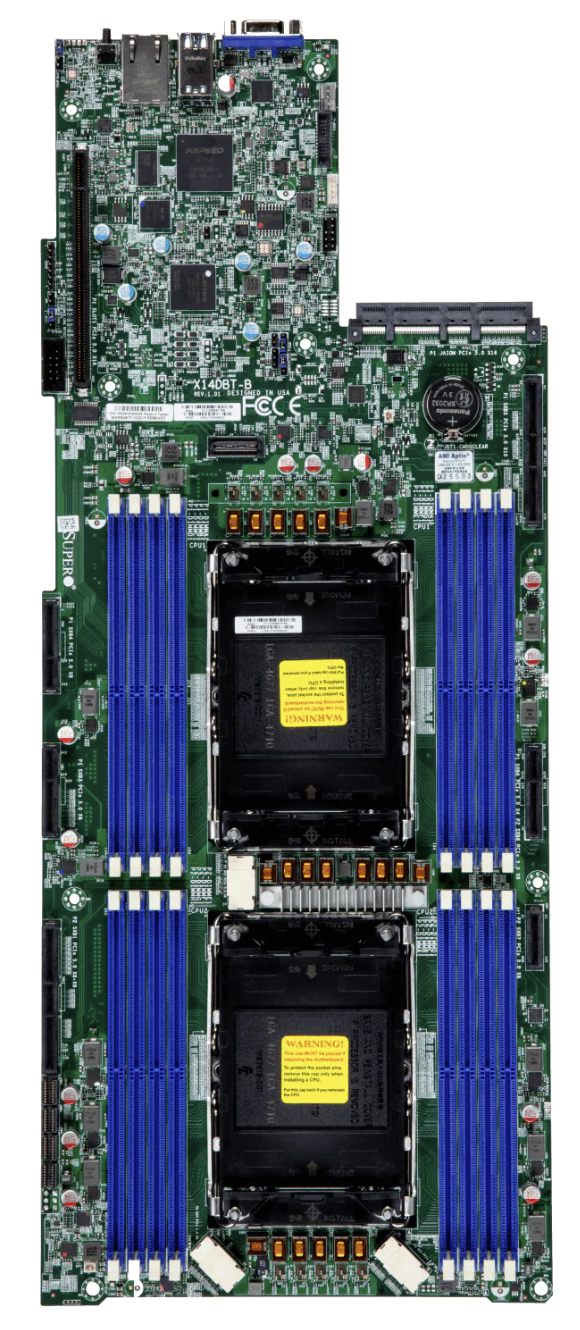

- Dual Socket E2 Intel® Xeon® 6700 / 6500 series processors with P-cores or 6700 series processors with E-cores up to 250W with air cooling or 350W with liquid cooling
- Single CPU configurations supported while maintaining all expansion slot functionality (see Option A for drive support limitations)
- Up to 16 DIMMs supporting up to 4 TB DDR5-6400 in 1DPC
- Flexible networking with OCP 3.0 AIOM slot
- Up to 2 PCIe 5.0 ×8 LP + 1 PCIe 5.0 ×16 LP slots
- Internal PCIe 5.0 for 2 × NVMe M.2 support onboard
- Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1

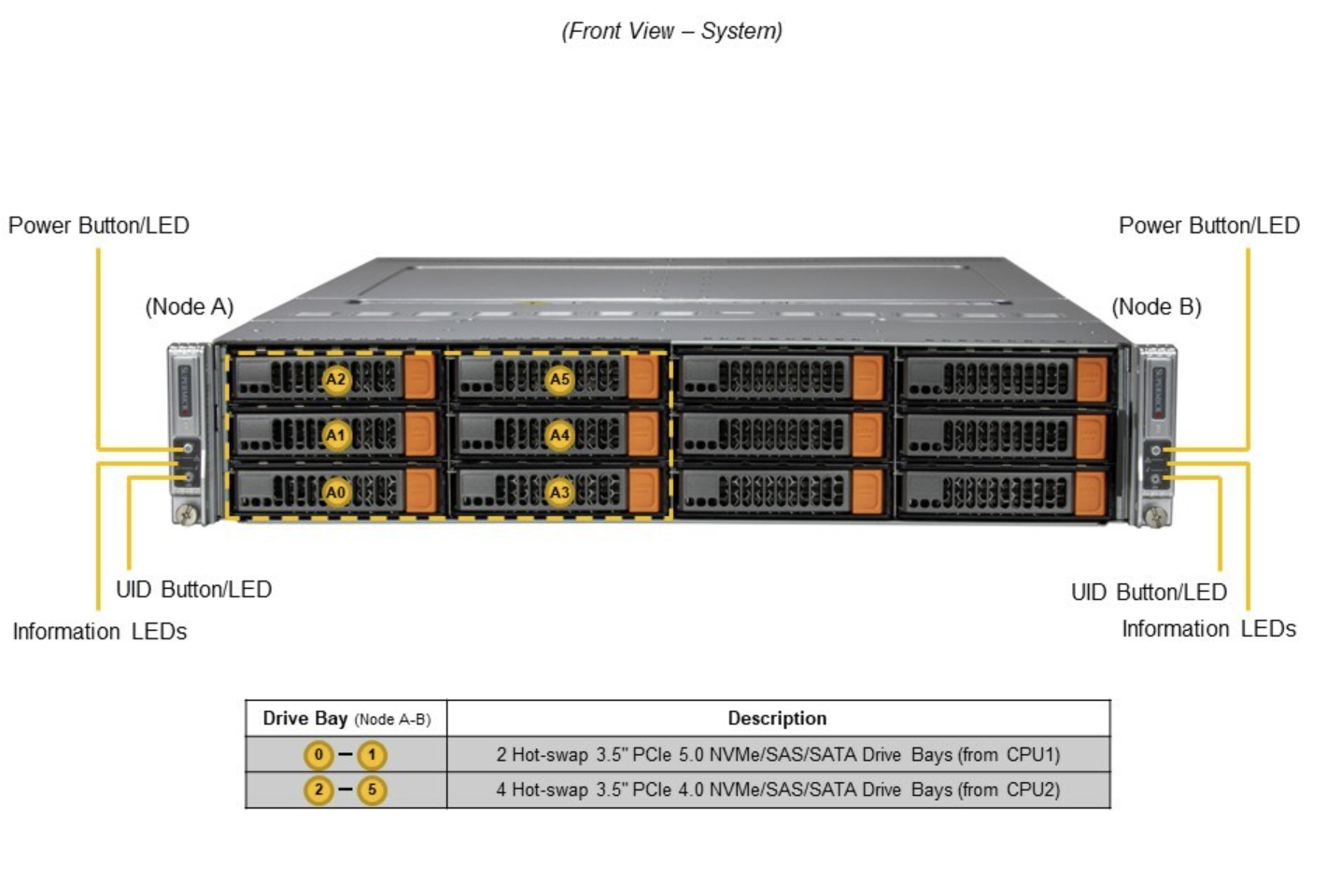

- Up to 6 front hot-swap 3.5″ NVMe / SAS drive bays
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 350 W
- M.2 2 NVMe M.2 slot Per Node

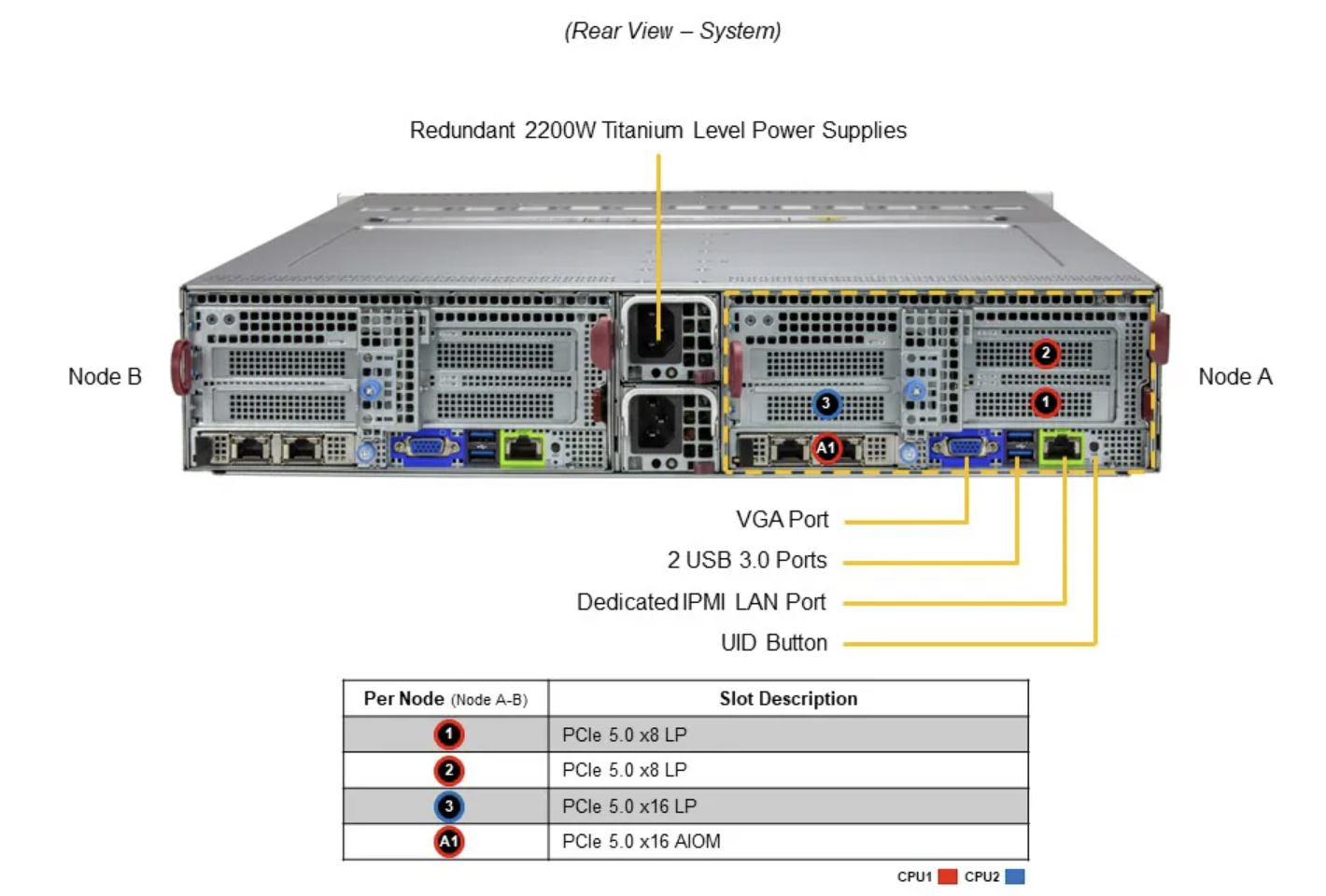

- PCI-e Default: 2 PCIe 5.0 x8 LP slots Per Node
- Dimensions 17.68" (449 mm) Width
- Dimensions 3.47" (88 mm) Height
- Dimensions 30.5" (774 mm) Depth
- Product Model SYS-622BT-DNC8R
- LAN 1 RJ45 1 GbE
- NVMe 6 Per Node
- USB 2 USB 3.0 Gen2 Type-A ports(Rear) Per Node
- Video Output 1 VGA port Per Node
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
