BigTwin SuperServer SYS-622BT-HNC8R

DEMAND_SYS-622BT-HNC8R
DEMAND_SYS-622BT-HNC8R
DEMAND_SYS-622BT-HNC8R
DEMAND_SYS-622BT-HNC8R
DEMAND_SYS-622BT-HNC8R
DEMAND_SYS-622BT-HNC8R
  • Form Factor 2U Rackmount
  • Supported CPUs Intel Xeon 6500 P-cores
  • Intel Xeon 6700 E-cores
  • Intel Xeon 6700 P-cores
  • CPU Sockets 8
  • Max Supported Memory
    16 TB  DDR5  ECC Supported
  • Drive Bays Default: 2 front hot-swap 3.5" PCIe 5.0 NVMe/SAS Hot swap 3.5" Drive Bays
  • Power Supply
    3600 W  Titanium  Redundant

Key Applications

  • Hyperconverged Infrastructure
  • Scale-Out File Storage
  • Back-up & Recovery

Key Features

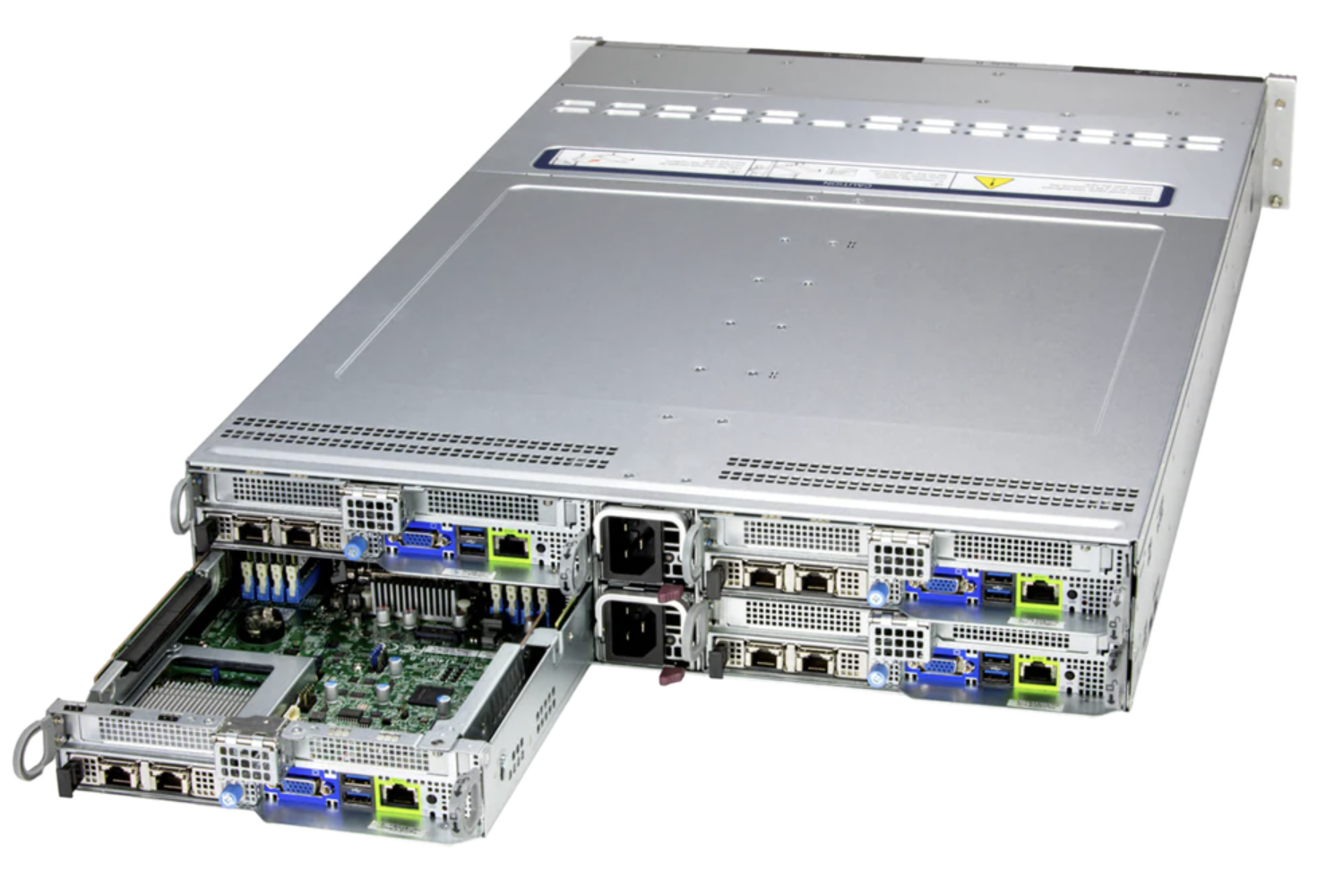

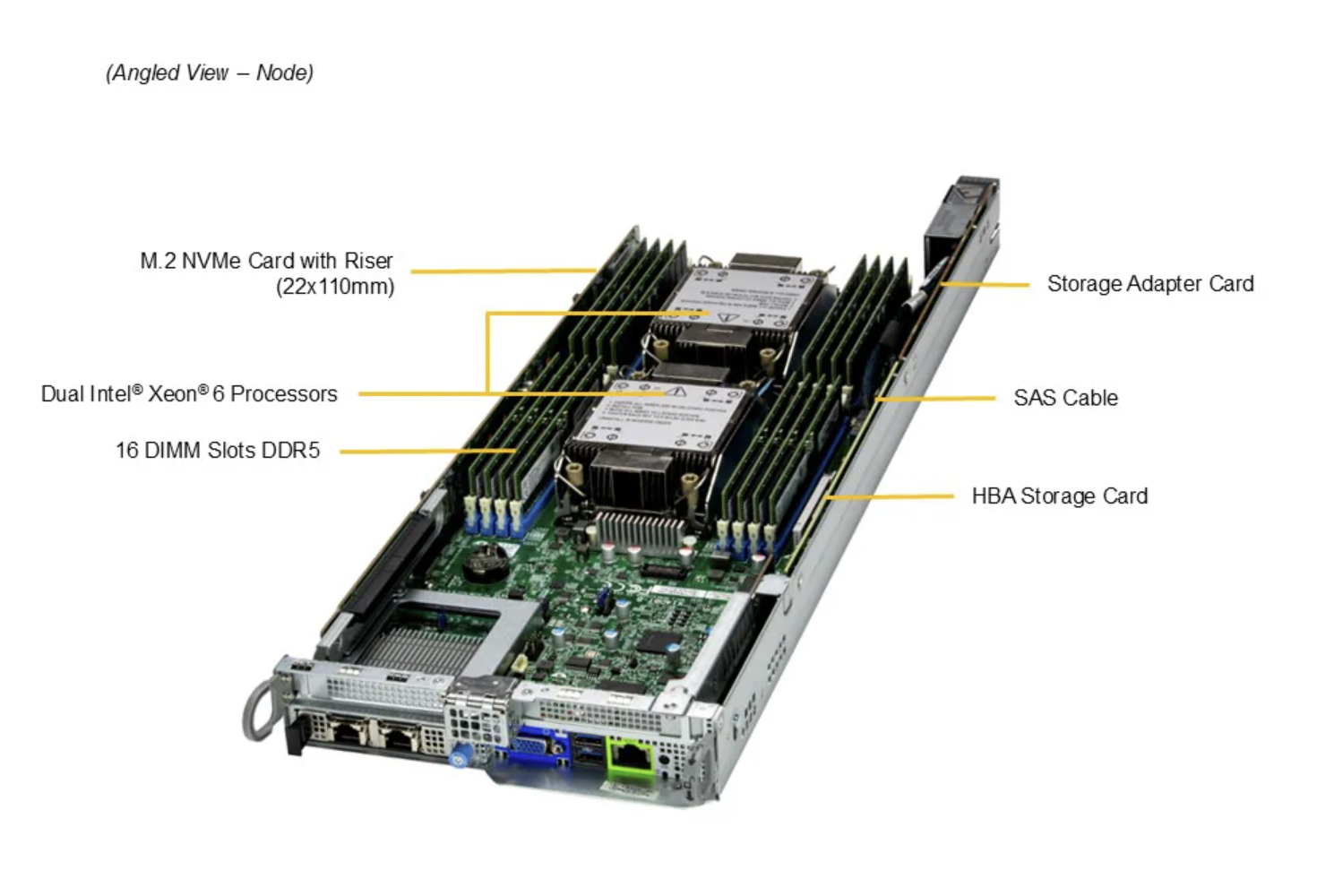

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

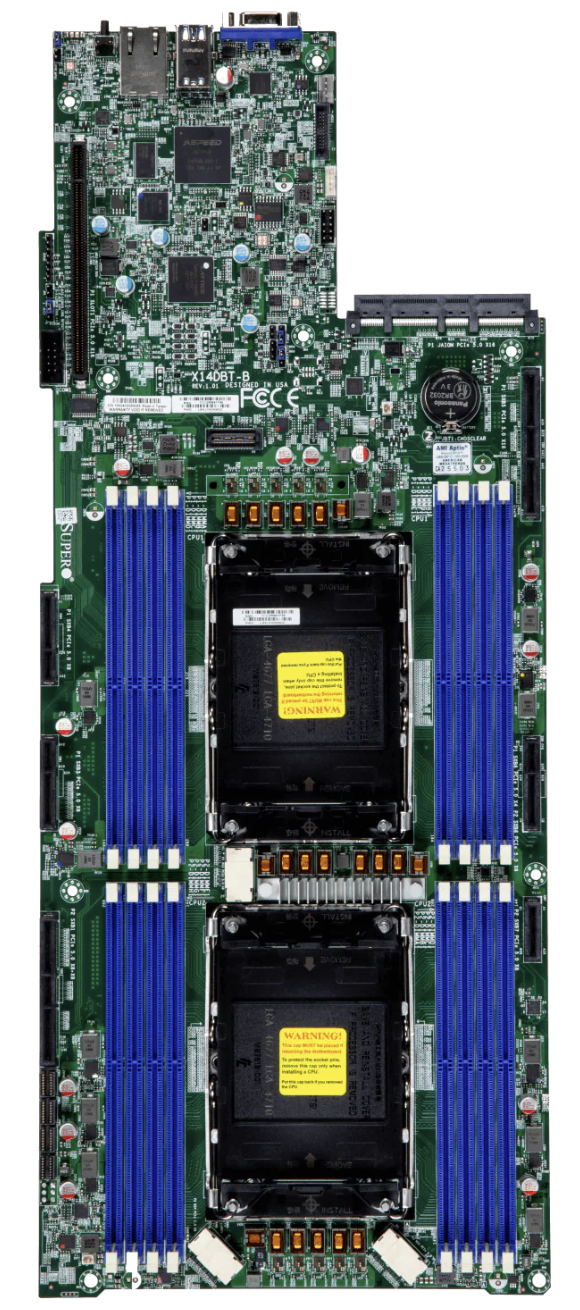

  • Dual Socket E2 Intel® Xeon® 6700 / 6500 series processors with P-cores or 6700 processors with E-cores up to 150W with air cooling or 350W with liquid cooling
  • Single CPU configurations supported while maintaining all expansion slot functionality (see Option A for drive support limitations)
  • Up to 16 DIMMs supporting up to 4 TB DDR5-6400 in 1DPC
  • Flexible networking with OCP 3.0 AIOM slot
  • Up to 2 PCIe 5.0 ×16 LP slots; tool-less support
  • Internal PCIe 5.0 for 2 NVMe M.2 support onboard
  • Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1

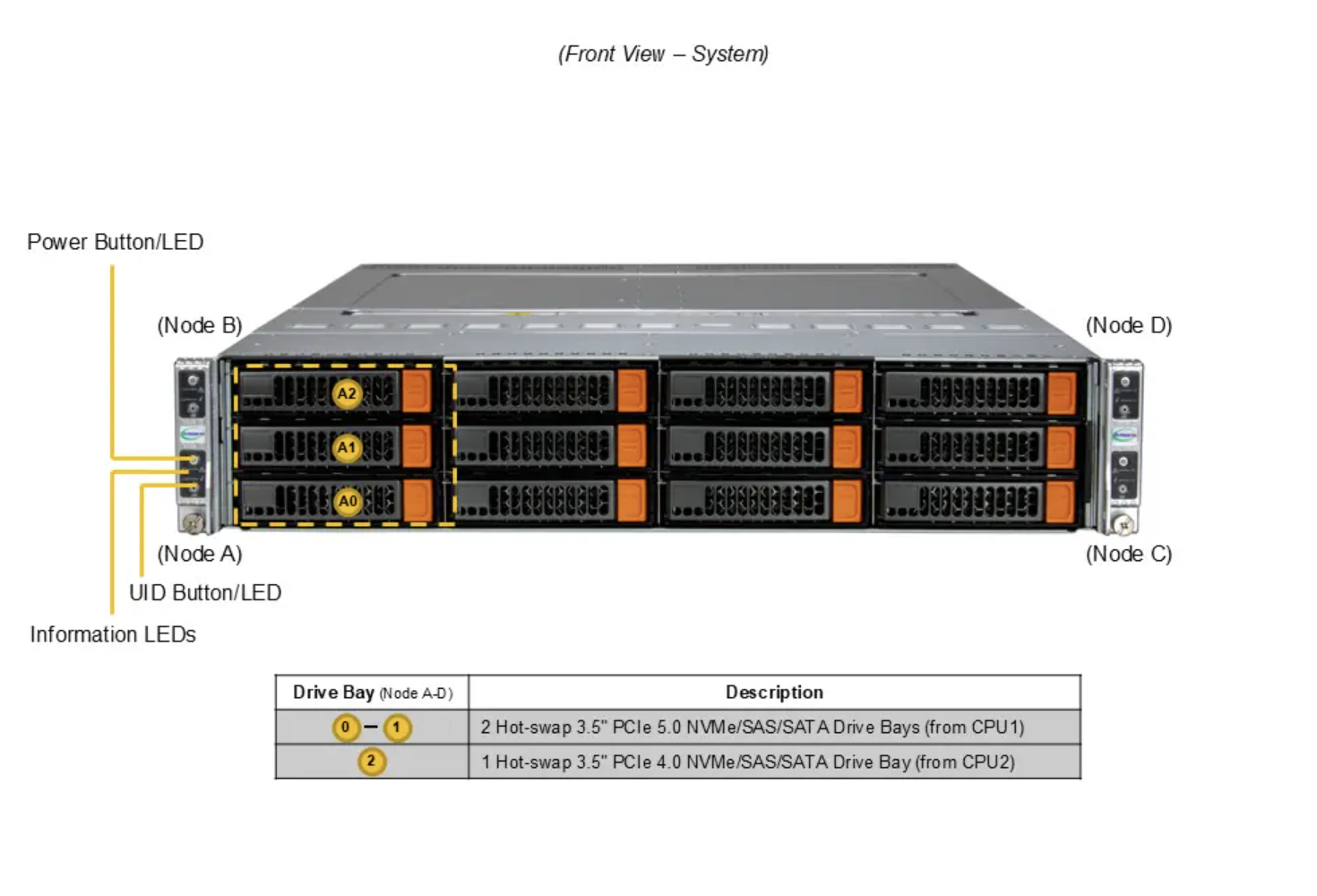

  • Up to 3 front hot-swap 3.5″ NVMe / SAS drive bays
  • Built-in SAS3 support via Broadcom 3808; IT Mode

Request a quote today

Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.

More Specifications

  • Configurable  Configurable by Request
  • Cores up to  144
  • TDP  350 W
  • M.2  2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110) Per Node
  • PCI-e  Default: 2 PCIe 5.0 x16 LP slots Per Node
  • Dimensions  17.68" (449 mm) Width
  • Dimensions  3.47" (88 mm) Height
  • Dimensions  30.5" (774 mm) Depth
  • Product Model  SYS-622BT-HNC8R
  • LAN  1 RJ45 1 GbE
  • USB  2 USB 3.0 Gen2 Type-A ports(Rear) Per Node
  • Video Output  1 VGA port Per Node
  • DIMM Type  RDIMM
  • Chipset  System on Chip
  • SAS Controllers  SAS (12Gbps) via Broadcom® 3808
  • Operating Temperature  10°C ~ 35°C (50°F ~ 95°F)
