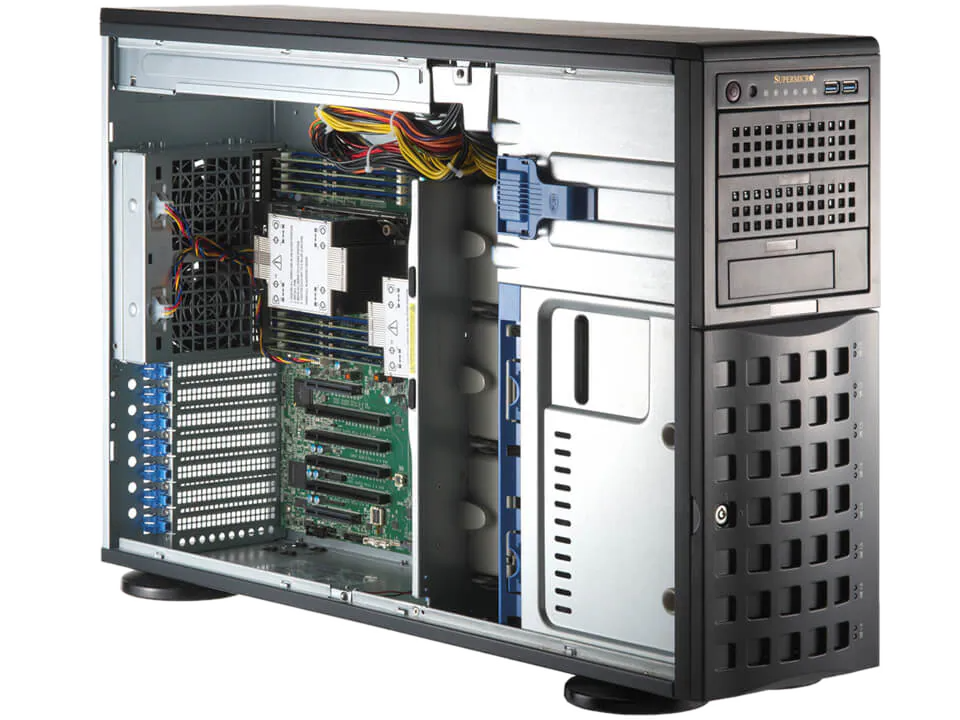

Mainstream SuperServer SYS-741P-TRT
- Form Factor Tower
- Supported CPUs Intel Xeon Scalable 4th Gen
- Intel Xeon Scalable 5th Gen
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
- Drive Bays Default: 4 front hot-swap 3.5" NVMe/SAS/SATA Hot swap 3.5" Drive Bays
-
Power Supply
1200 W Titanium Redundant
Key Applications
- Virtualization
- Enterprise Server
- Application and Data Serving
- Compute Intensive Applications
Key Features

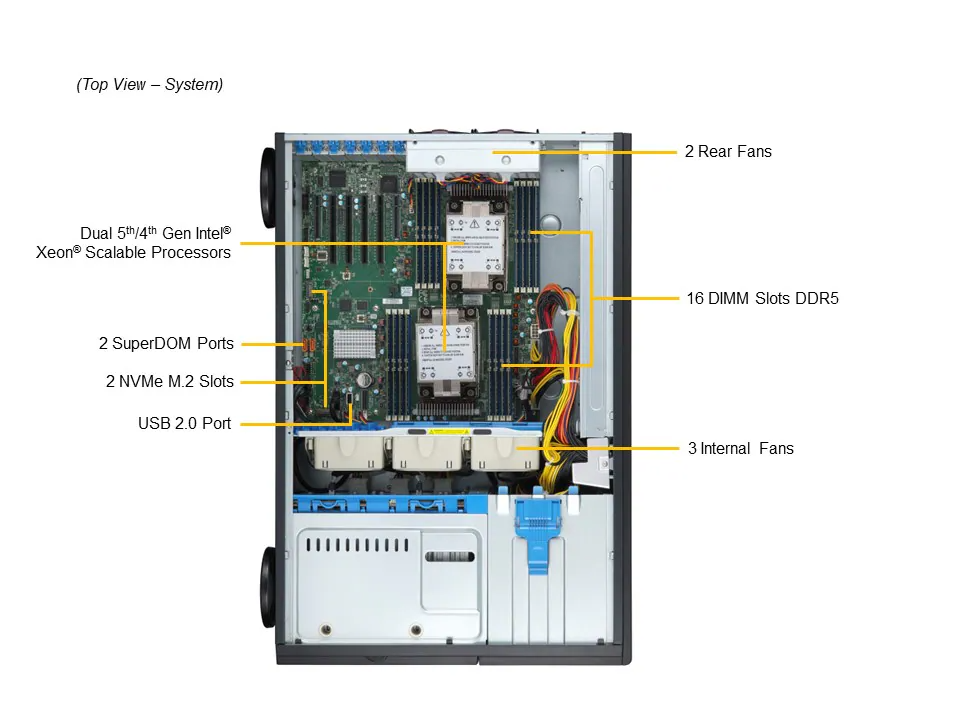

- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors, supports up to 300W TDP.
- 16 DIMM slots, up to 4TB DDR5-5600MHz/4800MHz ECC Registered RDIMM.

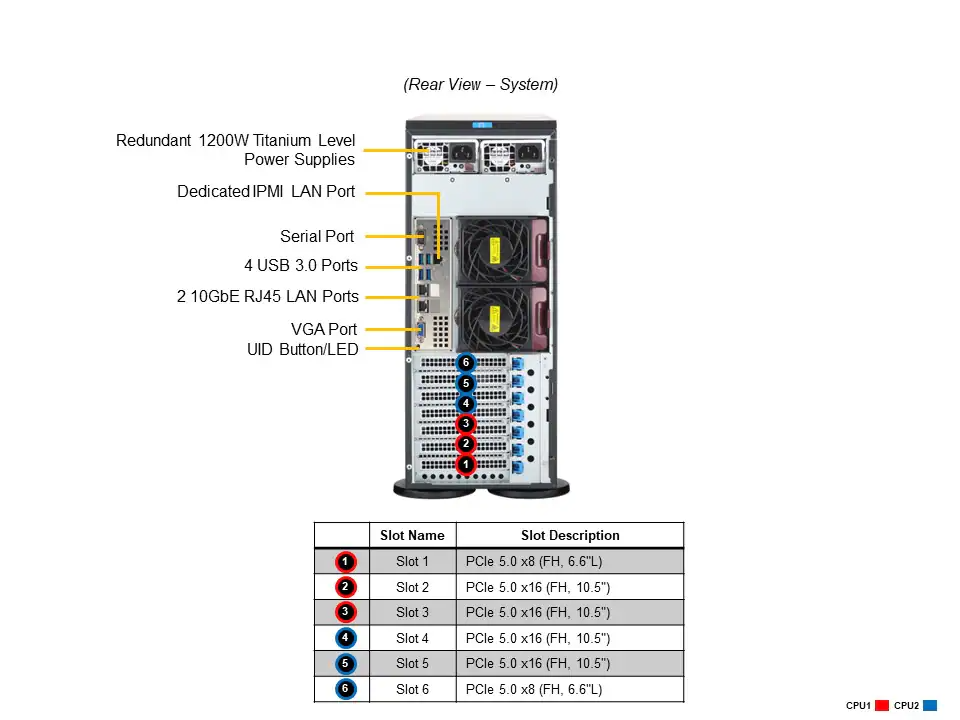

- 4 PCIe 5.0 x16 full-height slots, 2 PCIe 5.0 x8 full-height slots.
- 1200W Redundant Titanium Level Power Supplies.
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 48
- TDP 300 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 2 PCIe 5.0 x8 FHFL slots
- Dimensions 17.8" (452 mm) Height
- Dimensions 25.5" (647 mm) Depth
- Dimensions 7" (178 mm) Width
- Product Model SYS-741P-TRT
- LAN 2 RJ45 10 GbE
- SATA Ports Default: 8 NVMe / SAS / SATA
- USB 4 USB 3.0 ports(rear)
- Video Output 1 VGA
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
