IoT SuperServer SYS-E403-14B-FRN2T
- Form Factor IoT
- Supported CPUs Intel Xeon 6500 P-cores
- Intel Xeon 6700 E-cores
- Intel Xeon 6700 P-cores
- CPU Socket 1
-
Max Supported Memory
2 TB DDR5 ECC Supported
-
Power Supply
800 W Platinum Redundant
Key Applications
- Multi-Access Edge Computing (MEC)
- Universal Customer Premise Equipment (uCPE)
- Industrial Automation
- Artificial Intelligence (AI) on Edge
- Machine Learning (ML)
- Smart Retail / Medical Expert Systems
Key Features

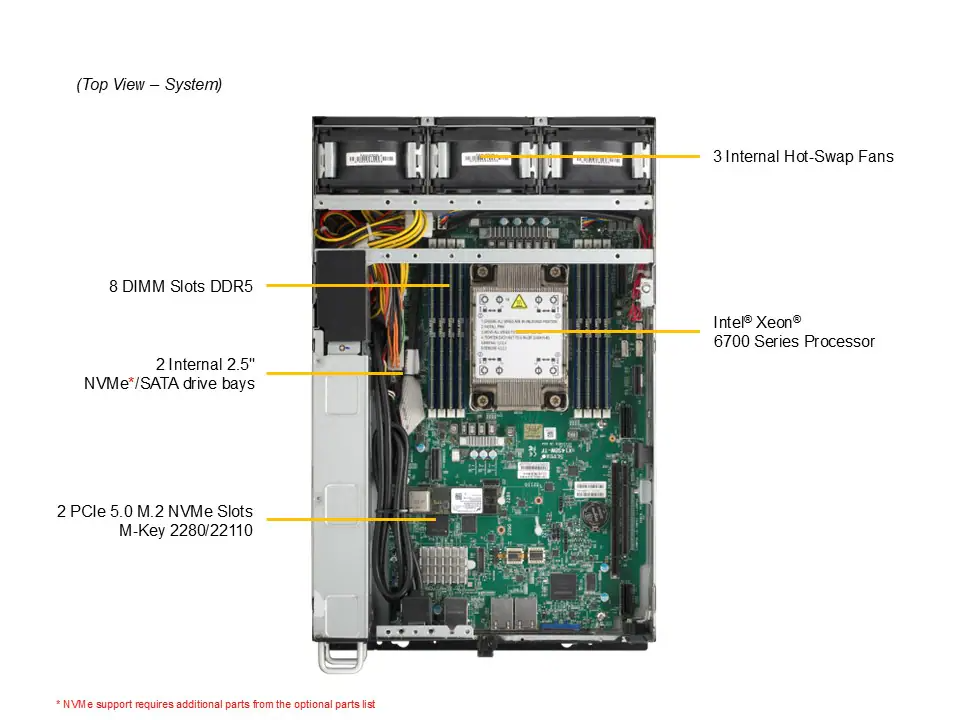

- Processor: Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, up to 300W with air cooling
- Memory: Up to 8 DIMMs supporting up to 2TB DDR5-6400MT/s RDIMM

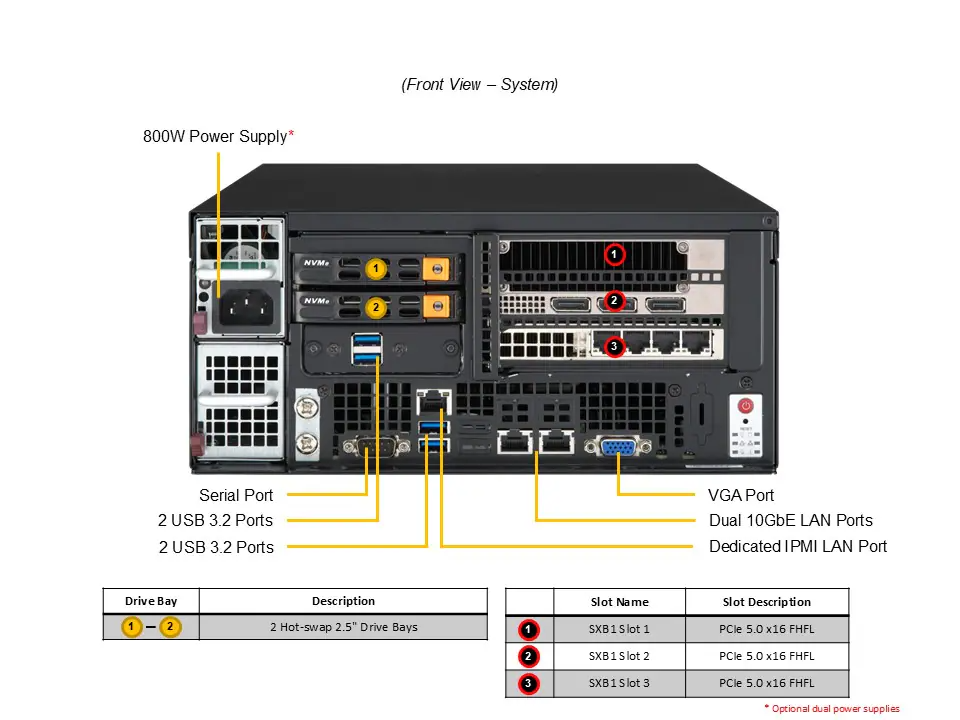

- Networking: 2 RJ45 10GBASE-T
- Expansion: Up to 3 PCIe 5.0 x16 FHFL slots
- Storage: Up to 2 front hot-swap 2.5" NVMe + 2 internal fixed 2.5" SATA drive bays
- Power: 1 Redundant 800W Platinum Level power supply

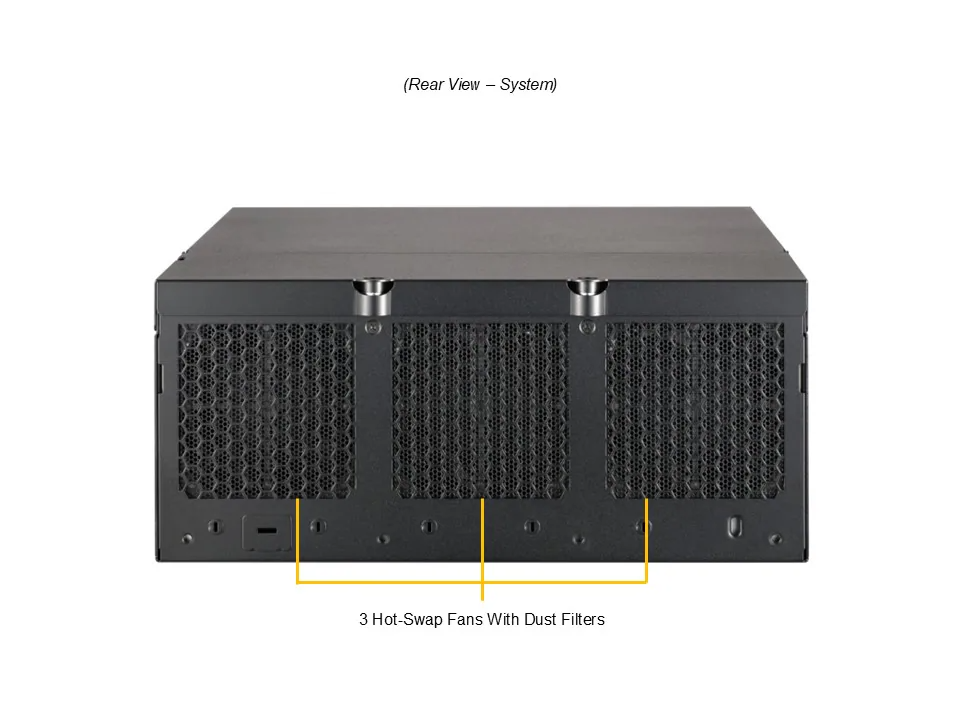

- Design: Fan-based Embedded chassis with 16"; (406.4mm) depth
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- TDP 300 W
- M.2 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- PCI-e 3 PCIe 5.0 x16 FHFL slots
- Dimensions 10.5" (266.7 mm) Width
- Dimensions 16" (406.4 mm) Depth
- Dimensions 4.62" (117.348 mm) Height
- Product Model SYS-E403-14B-FRN2T
- LAN 2 RJ45 10GBASE-T with Intel® X550 RJ45 10GBASE-T
- NVMe 2 NVMe
- USB 4 USB 3.2 Gen1 Type-A ports(Front)
- Video Output 1 VGA port(Front) VGA port
- DIMM Type RDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
