IoT SuperServer SYS-E50-14AM-L
- Form Factor IoT
- Supported CPU Intel Processor N97
- CPU Socket 1
-
Max Supported Memory
16 GB DDR5 ECC Supported
-
Power Supply
40 W
Key Applications
- Industrial / Automation
- Healthcare
- Digital Signage Kiosk, Interactive Info System
- Retail
Key Features

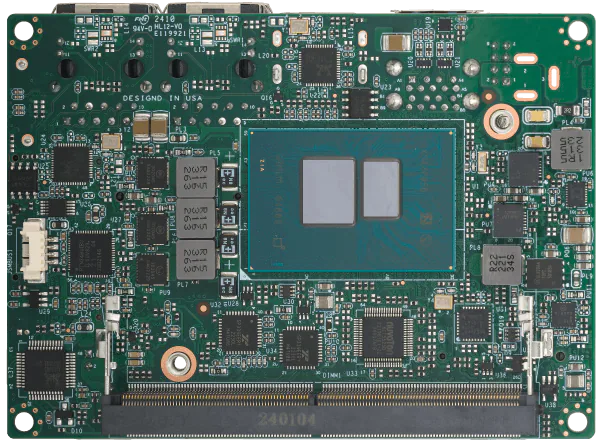

- Processor: Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
- Memory: DDR5-4800MT/s 1 DIMM max 16GB
- Expansion: 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042), 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
- Networking: 2 RJ45 2.5GbE (Realtek)

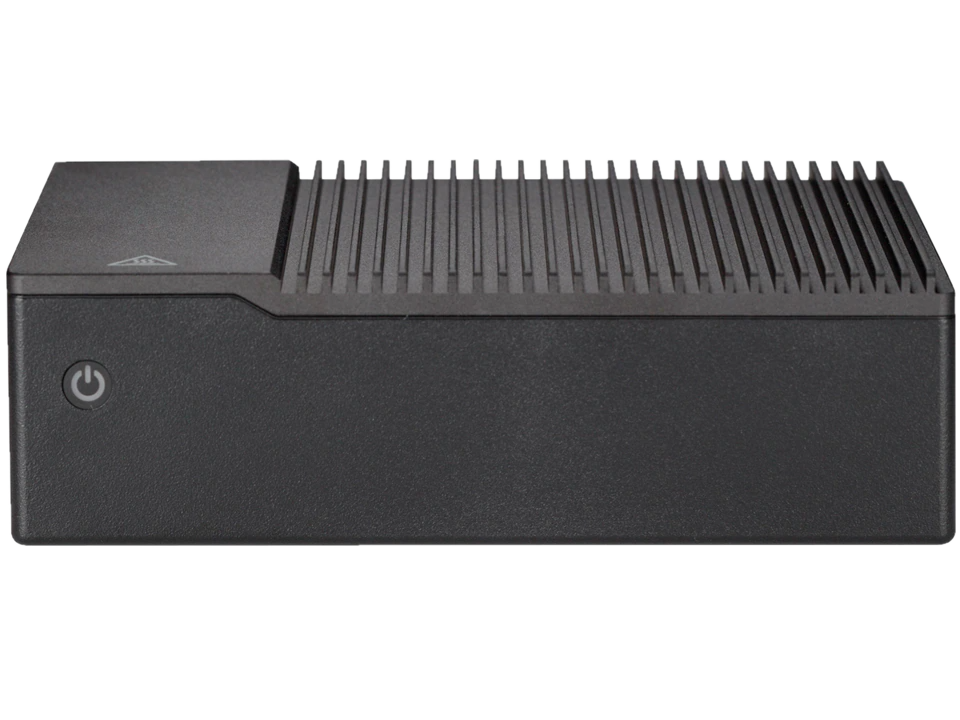

- Design: Fanless Embedded chassis with 4.64" (118mm) depth

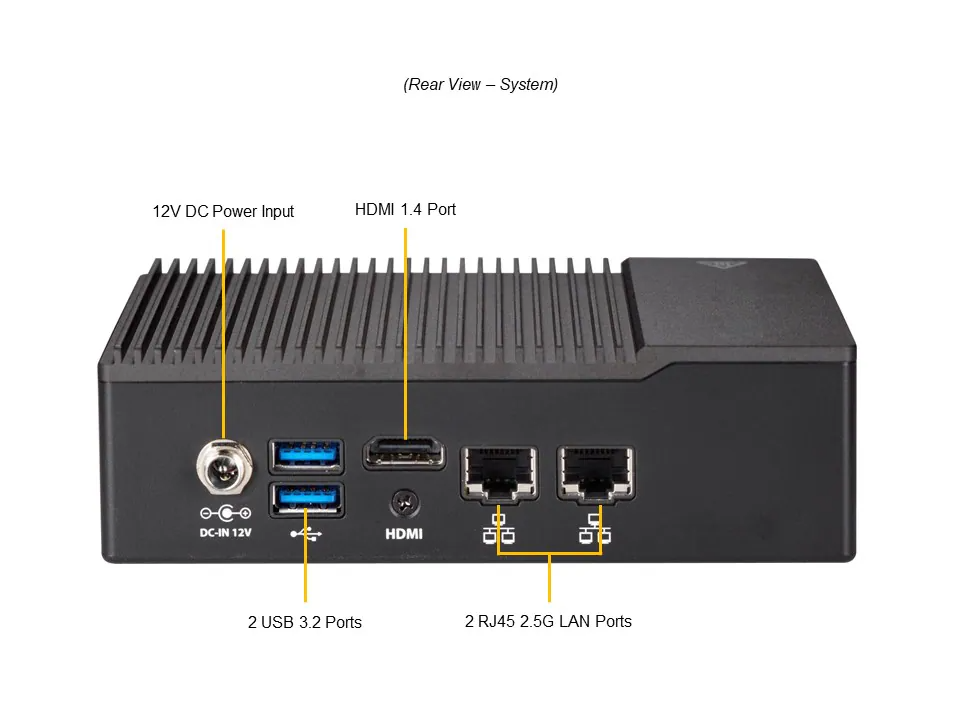

- I/O: 2 USB 3.2 Gen2 Type-A ports (Rear), 1 HDMI 1.4 port (Rear)
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 4
- TDP 7 W
- M.2 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
- M.2 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
- Dimensions 1.72" (44 mm) Height
- Dimensions 4.64" (118 mm) Depth
- Dimensions 5.82" (148 mm) Width
- Product Model SYS-E50-14AM-L
- LAN 2 RJ45 2.5GbE
- SATA Ports 2 SATA
- USB 2 USB 3.2 Gen2 Type-A ports(Rear)
- Video Output 1 HDMI 1.4 port(Rear) HDMI 1.4 port
- DIMM Type SO-DIMM
- Chipset System on Chip
- SATA Controller SATA
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
